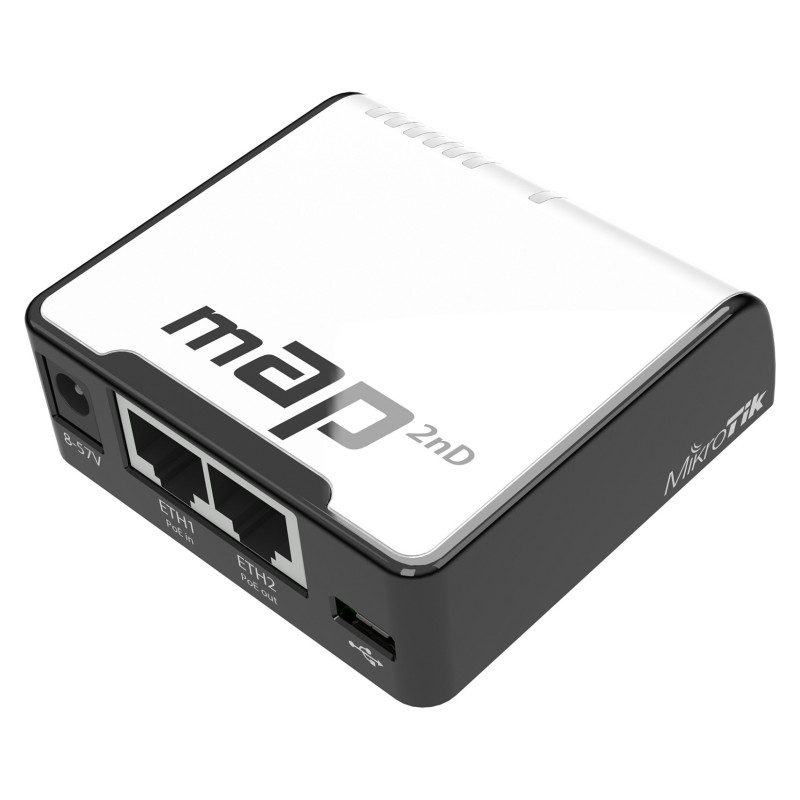

Mikrotik mAP

Mikrotik mAP. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: Black, White

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Features

Feature: 2.4 GHz
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Feature: Auto MDI/MDI-X

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB connector type: USB Type-B
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Output voltage: 24 V
Output current: 0.8 A

Design

Placement: Table
Product colour: Black, White
LED indicators: Yes

Antenna

Antenna gain level (max): 1.2 dBi

Performance

Feature: Built-in processor
Flash memory: 16 MB
Internal memory: 64 MB
Operating system installed: Linux

Weight & dimensions

Width: 68 mm
Depth: 68 mm
Height: 19 mm

Packaging content

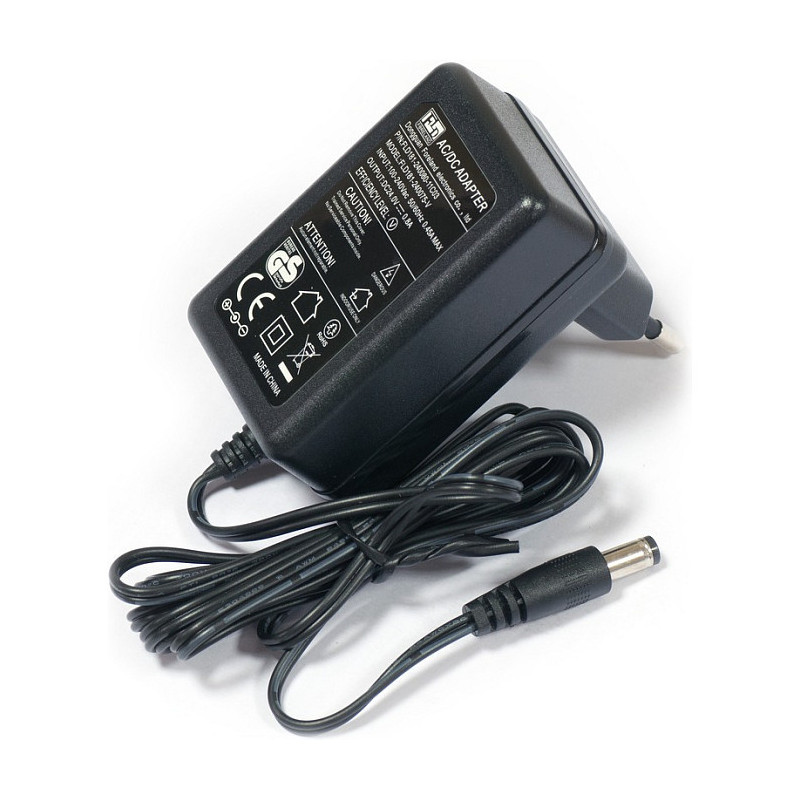

Feature: AC adapter included

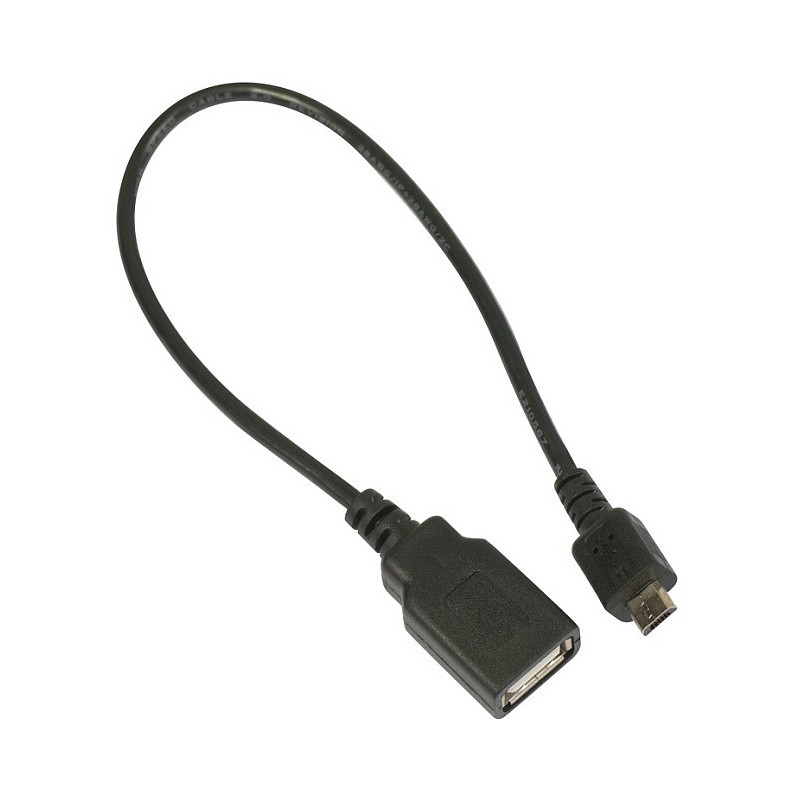

Cables included: USB

Operational conditions

Operating relative humidity (H-H): -10 - 70%

Logistics data

Harmonized System (HS) code: 85176990
