Mikrotik EC25-EU&KNE gateway / valdiklis

Mikrotik KNOT Embedded LTE4. Product colour: Grey, Mounting type: DIN-rail. Antenna type: Internal, Antenna connector type: SMA, Mean time between failures (MTBF): 100000 h. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A7. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Mobile network generation: 4G. SIM card type: NanoSIM + eSIM

Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines - perfect for all kinds of industrial automation.

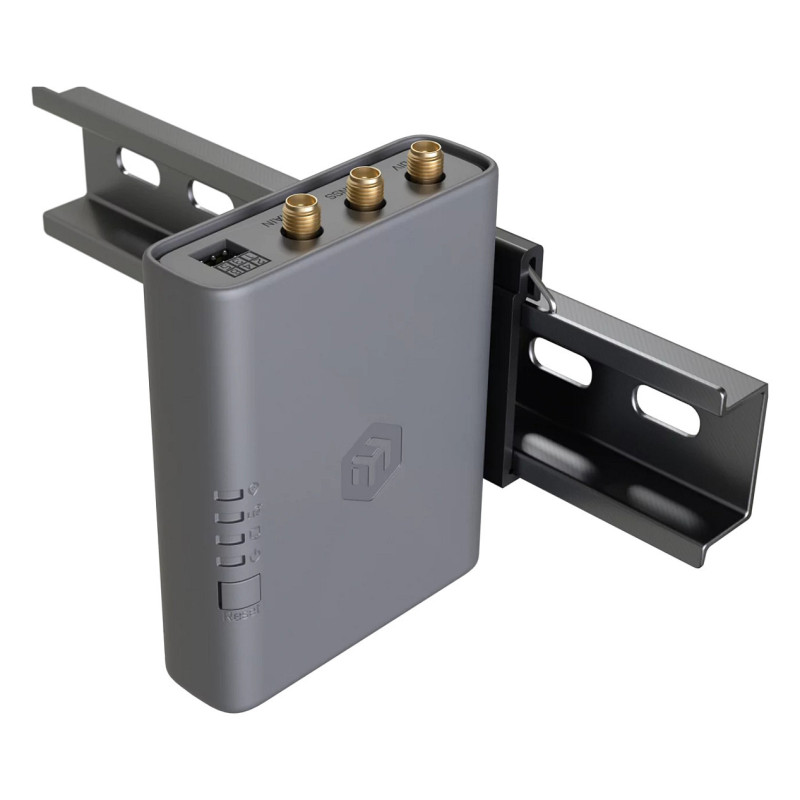

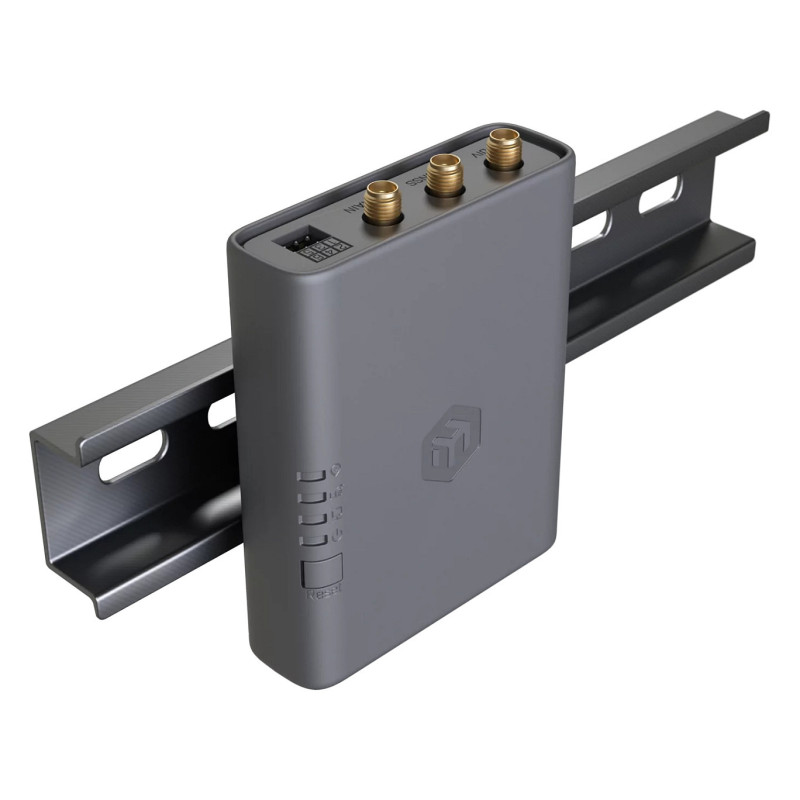

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.

Use it as a primary gateway, a backup link, or an IoT data collection node - everything is powered by RouterOS for maximum flexibility.

Sensor-ready GPIO header
For simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant.

Powered by RouterOS
Full networking stack, VPNs, firewall, SMS control and notifications, automation, remote management, and so much more!

Whether you're building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It's easy to integrate, easy to deploy, and built to perform in harsh environments - from smart city deployments to industrial automation and mobile tracking.

Design

Product colour: Grey
Mounting type: DIN-rail
LED indicators: Yes

Features

Antenna type: Internal
Antenna connector type: SMA
Feature: GPS (satellite)
Feature: Short Message Service (SMS)
Mean time between failures (MTBF): 100000 h

Performance

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A7
Processor frequency: 1200 MHz
Number of processors installed: 1
Internal memory: 256 MB
SSD capacity: 512 GB

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: Bluetooth
Bluetooth version: 5.1
Feature: Bluetooth Low Energy (BLE)
4G LTE category: 4
Mobile network generation: 4G
Data network: 2G, 3G, 4G, LTE
4G FDD-LTE bands supported: 800,900,1800,2100,2600,700 MHz
4G TDD-LTE bands supported: 2600,2500,2300 MHz

Ports & interfaces

Feature: SIM card slot
SIM card type: NanoSIM + eSIM
Number of simultaneous SIM cards: 1
Ethernet LAN (RJ-45) ports: 1

Management features

Management platform: RouterOS v7

Power

Power consumption (typical): 7 W
Input voltage: PoE 12-57, USB-C 5
Feature: Power over Ethernet (PoE)

Packaging content

Feature: AC adapter included

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Certificates

Compliance certificates: CE, EAC, RoHS
