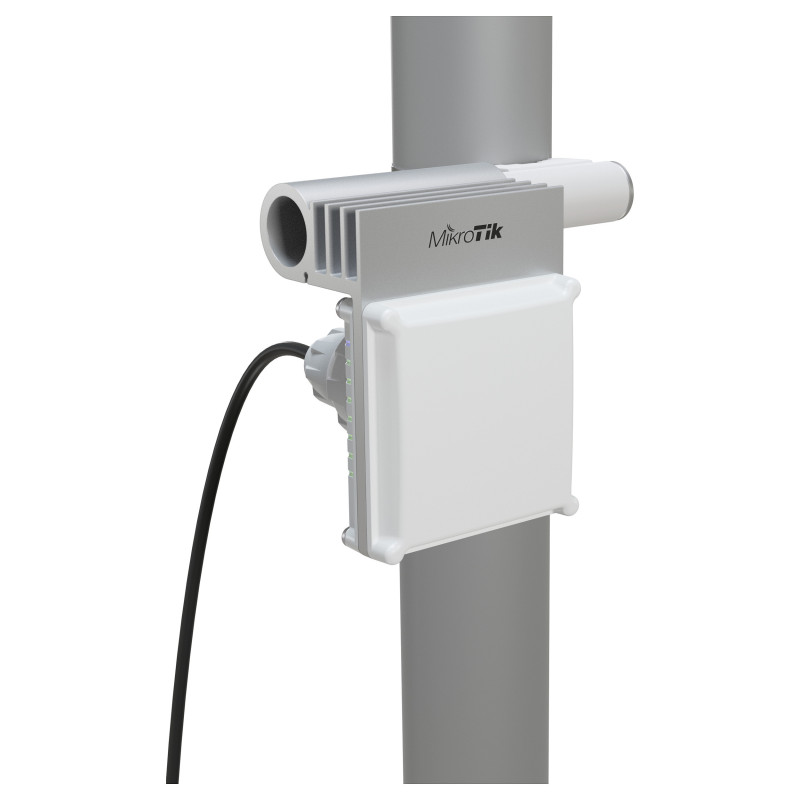

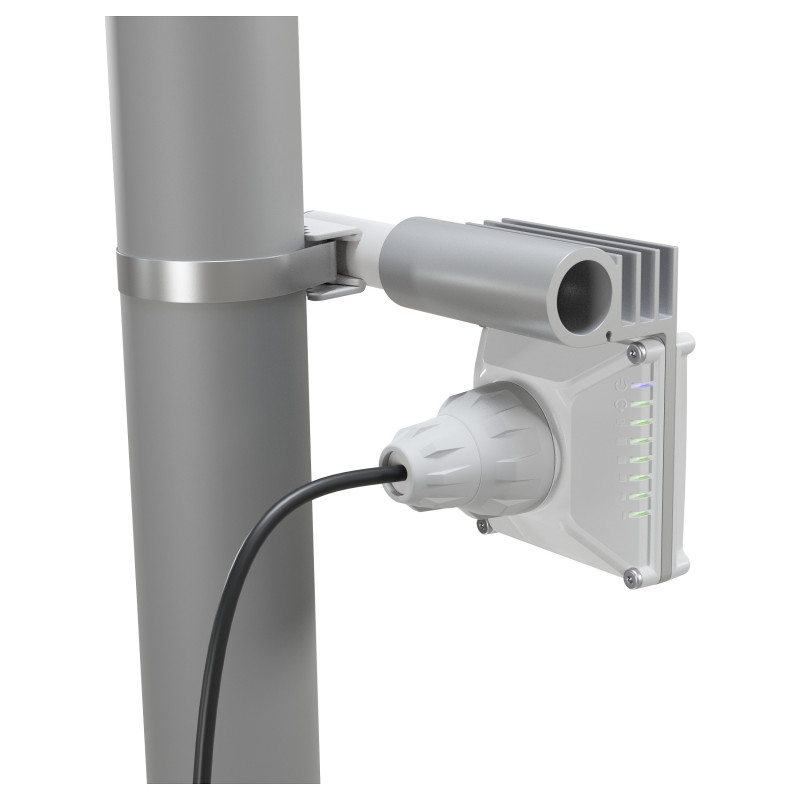

Mikrotik CubeSA 60Pro kintamosios srovės tinklo antena

Mikrotik CubeSA 60Pro ac. Antenna gain level (max): 11.5 dBi, Frequency band: 5 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at. Antenna type: Sector antenna, Maximum operating distance: 800 m. Power source type: DC, PoE, Power consumption (max): 13 W, Input voltage: 18 - 48 V. Certification: CE, FCC, IC, EAC, ROHS. Width: 115 mm, Depth: 211 mm, Height: 90 mm

A powerful sector antenna to connect multiple 60 GHz devices. Quick and easy networking for all kinds of pop-up events and distances up to 800m.

Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level - with the 802.11ay standard for even higher distances, stability, speed, and convenience.

If you need to connect multiple devices - take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location - the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

Forget about downtime with the automatic 5 GHz backup connection

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That's why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

More durability, less unwanted attention

We have upgraded the enclosure to feature a strong metal base - for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

Performance

Frequency band: 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Feature: Built-in processor
Processor model: IPQ-4019
Processor frequency: 716 MHz
Internal memory: 256 MB
Flash memory: 64 MB
Antenna gain level (max): 11.5 dBi

Features

Antenna type: Sector antenna
Maximum operating distance: 800 m

Power

Power source type: DC, PoE
Power consumption (max): 13 W
Input voltage: 18 - 48 V

Certificates

Certification: CE, FCC, IC, EAC, ROHS

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 115 mm
Depth: 211 mm
Height: 90 mm
