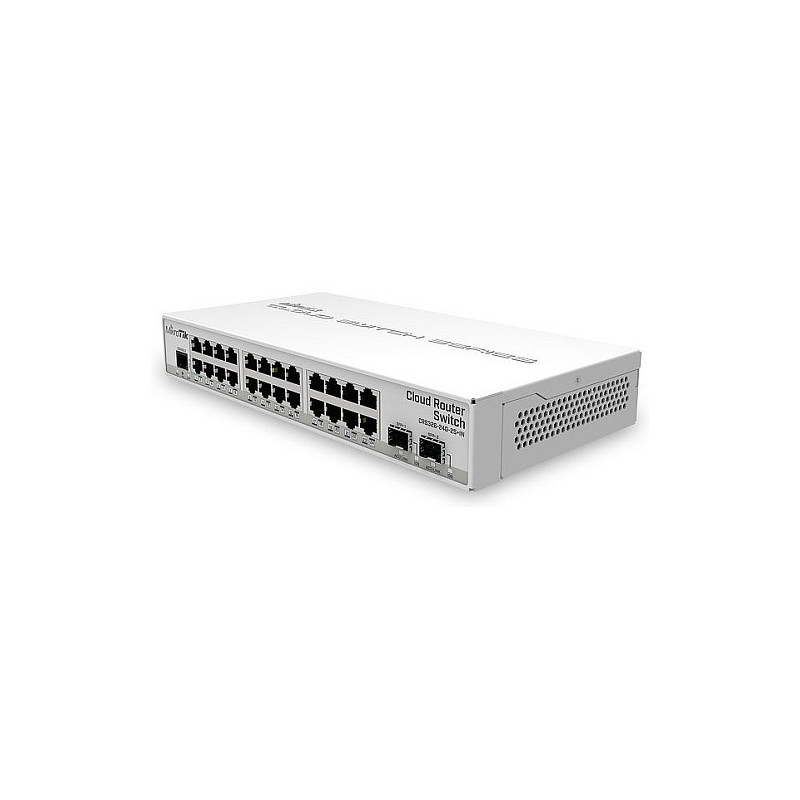

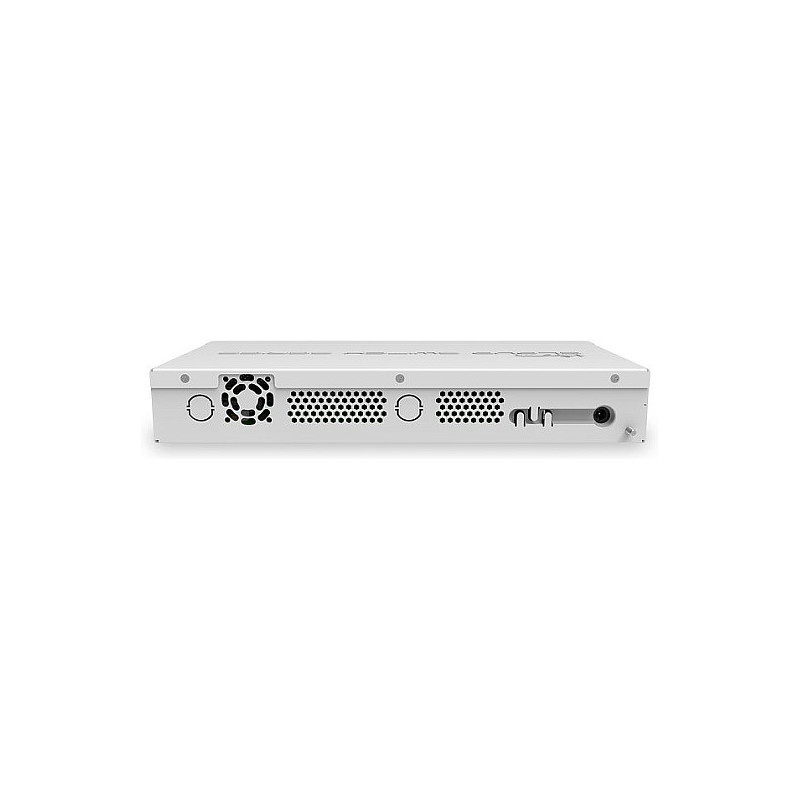

Mikrotik CRS326-24G-2S+IN tinklo jungiklis

Mikrotik CRS326-24G-2S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. DC input voltage: 10 - 30 V. Power over Ethernet (PoE). Rack mounting

A home network setup doesn't have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable - we are keeping the price on par with the previous generation desktop switches!

Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake - this small switch has all the power and features of its bigger rackmount analogue - the CRS326-24G-2S+RM, nothing has been removed!

CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.

Management features

Switch type: Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 2

Network

Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Feature: Rate limiting
Ethernet LAN data rates: 1000 Mbit/s
Feature: VLAN support

Security

Feature: MAC address filtering

Design

Feature: Rack mounting
Product colour: White

Performance

Feature: Built-in processor
Memory type: DDR3-SDRAM
Internal memory: 512 MB
Flash memory: 16 MB

Power

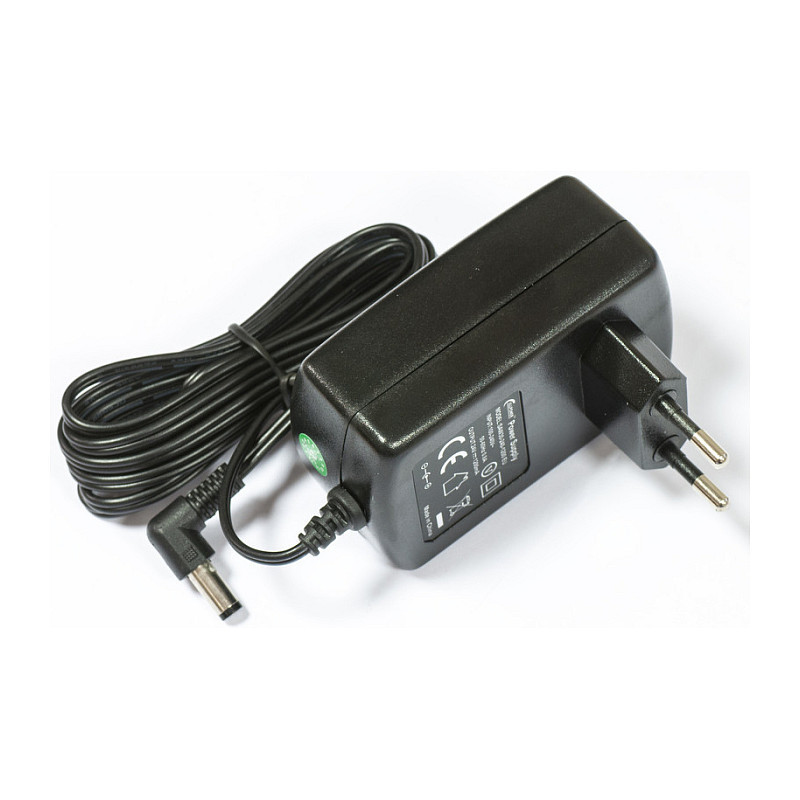

Feature: Power supply included
Number of power supply units: 2
DC input voltage: 10 - 30 V
Input current: 1.2 A
Power consumption (max): 21 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
Power over Ethernet (PoE) voltage: 30 V

Operational conditions

Operating temperature (T-T): -40 - 60 °C

Weight & dimensions

Width: 285 mm
Depth: 144 mm
Height: 44 mm

Certificates

Certification: CE/RED, EAC, ROHS
