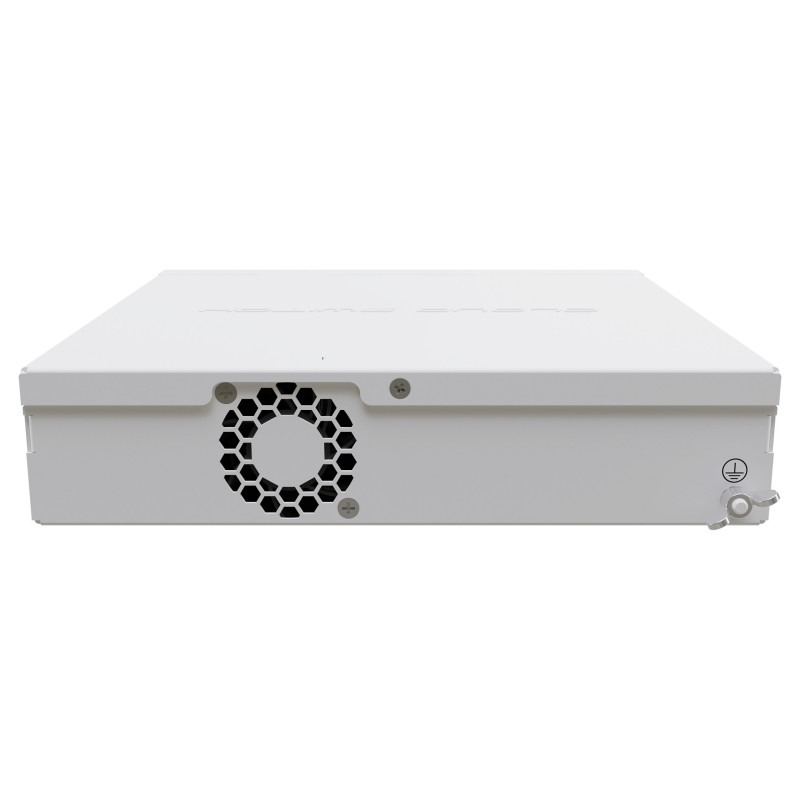

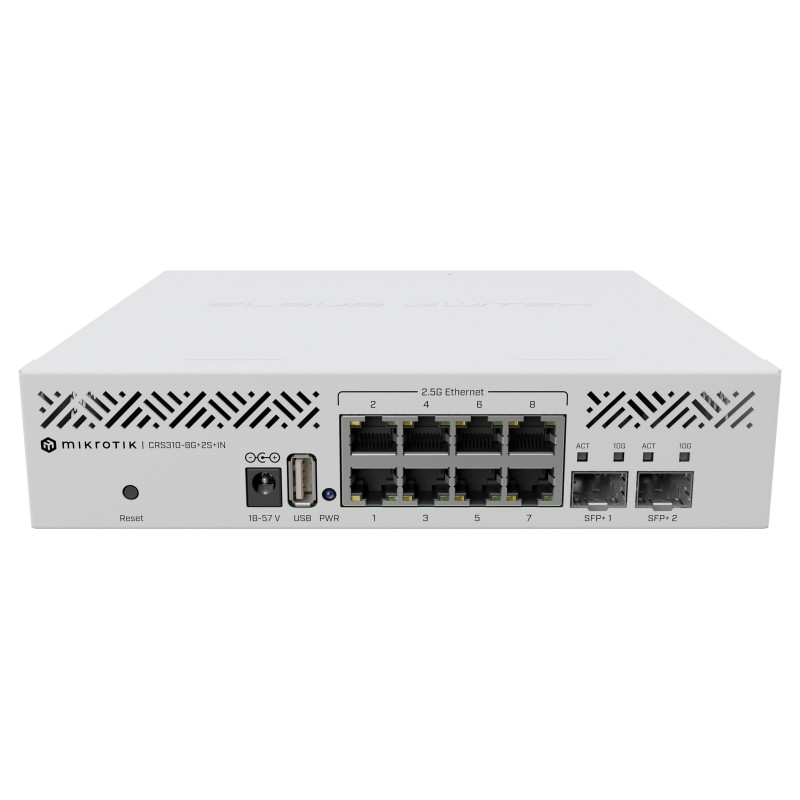

Mikrotik CRS310-8G+2S+IN: L3 išmanusis komutatorius

Mikrotik CRS310-8G+2S+IN: L3 Smart Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. DC input voltage: 18 - 57 V. Rack mounting, Form factor: 1U

The world of networking is on the move. Even small offices are shifting from Gigabit connections to the lightning-fast realm of 2.5 Gigabit connectivity. With CRS310-8G+2S+IN, we aim to give you the tools to outpace your competition with a strong combination of eight 2.5 Gigabit Ethernet ports and two 10 Gigabit SFP+ ports in a compact, powerful package! Furthermore, these SFP+ cages support multiple data rates: 1G, 2.5G, and 10G. So you can use this switch as a 10x 2.5G switch, if needed. Classic MikroTik flexibility!

The amazing Marvell 98DX226S switch-chip and integrated dual-core ARM CPU can handle the full potential of RouterOS v7. Run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more! You can even do some hardware offloaded Layer-3 routing.

There are multiple mounting options. You can easily install the CRS310-8G+2S+IN in a standard 19" rack using the provided rackmount ears. Another option is to get the RMK-2/10 accessory set, which allows you to mount two CRS310 units within the same 1U 19" rack space or mount it in a 10" rack. The choice is yours!

Management features

Switch type: Managed
Switch layer: L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 2
USB Type-A ports quantity: 1

Network

Feature: 10G support

Design

Feature: Rack mounting
Form factor: 1U
Product colour: White
International Protection (IP) code: IP20
Number of fans: 1 fan(s)

Performance

Operating system installed: RouterOS
Feature: Built-in processor
Processor model: 98DX226S
Processor frequency: 800 MHz
Internal memory: 256 MB
Flash memory: 32 MB
Mean time between failures (MTBF): 200000 h

Power

Power source: DC
Feature: Power supply included
DC input voltage: 18 - 57 V
Power consumption (max): 34 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C

Weight & dimensions

Width: 200 mm
Depth: 206.1 mm
Height: 44 mm

Certificates

Certification: CE, EAC, ROHS
