Mikrotik CRS305-1G-4S+IN tinklo jungiklis

Mikrotik CRS305-1G-4S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 12 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)

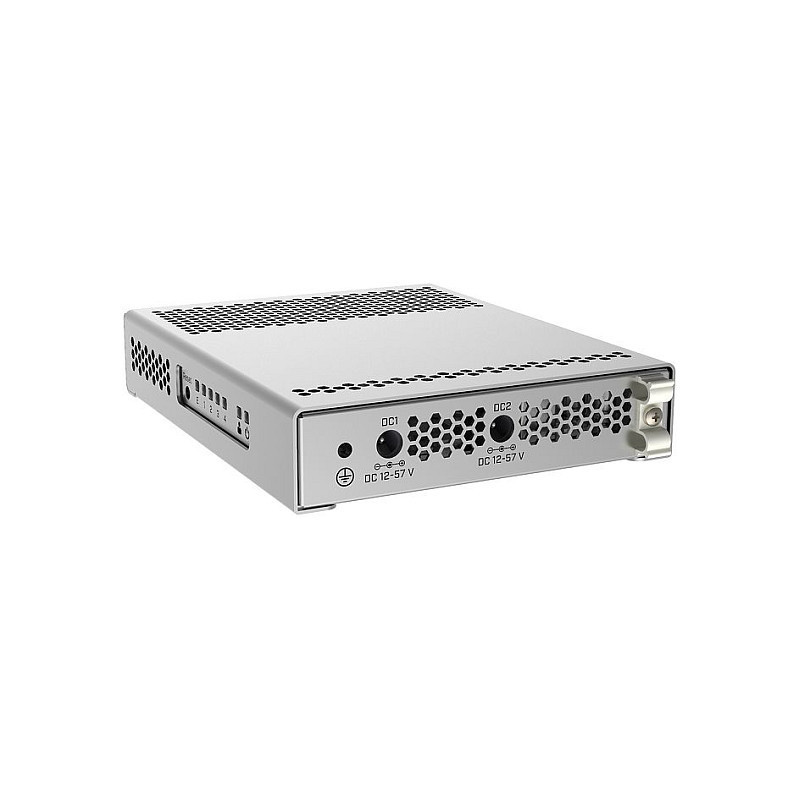

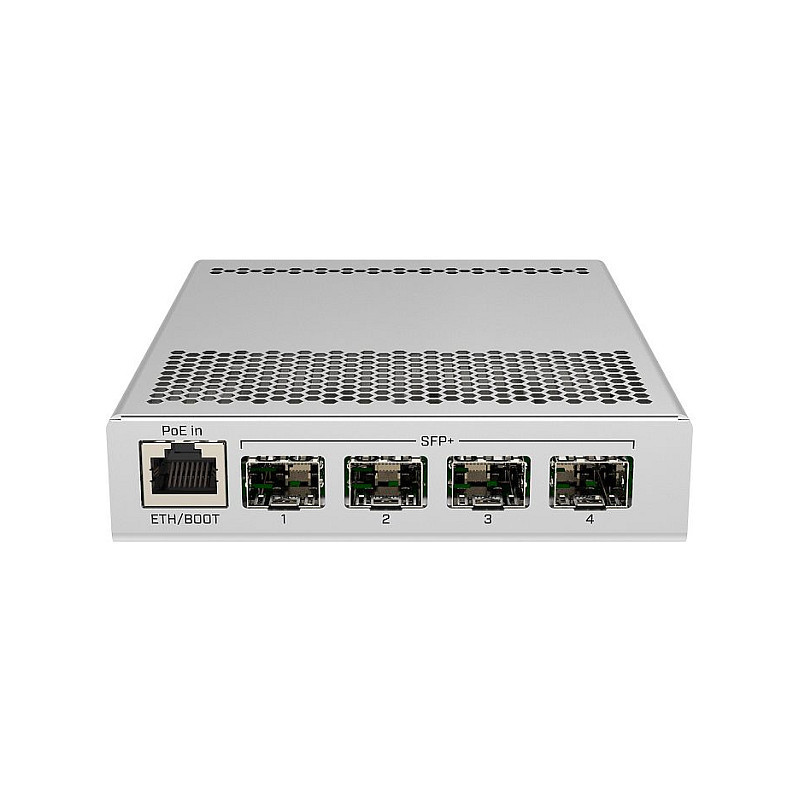

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.

The device has a "Dual boot" feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.

Management features

Switch type: Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: 10G support

Design

Product colour: White

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Internal memory: 512 MB
Flash memory: 16 MB

Power

DC input voltage: 12 - 57 V
Power consumption (typical): 10 W
Power consumption (max): 18 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 141 mm
Depth: 115 mm
Height: 28 mm

Logistics data

Harmonized System (HS) code: 85176990
