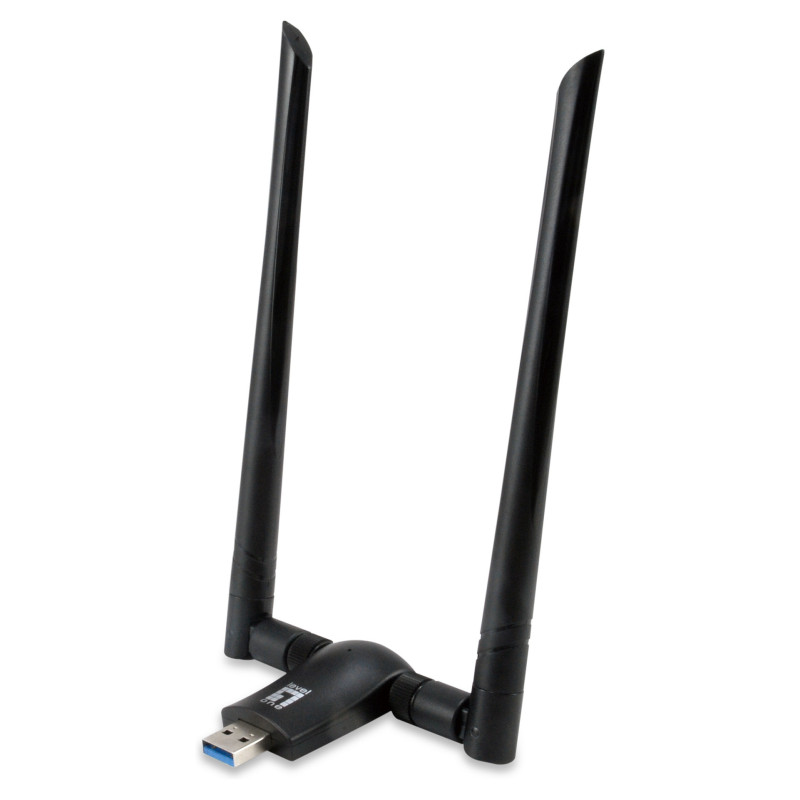

„LevelOne WUA-1810E“ tinklo plokštė

LevelOne AC1200 Dual Band Wireless USB Network Adapter, 1-13 Channel. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black

The LevelOne WUA-1810E is a high performance, costeffective dual-band wireless USB network adapter, compliant with the latest wireless technology IEEE 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), producing a transmission rate of up to 300/867Mbps on the 2.4/5 GHz band, with no radio interference and a faster, more stable wireless transmission, that produces high-throughput wireless speed on the 2.4/5 GHz band.

This means that you can enjoy clear, smooth HD video streaming, faster websites and services, lag-free online gaming, and clear audio and video calls over the Internet. Combined with a MU-MIMO AP like the WAP-8123, the WUA-1810E is very suitable for high-definition home entertainment, small business users, and sophisticated, high-demand wireless networking where speed and reliability are of optimum importance.

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 867 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 1,2,5.5,6,9,11,12,18,24,36,48,54,130,300,867 Mbit/s
Modulation: DSSS, OFDM
Security algorithms: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA-TKIP, WPA2-PSK, WPA2-TKIP
Channels quantity (EU): 13 channels
Bandwidth (first): 2.4 GHz
Bandwidth (second): 5 GHz
Maximum operating distance: 10 m

Design

Product colour: Black
Antenna: Yes
Antenna design: External
Chipset: RTL8812BU
Feature: Plug and Play
LED indicators: Status
Country of origin: China
Receiver sensitivity: 11n:-68dBm@130M-68dBm@108M 11g:-69dBm@54M 11b:-85dBm@11M11ac:-59dBm@867M
Certification: CE, LVD, RED

Power

Input current: 0.5 A
Output voltage: 5 V

System requirements

Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 26.5 mm
Depth: 62.5 mm
Height: 14.6 mm
Weight: 110 g

Packaging data

Package type: Box
Package width: 103 mm
Package depth: 206 mm
Package height: 39 mm
Package weight: 170 g

Packaging content

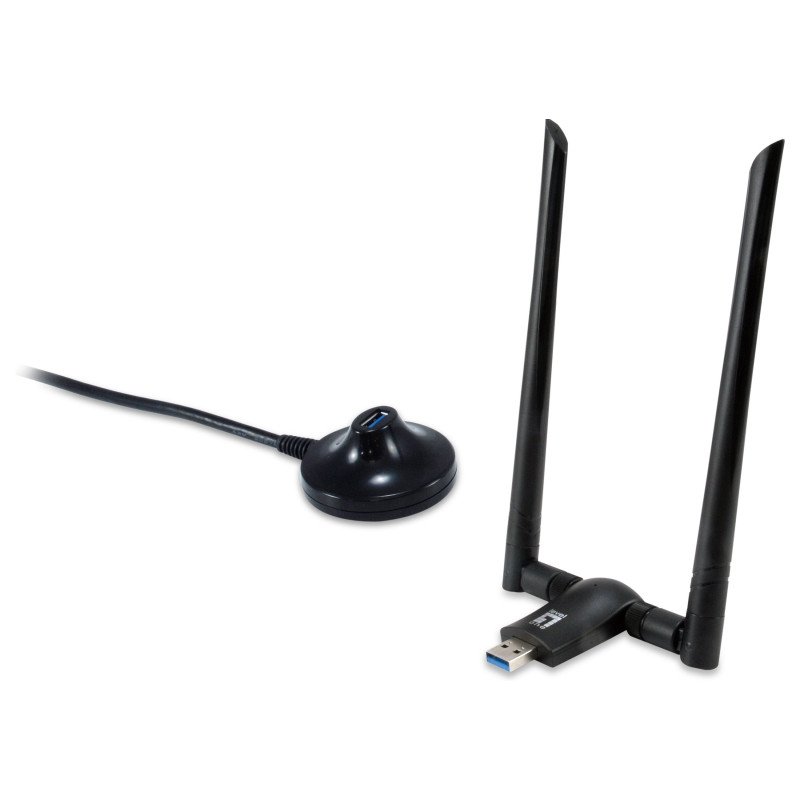

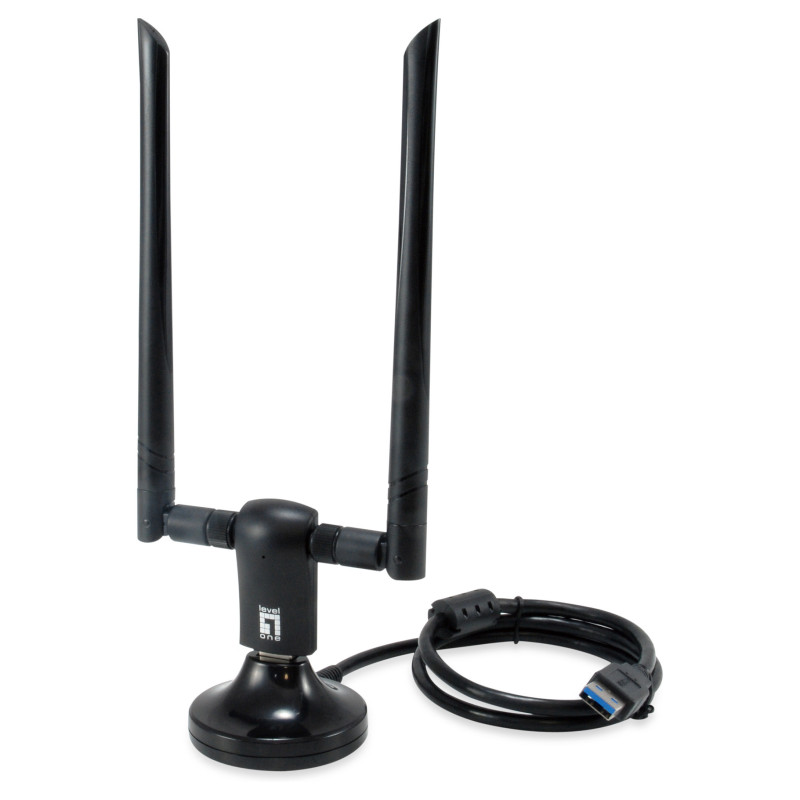

Cables included: USB
Feature: Resource CD
Feature: Quick installation guide
Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990

Other features

Gain: 5 dBi
Feature: Detachable antenna(s)
Antennas quantity: 2
Cable length: 0.7 m
