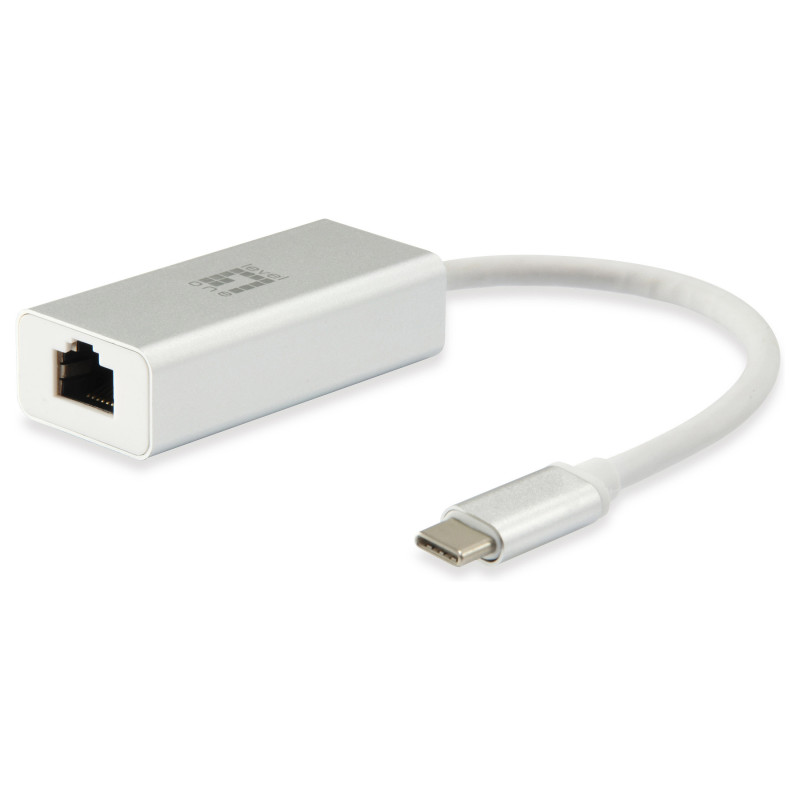

„LevelOne USB-0402“ tinklo plokštė

LevelOne Gigabit USB-C Network Adapter. Connectivity technology: Wired, Host interface: USB Type-C, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Silver, White

The LevelOne USB-0402 is a Gigabit USB type C Network Adapter that enables desktop and notebook computers with high-speed Gigabit network connectivity via the USB port. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don't come with an Ethernet port when physical connection to a network is needed.

The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB Type-C
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
USB version: 3.2 Gen 2 (3.1 Gen 2)

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Supported network protocols: IPv4/IPv6

Design

Product colour: Silver, White
Country of origin: China
Certification: CE

Power

Input current: 3 A
Output voltage: 5 V
Power consumption (typical): 2 W
Feature: USB powered

Operational conditions

Operating temperature (T-T): 10 - 40 °C
Storage temperature (T-T): 10 - 70 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 85%

Weight & dimensions

Width: 28.5 mm
Depth: 17.5 mm
Height: 217 mm
Weight: 26 g

Packaging data

Package type: Box
Package width: 90 mm
Package depth: 26 mm
Package height: 212 mm
Package weight: 33 g

Packaging content

Feature: Quick installation guide

Technical details

Compliance certificates: RoHS

Logistics data

Master (outer) case width: 390 mm
Master (outer) case length: 280 mm
Master (outer) case height: 540 mm
Master (outer) case gross weight: 7.7 kg
Products per master (outer) case: 120 pc(s)

Other features

Feature: Flow control support
