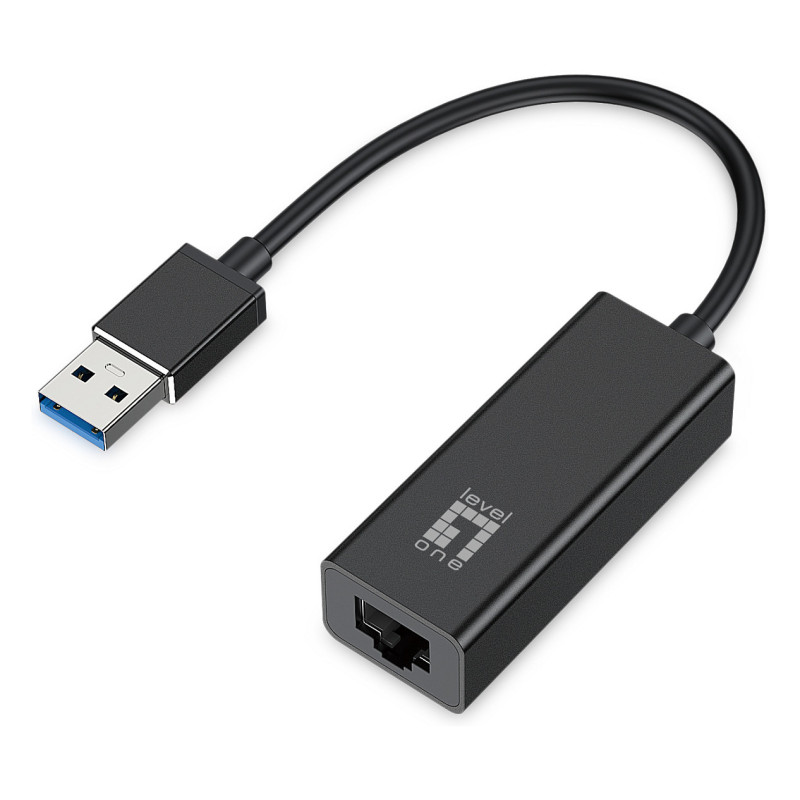

„LevelOne USB-0401“ tinklo plokštė

LevelOne USB-0401 Gigabit USB Network Adapter. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Black

The LevelOne USB-0401 Gigabit USB Network Adapter allows you to connect to the internet easily through the built-in USB port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don't come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0401 easily does the job, all through your USB port.

The USB-0401 is USB 2.0 and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

This makes the USB-0401 the best choice for reliability, efficiency and standard compliance.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support

Design

Component for: PC/Laptop
Product colour: Black
LED indicators: Yes
Country of origin: China
Certification: CE, FCC

Power

Output voltage: 5 V
Power consumption (typical): 2 W
Power consumption: 900 mA
Feature: USB powered

Operational conditions

Operating temperature (T-T): 10 - 50 °C
Storage temperature (T-T): -20 - 45 °C
Storage relative humidity (H-H): 20 - 75%

Weight & dimensions

Width: 23.5 mm
Depth: 16.5 mm
Height: 245 mm
Weight: 26.5 g

Packaging data

Package width: 85 mm
Package depth: 22 mm
Package height: 158 mm
Package weight: 56.5 g

Packaging content

Feature: Resource CD
Feature: Quick installation guide
Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
