„LevelOne SFP-7331“ tinklo siųstuvo-imtuvo modulis

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 155 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 13.7 mm, Depth: 56.5 mm, Height: 8.95 mm. Quantity per pack: 1 pc(s)

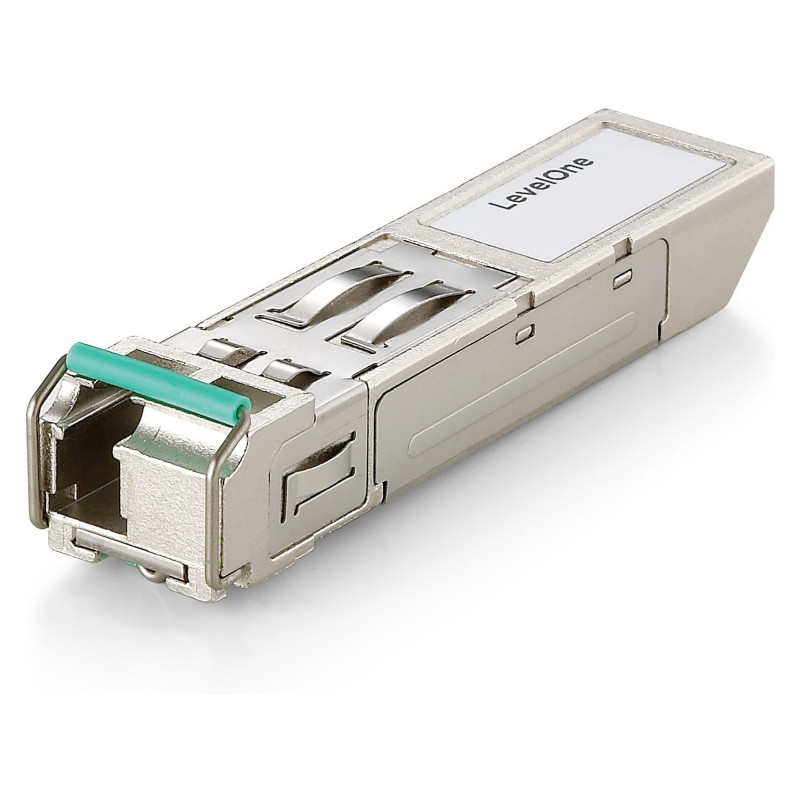

The LevelOne SFP-7331 is a high performance, cost-effective SFP transceiver. It provides up to 155Mbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.

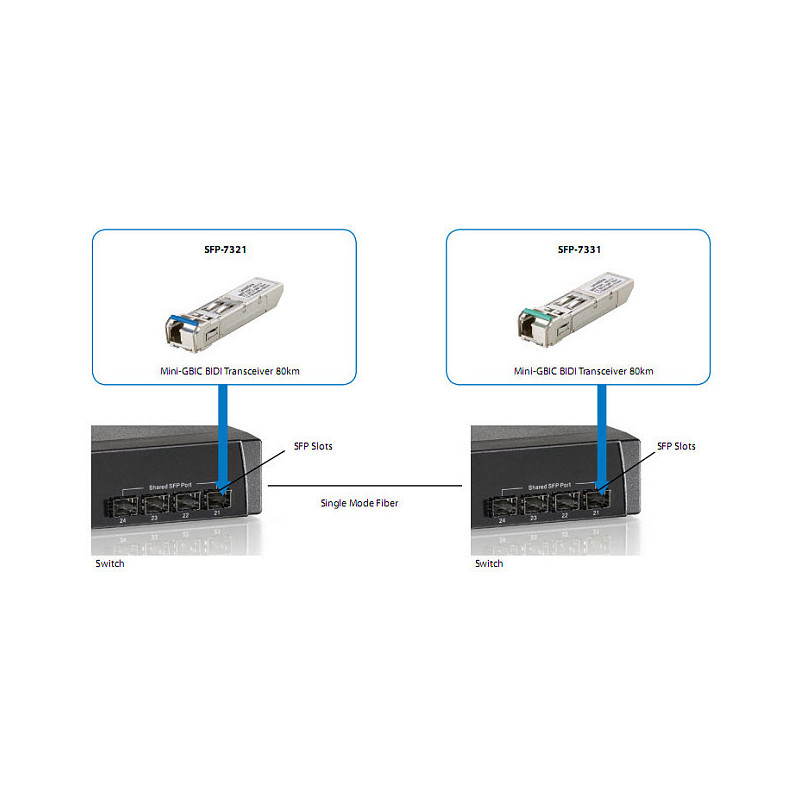

The SFP-7331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-7321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.

- 1550nm FP LD
- Data Rate: 125~155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Compliant with SFF-8472 Digital Diagnostic Monitoring Interface
- Single LC Connector
- Compliance with specifications for IEEE802.3ah 100BASE-BX10-U
- Compliance with FDDI PMD Standard
- Compliance with ATM Standard

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 155 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported

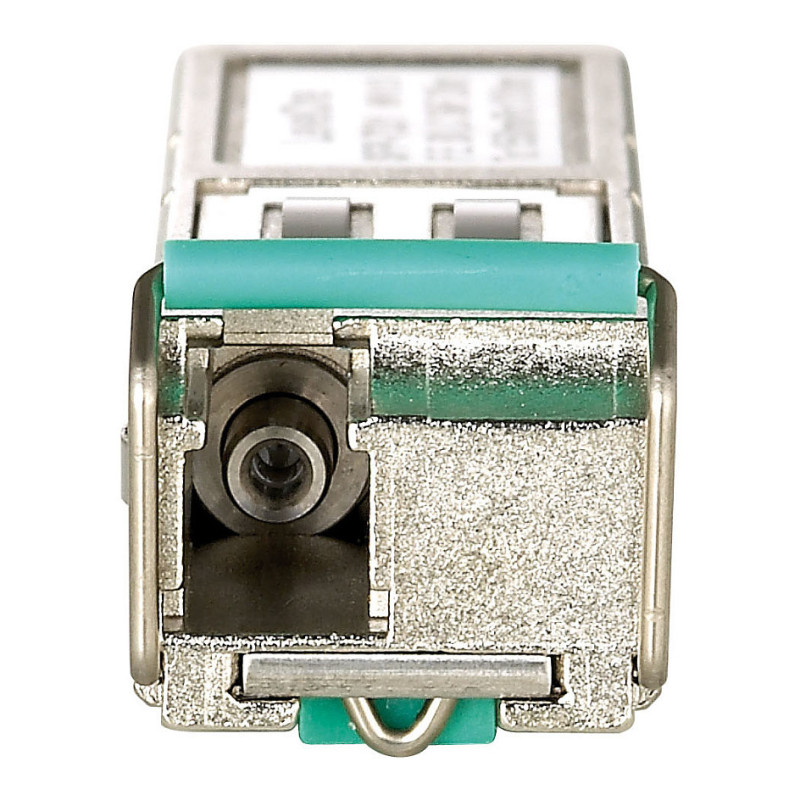

Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 20 m
Tx power (min): -14 dBmW
Tx power (max): -8 dBmW
Networking standards: IEEE 802.3ah
Fiber ports quantity: 1

Features

Feature: Hot-swap

Power

Input voltage: 3.3 V
Maximum voltage: 6 V
Maximum current: 0.3 A

Certificates

Compliance certificates: RoHS
Safety: EN 60825-1
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 13.7 mm
Depth: 56.5 mm
Height: 8.95 mm
Weight: 20 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 75 mm
Package depth: 51 mm
Package height: 130 mm
Package weight: 60 g

Logistics data

Harmonized System (HS) code: 85369010
