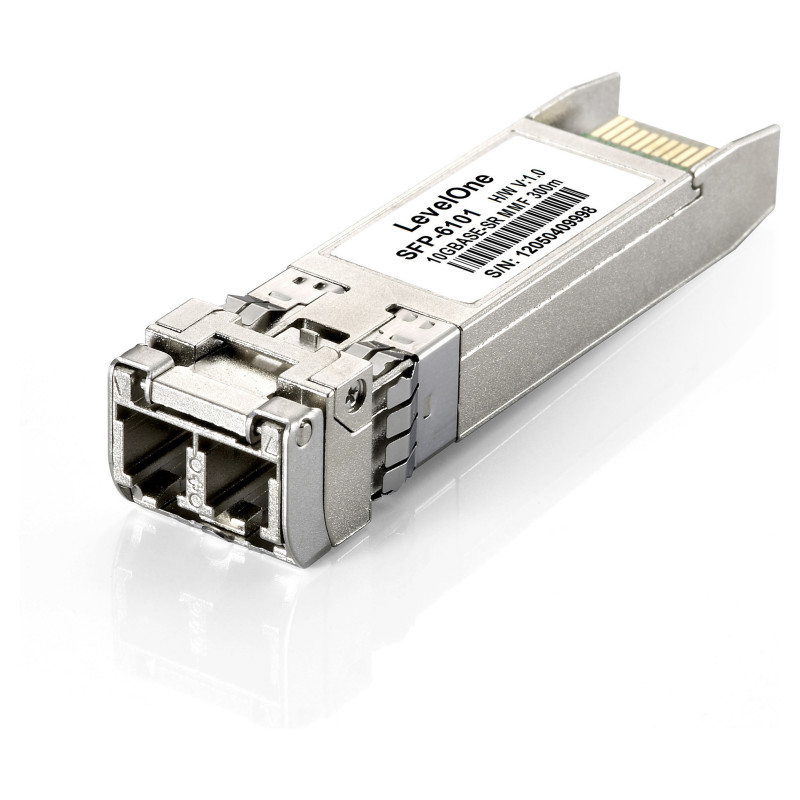

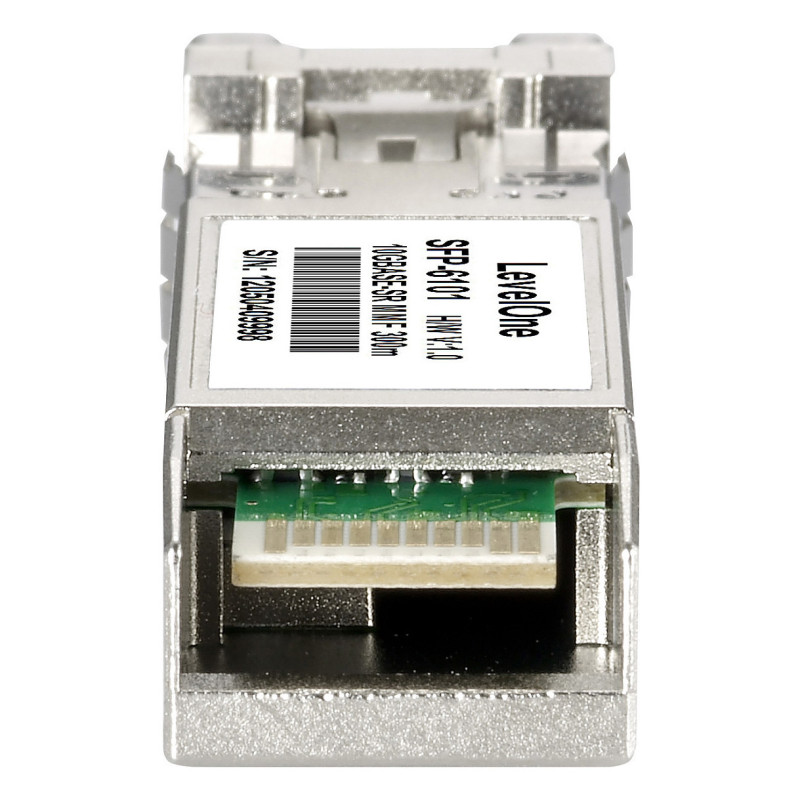

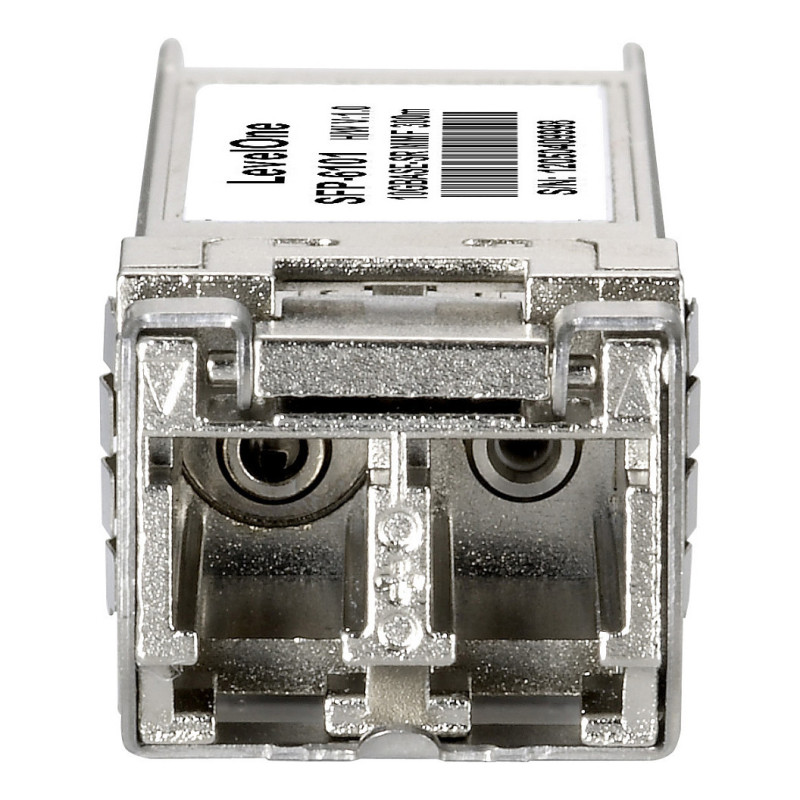

„LevelOne SFP-6101“ tinklo siųstuvo-imtuvo modulis

LevelOne 10Gbps Multi-mode SFP+ Transceiver, 300m, 850nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V, Maximum voltage: 3.6 V, Maximum current: 0.18 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 57 mm, Depth: 12 mm, Height: 13.7 mm. Quantity per pack: 1 pc(s)

LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF) or 300m (MMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-Plus transceivers adopt the most advanced technology to minimize the power consumption in ultra-high speed.

- High-quality 10Gbase short range SFP-Plus transceiver
- Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices
- Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring
- Hot-swappable providing non-stop service
- Provides duplex LC connector
- Operating temperature: 0°C ~ 70°C

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
Maximum transfer distance: 300 m
Wavelength: 850 nm
Tx power (min): -6.5 dBmW
Tx power (max): -1 dBmW
Networking standards: IEEE 802.3ae
Duplex system: Full
Fiber ports quantity: 1

Features

Feature: Hot-swap

Power

Input voltage: 3.3 V
Maximum voltage: 3.6 V
Maximum current: 0.18 A

Certificates

Compliance certificates: RoHS
Safety: EN 60825-1
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 57 mm
Depth: 12 mm
Height: 13.7 mm
Weight: 20 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 106 mm
Package depth: 20 mm
Package height: 65 mm
Package weight: 35 g

Logistics data

Harmonized System (HS) code: 85369010
