LevelOne SFP-4200 tinklo siųstuvo-imtuvo modulis

LevelOne 1.25Gbps Multi-mode Industrial SFP Transceiver, 550m, 850nm, -20°C to 85°C. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Compliance certificates: RoHS, Certification: CE, FCC. Width: 14 mm, Depth: 57 mm, Height: 12 mm. Quantity per pack: 1 pc(s). Package width: 65 mm, Package depth: 106 mm, Package height: 20 mm

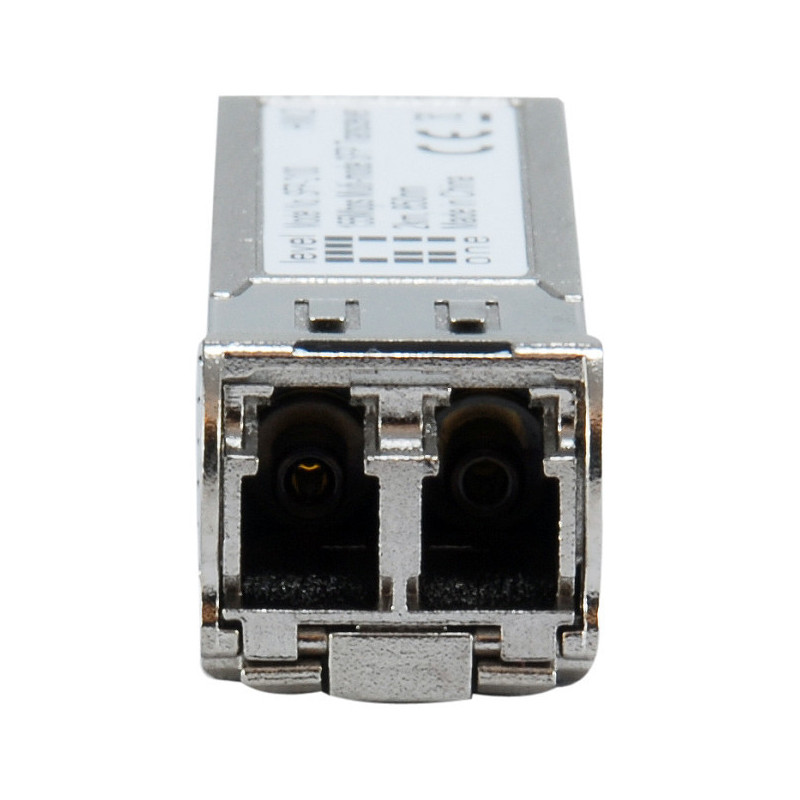

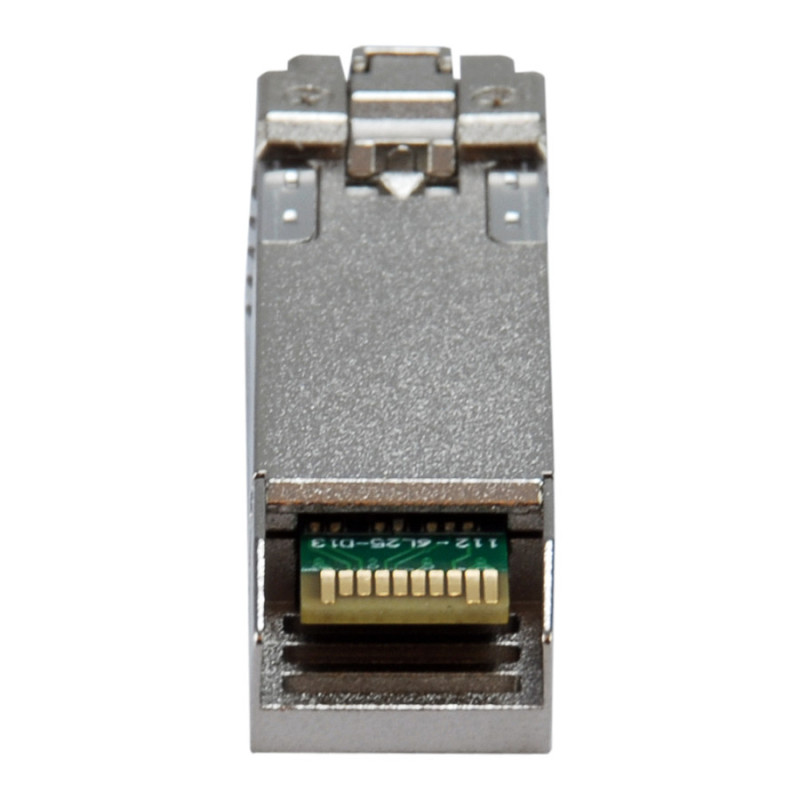

The levelOne SFP-4200 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-4200 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
Maximum transfer distance: 550 m
Wavelength: 850 nm
Tx power (min): -10 dBmW
Tx power (max): 4 dBmW
Networking standards: IEEE 802.3z
Duplex system: Full

Features

Feature: Hot-swap

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): 5 - 70 °C
Operating relative humidity (H-H): 5 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 14 mm
Depth: 57 mm
Height: 12 mm
Weight: 20 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 65 mm
Package depth: 106 mm
Package height: 20 mm
Package weight: 40 g

Logistics data

Harmonized System (HS) code: 85369010
