„LevelOne POI-3014 PoE“ adapteris

LevelOne POI-3014. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 52 V, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Compliance certificates: RoHS, Certification: FCC Part 15, CE. Width: 145.7 mm, Depth: 64.4 mm, Height: 43.4 mm

The LevelOne POI-3014 is a Power over Ethernet (PoE) injector that not only delivers a cost-effectivesolution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) onexisting LAN infrastructure.

With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switchare merged together and then transmitted to a PD such as a PoE network camera, through the Ethernetcabling. This allows you to extend the use of your existing hardware investment without needing to buyextra PoE switches.

Furthermore, non-PoE devices like wireless access points can also be powered up remotely by addingadditional PoE splitters, since power and data are further split into two cables. These devices can thereforebe installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Features

Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Feature: Surge protection
Maximum operating distance: 100 m

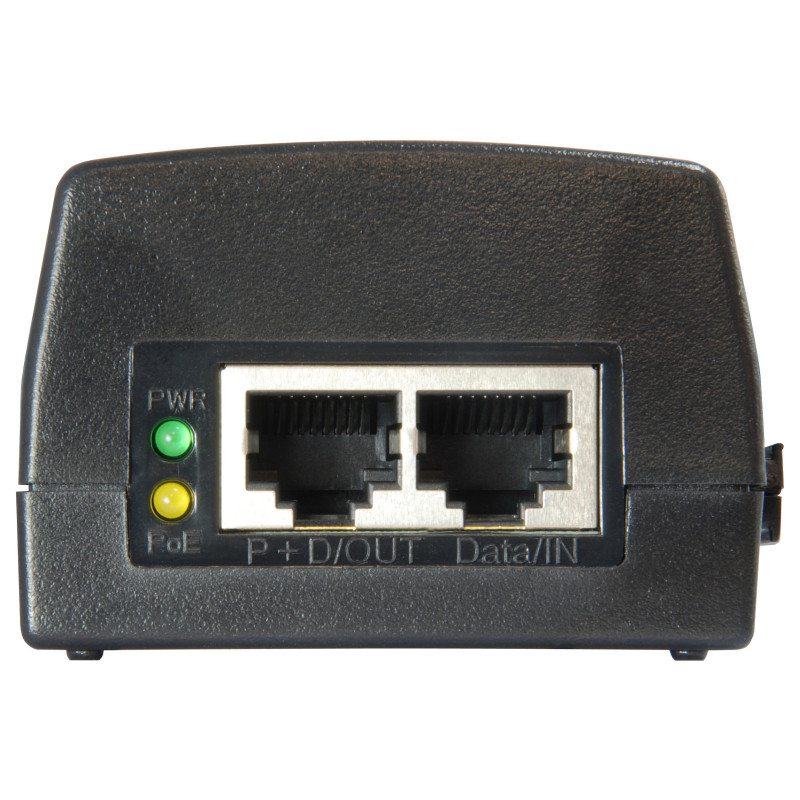

LED indicators: PoE, Power
Pin assignment & polarity: 4/5 (+), 7/8 (-)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 52 V

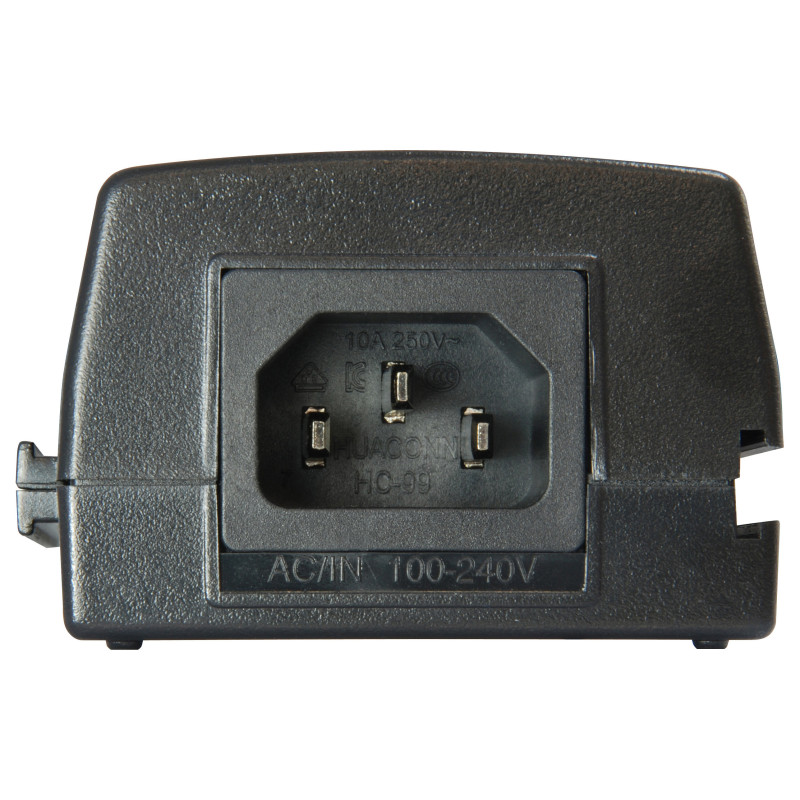

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.8 A
Output current: 0.6 A
Power consumption (max): 30 W
Power over Ethernet (PoE) power per port: 30 W

Certificates

Compliance certificates: RoHS
Certification: FCC Part 15, CE

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): 0 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 145.7 mm
Depth: 64.4 mm
Height: 43.4 mm
Weight: 350 g

Packaging content

Number of products included: 1 pc(s)
Feature: Quick installation guide

Packaging data

Package width: 210 mm
Package depth: 145 mm
Package height: 55 mm
Package weight: 400 g

Logistics data

Harmonized System (HS) code: 85044095
