„LevelOne POI-3004 PoE“ adapteris

LevelOne Gigabit PoE Injector, 30W. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 52 V, Output power: 30 W, Input voltage: 100 - 240 V. Certification: FCC Part 15, CE, RoHS. Width: 55 mm, Depth: 35.5 mm, Height: 173.5 mm

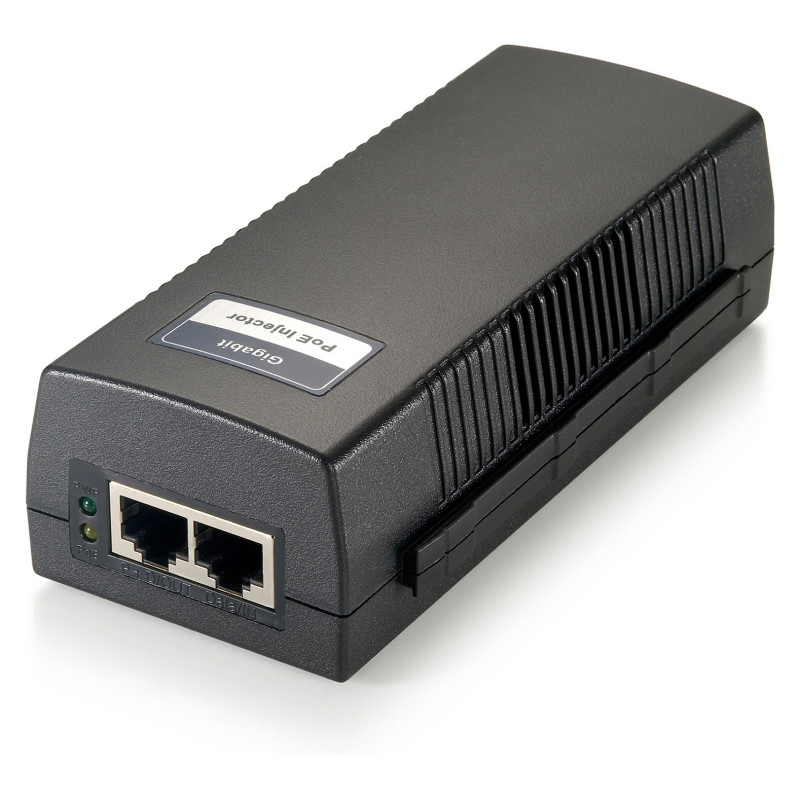

The LevelOne POI-3004 is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) on existing LAN infrastructure.

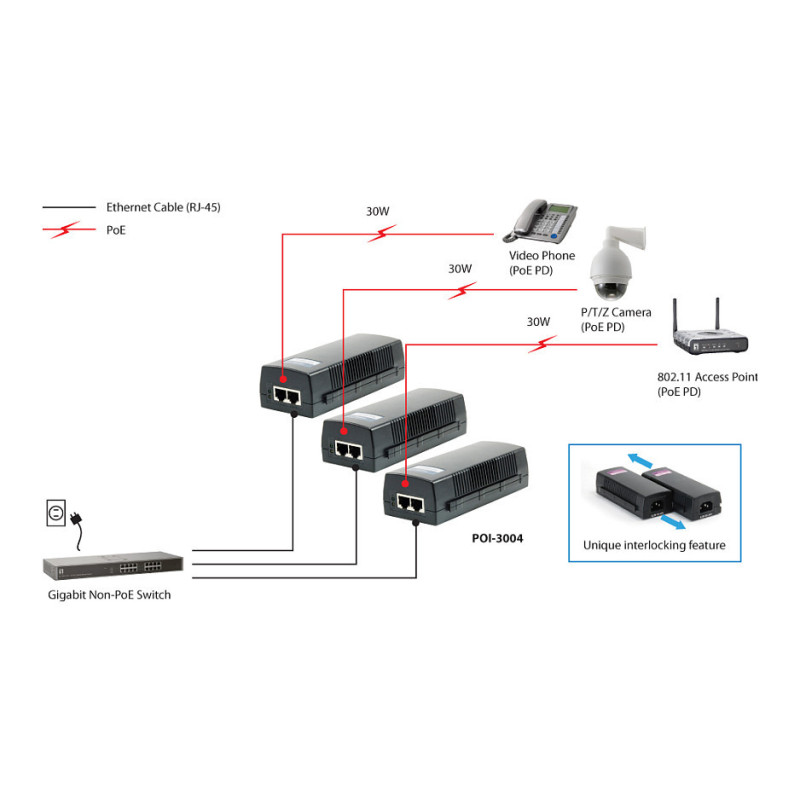

With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch are merged together and then transmitted to a PD such as a PoE network camera, through the Ethernet cabling. This allows you to extend the use of your existing hardware investment without needing to buy extra PoE switches.

Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables. These devices can therefore be installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.

- PoE supplies up to 30W of power feeding on 2 pairs
- Remove the need for a bulky power adapter and power line
- Delivers power and data to equipment via a single Ethernet cable
- Remote power feeding up to 100m
- Unique interlocking feature for easy installation
- Surge protected to enhance safety
- Simple Plug and Play installation
- Compact, lightweight design

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)

Features

Product colour: Black
Maximum operating distance: 100 m
LED indicators: PoE, Power

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 52 V
Output power: 30 W
Input voltage: 100 - 240 V
Input frequency: 50/60 Hz
Input current: 0.8 A
Output current: 0.6 A
Power consumption (max): 30 W

Certificates

Certification: FCC Part 15, CE, RoHS

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): 0 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 55 mm
Depth: 35.5 mm
Height: 173.5 mm
Weight: 275 g

Packaging content

Number of products included: 1 pc(s)
Feature: Power cord included

Packaging data

Package width: 55 mm
Package depth: 125 mm
Package height: 210 mm
Package weight: 450 g

Logistics data

Harmonized System (HS) code: 85044095
