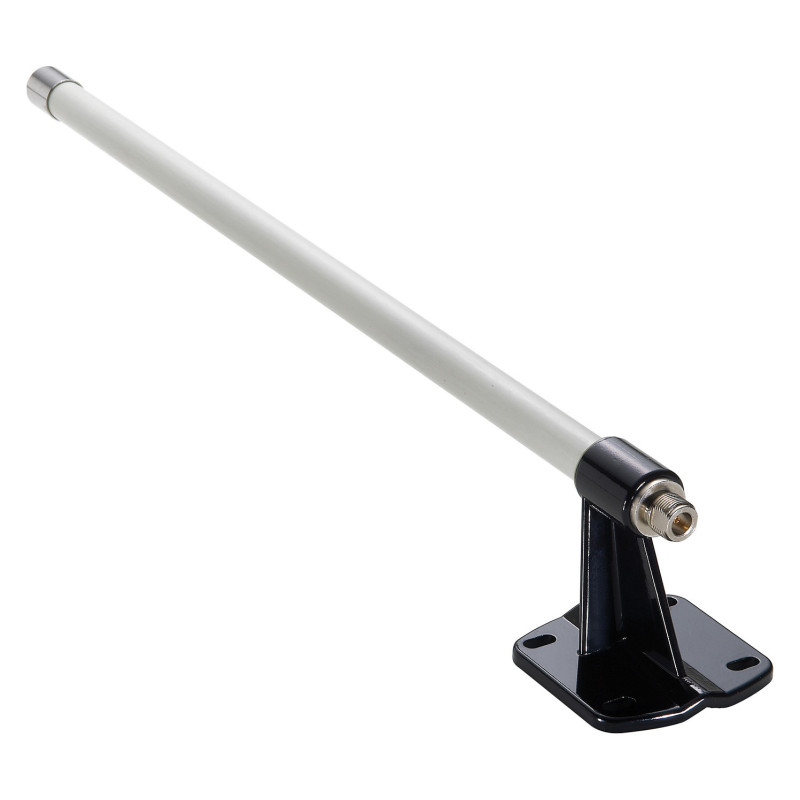

LevelOne OAN-2090 tinklo antena

LevelOne 9dBi 2.4GHz Omni-directional Outdoor Antenna. Antenna gain level (max): 8.5 dBi, Frequency band: 2.4 - 2.5 GHz, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 70 mm, Depth: 610 mm, Height: 53 mm. Package width: 89 mm, Package depth: 650 mm, Package height: 75 mm

High-quality antenna with kit
OAN-2090 is an all-inclusive antenna kit for indoor/outdoor applications. It is a great solution to help improve the distance and performance of wireless local area networks (WLANs).

It is durable and reliable, perfectly suited for outdoor deployments in even the most severe weather conditions.

Bundled in the package is LevelOne's ANC-2330. This is a 3-meter N plug to RPSMA plug cable that is included to help with flexible installation. OAN-2090 also includes a surge protector to protect against lightning strikes and a durable mounting kit for secure installation.

- IEEE 802.11 b/g/n application in 2.4GHz Frequency Range
- Surge protector included to avoid lighting damage
- Omni-directional operation provides extended point to multi-point coverage
- Standard N-jack connector
- 3 meter cable, with standard N-Plug and RPSMA- Plug

Performance

Frequency band: 2.4 - 2.5 GHz
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 15°
Antenna gain level (max): 8.5 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: N-type
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.8:1
Product colour: Black, White
Housing material: Glass fibre
Survival wind speed: 180 km/h
Purpose: Indoor & outdoor

Operational conditions

Operating temperature (T-T): -20 - 65 °C
Storage temperature (T-T): -30 - 75 °C

Weight & dimensions

Width: 70 mm
Depth: 610 mm
Height: 53 mm
Weight: 345 g

Packaging data

Package width: 89 mm
Package depth: 650 mm
Package height: 75 mm
Package weight: 580 g

Packaging content

Feature: Mounting kit
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85177100
