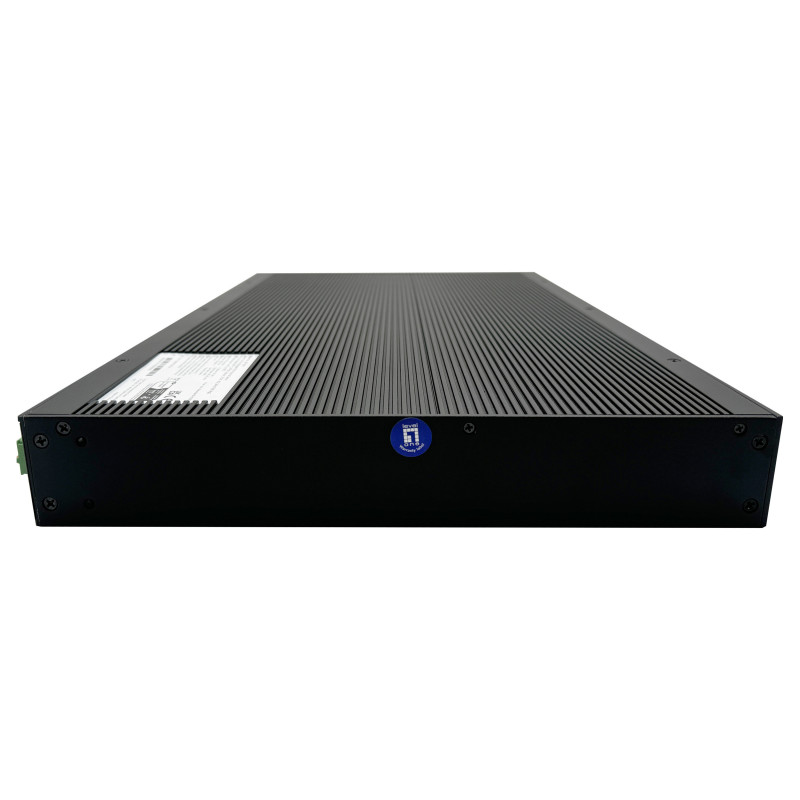

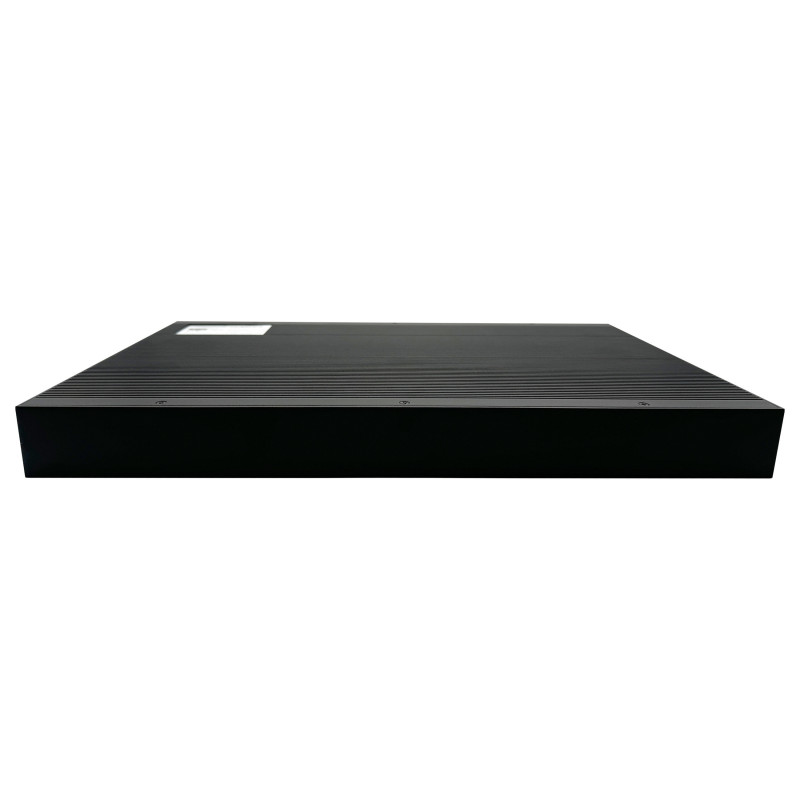

LevelOne IXP-2871 network switch

LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19" Rack Mount, -40°C to 80°C. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

The IXP-2871 is a high-performance industrial Ethernet switch with 24 PoE ports and 4 SFP+ slots. It delivers up to 370W of PoE power, with Ports 1-2 supporting up to 90W and Ports 3-24 supporting up to 30W, providing flexibility in power allocation for various powered devices. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time. Its wide operating temperature range, DC Redundant power supply, and fanless design ensure uninterrupted operation in harsh industrial conditions. Ideal for large-scale industrial networks.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 4
USB Type-A ports quantity: 1
Console port: RJ-45

Network

Feature: 10G support
Feature: Port mirroring
Feature: Port trunking
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: Ethernet Ring Protection Switching (ERPS)
Feature: VLAN support
Virtual LAN features: IP subnet-based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 190.4 Mpps
MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 16000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: Loop protection
Feature: IP-MAC-Port binding
Feature: Password protection
Authentication type: IEEE 802.1x
MAC address entries: Dynamic MAC address entries, Static MAC address entries

Multicast features

Feature: Multicast support

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Fault, PoE, Power, Status, USB
International Protection (IP) code: IP40

Performance

Feature: Telnet
Feature: Dying Gasp
Feature: Fanless
Mean time between failures (MTBF): 200000 h

Power

Power source: DC/PoE
Feature: Redundant power supply (RPS) support
Power consumption (typical): 32 W
Power consumption (max): 402 W
Feature: Surge protection
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 90 W
Total Power over Ethernet (PoE) budget: 370 W

Other features

Feature: Terminal block port

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 440 mm
Depth: 280 mm
Height: 45 mm
Weight: 4.14 kg

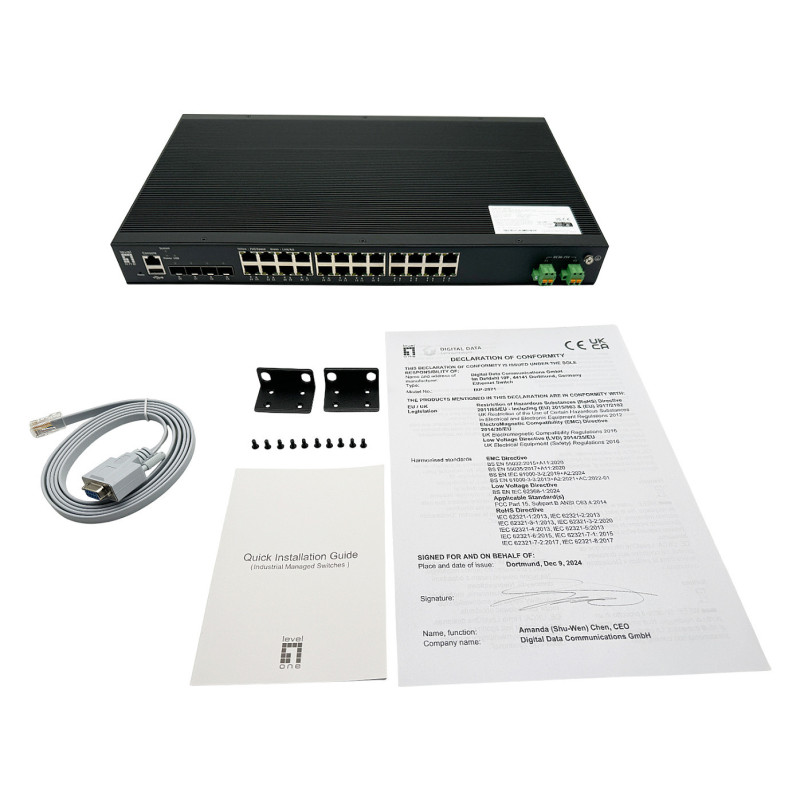

Packaging content

Cables included: LAN (RJ-45) to DB9
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Feature: Terminal block included
Package width: 525 mm
Package depth: 390 mm
Package height: 95 mm
Package weight: 4.8 kg

Technical details

Pallet gross length: 80 cm
Pallet gross width: 120 cm

Certificates

Compliance certificates: UKCA, Federal Communications Commission (FCC), RoHS, CE

Logistics data

Pallet gross height: 177.6 cm
Country of origin: China
Master (outer) case width: 535 mm
Master (outer) case length: 205 mm
Master (outer) case height: 408 mm
Harmonized System (HS) code: 851762
Master (outer) case gross weight: 10.6 kg
Products per master (outer) case: 2 pc(s)
