„LevelOne IGU-2071“ tinklo komutatorius

LevelOne 20-Port L2 Plus Managed Gigabit Industrial Switch, 16x 1GbE RJ45, 4x 1/2.5GbE SFP, DIN-Rail, -40°C to 80°C. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE...

The LevelOne IGU-2071 is a rugged L2+ managed industrial Ethernet switch built for demanding environments. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time.

High-Density Connectivity and Flexibility

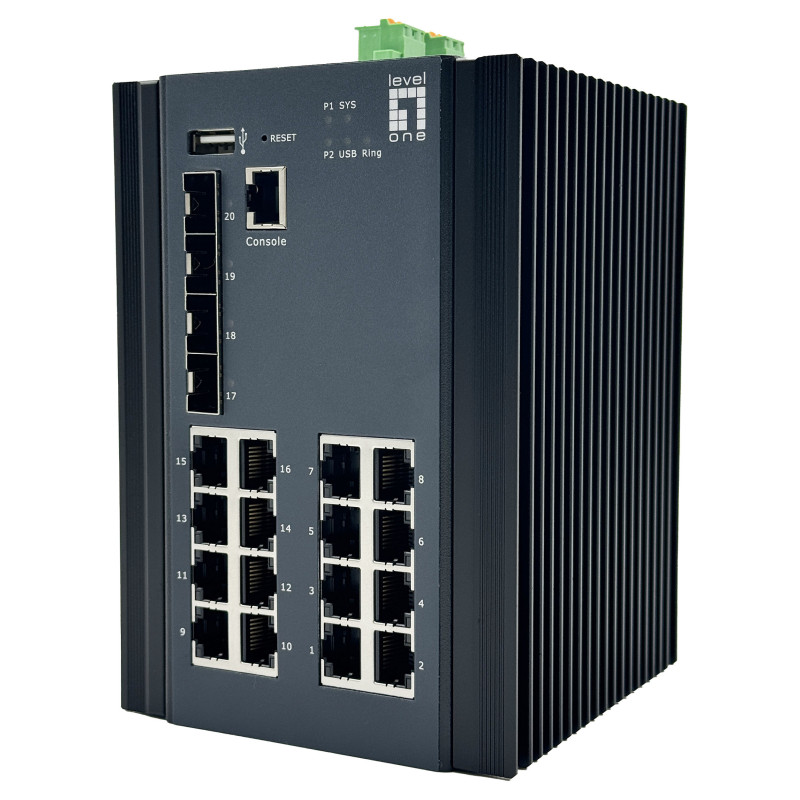

Offers comprehensive connectivity with 16 10/100/1000Base-T RJ45 and 4 1000/2500Base-X SFP ports.

Robust Power and Environmental Resilience

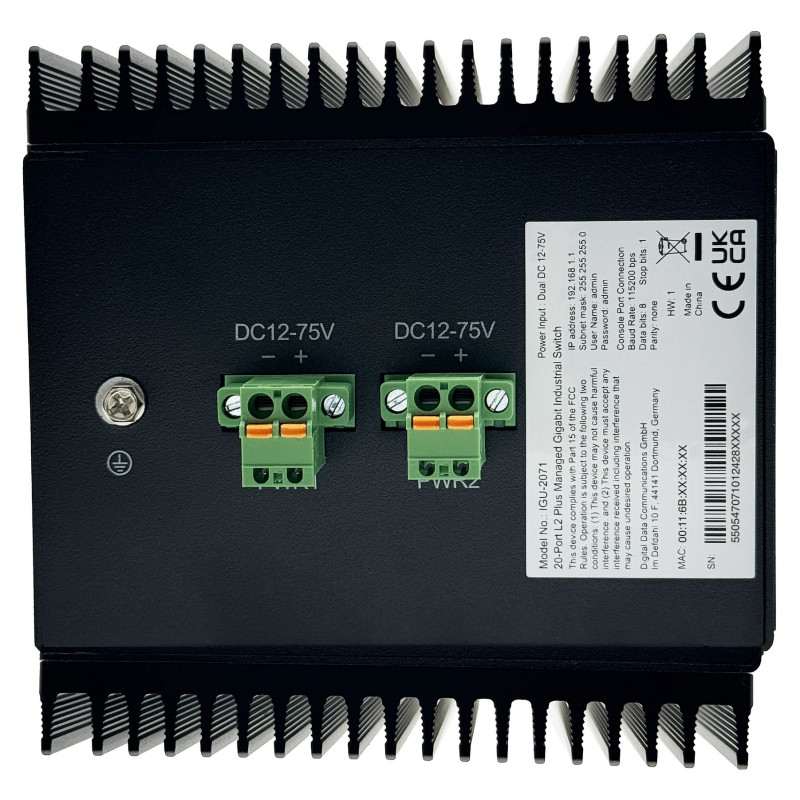

Ensures reliable operation with redundant 12-75V DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).
Designed for harsh environments with fanless IP40 Din-rail enclosure and wide operating temperature range (-40°C to +80°C).

High Availability and Performance
Delivers uninterrupted operation through G.8032 ERPS protocol with <20ms recovery time.
Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance.

Advanced Management and Security
Simplifies configuration and upgrades with USB one-key functionality.
Offers robust management options through Web, SNMP, CLI, Telnet, and SSH interfaces.
Provides enhanced security with 802.1X authentication, port isolation, and ACL.

Robust Layer 3 Capabilities
Enables advanced network routing with IPv4/IPv6 static routing and DHCP server.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Combo SFP ports quantity: 4
Console port: RJ-45
USB 2.0 ports quantity: 1

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: Ethernet Ring Protection Switching (ERPS)
Feature: VLAN support

Data transmission

Switching capacity: 52 Gbit/s
Forwarding rate: 77.3 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication, Port-based authentication
Authentication type: IEEE 802.1x, RADIUS
Packet filtering: Y

Protocols

Feature: IP Source Guard (IPSG)

Design

Product colour: Black
LED indicators: Power, System, USB
International Protection (IP) code: IP40

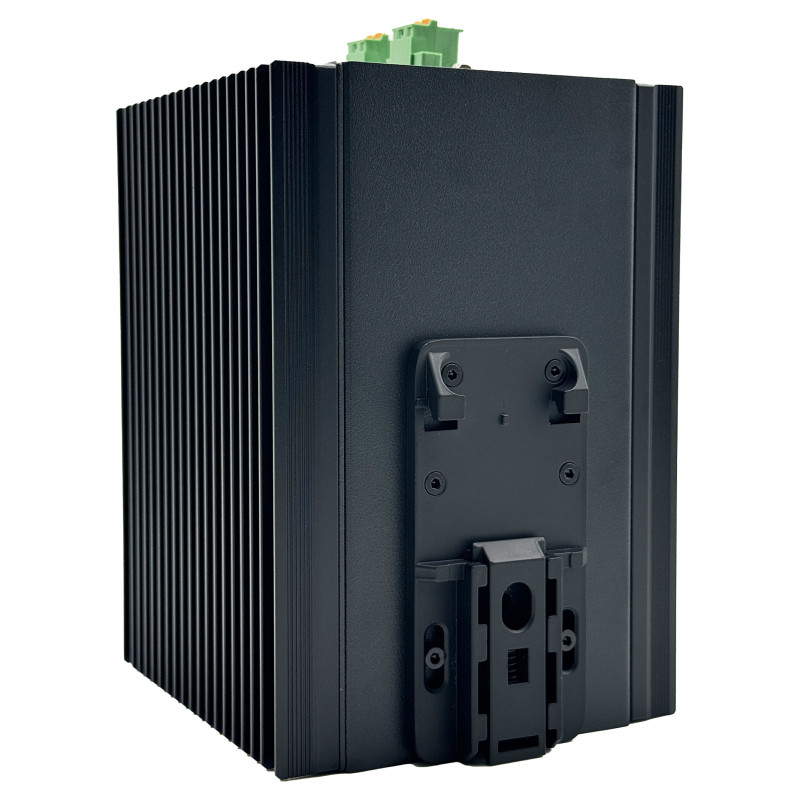

Feature: DIN rail mounting

Performance

Feature: Fanless

Power

Power source: DC
Feature: Redundant power supply (RPS) support
Number of power supply units: 2
Power consumption (max): 22 W
Feature: Surge protection
Surge protection voltage: 6 kV

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 110 mm
Depth: 115 mm
Height: 158 mm
Weight: 2.08 kg

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick start guide

Packaging data

Feature: Terminal block included
Feature: DIN rail included
Package width: 230 mm
Package depth: 180 mm
Package height: 142 mm
Package weight: 2.41 kg

Technical details

Master (outer) cases per pallet (air): 26 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 167.4 cm

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA

Logistics data

Country of origin: China
Master (outer) case width: 580 mm
Master (outer) case length: 310 mm
Master (outer) case height: 255 mm
Harmonized System (HS) code: 851762
Master (outer) case gross weight: 15.2 kg
Products per master (outer) case: 6 pc(s)
