„LevelOne IGU-1071“ tinklo komutatorius

LevelOne 10-Port L2 Plus Managed Gigabit Industrial Switch, 8x 1GbE RJ45, 2x 1/2.5GbE SFP, DIN-Rail, -40°C to 75°C. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 26 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... DC input voltage: 12 - 58 V

The LevelOne IGU-1071 is a rugged L2+ managed industrial Ethernet switch built for demanding environments. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time.

Compact and Flexible Connectivity

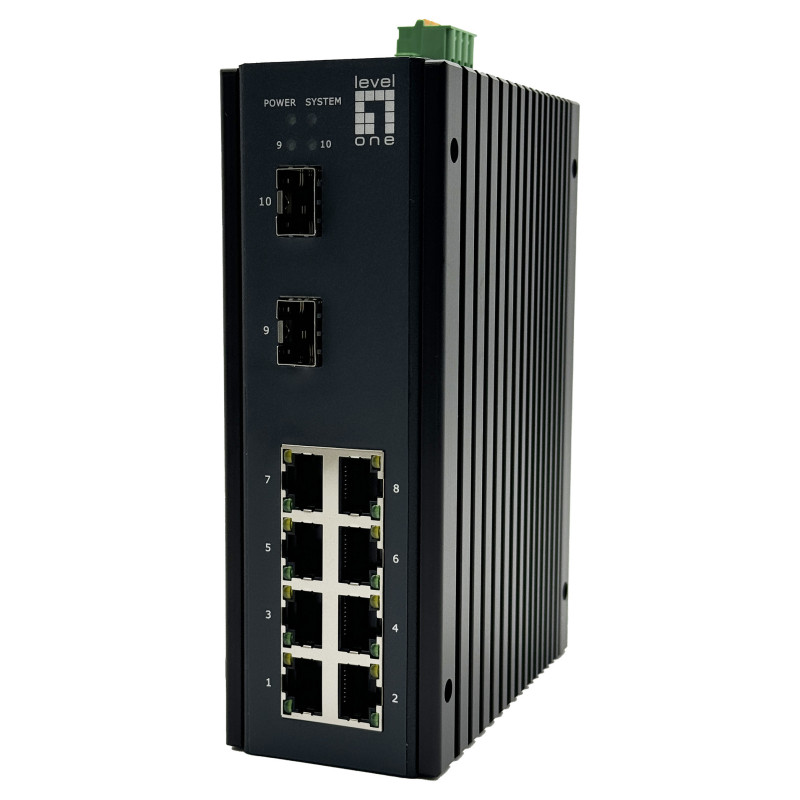

Offers versatile connectivity with 8 10/100/1000Base-T RJ45 ports and 2 1000/2500Base-X SFP slots.

Robust Power and Environmental Resilience

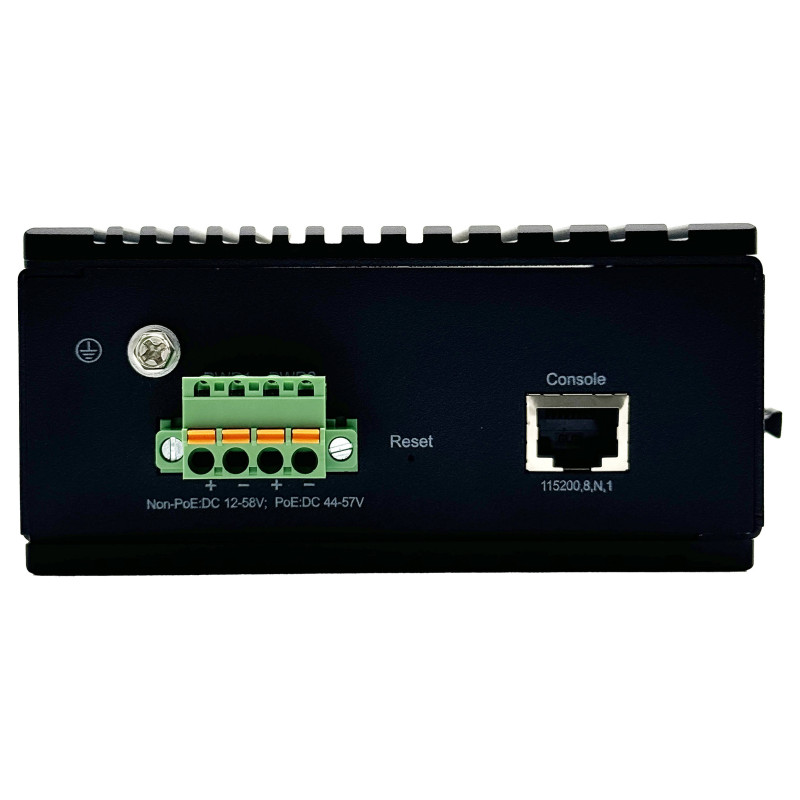

Ensures reliable operation with redundant 12-58V DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).
Designed for harsh environments with fanless IP40 Din-rail enclosure and wide operating temperature range (-40°C to +75°C).

High Availability and Performance
Delivers uninterrupted operation through G.8032 ERPS protocol with <20ms recovery time.
Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance.

Comprehensive Layer 2 and Layer 3 Functionality
Offers robust Layer 2 management with VLAN, QinQ, port mirroring, ACL, and 802.1X for network segmentation and security.
Enables advanced Layer 3 routing with IPv4/IPv6 static routing, DHCP server, and other essential protocols.

Advanced Management and Maintenance
Simplifies configuration and management with user-friendly Web, SNMP, CLI, and Telnet interfaces.
Supports remote configuration, firmware upgrades, and system monitoring.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
SFP module slots quantity: 2
Console port: RJ-45

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: Ethernet Ring Protection Switching (ERPS)
Feature: VLAN support

Data transmission

Switching capacity: 26 Gbit/s
Forwarding rate: 38.6 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SSH
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication, Port-based authentication
Authentication type: IEEE 802.1x, RADIUS

Protocols

Feature: IP Source Guard (IPSG)

Design

Product colour: Black
LED indicators: Power, System
International Protection (IP) code: IP40

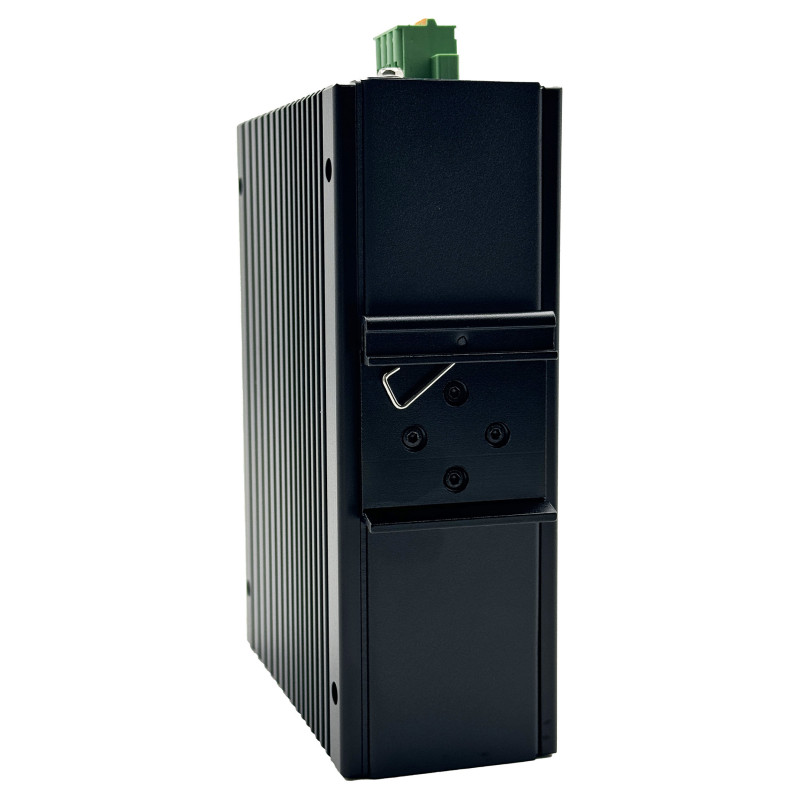

Feature: DIN rail mounting

Performance

Feature: Firmware upgradeable
Feature: Fanless

Power

Power source: DC
Feature: Redundant power supply (RPS) support
Number of power supply units: 2
DC input voltage: 12 - 58 V
Power consumption (max): 10 W
Feature: Surge protection
Surge protection voltage: 6 kV

Other features

Remote administration: Y

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 54 mm
Depth: 115 mm
Height: 158 mm
Weight: 1.12 kg

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick start guide

Packaging data

Feature: Terminal block included
Feature: DIN rail included
Package width: 230 mm
Package depth: 180 mm
Package height: 70 mm
Package weight: 1.38 kg

Technical details

Master (outer) cases per pallet (air): 28 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 164.4 cm

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA

Logistics data

Country of origin: China
Master (outer) case width: 440 mm
Master (outer) case length: 375 mm
Master (outer) case height: 250 mm
Harmonized System (HS) code: 851762
Master (outer) case gross weight: 17.5 kg
Products per master (outer) case: 12 pc(s)
