„LevelOne IGU-0501“ tinklo komutatorius

LevelOne IGU-0501. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

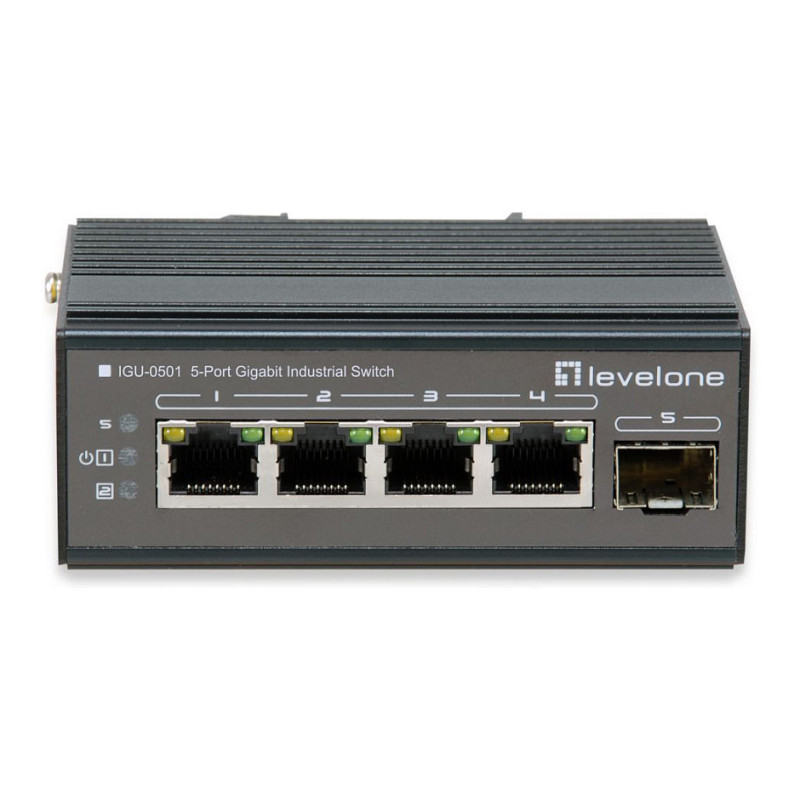

LevelOne IGU-0501 Industry Ethernet Switch provides 4 ports 10/100/1000 Base plus 1 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceiversnetwork at mission-critical environment.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T, 1000BASE-X
Feature: Flow control support

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 1 MB

Design

Product colour: Black
LED indicators: Yes

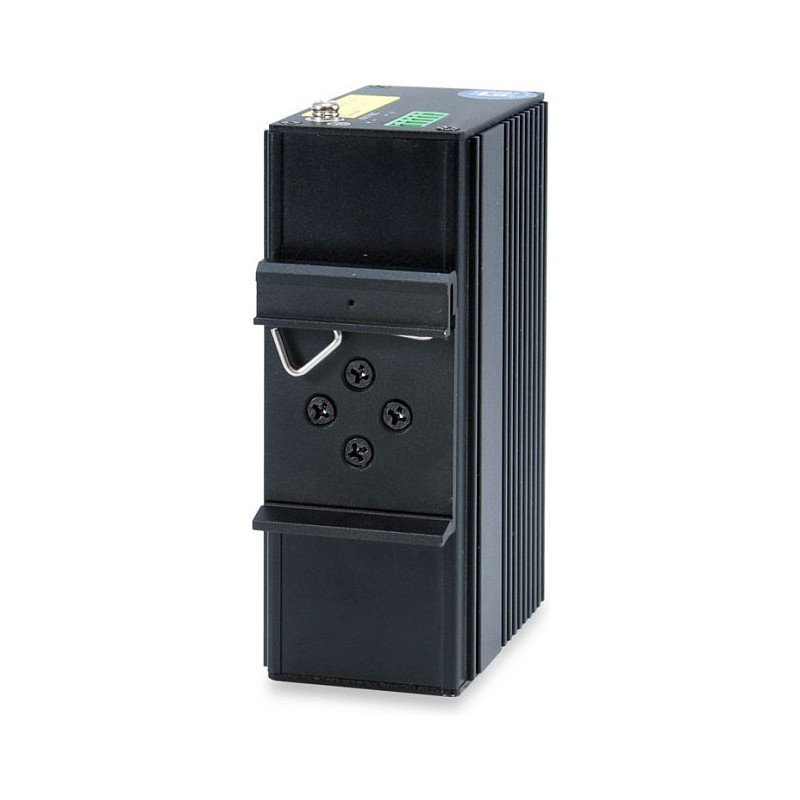

Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 400000 h

Power

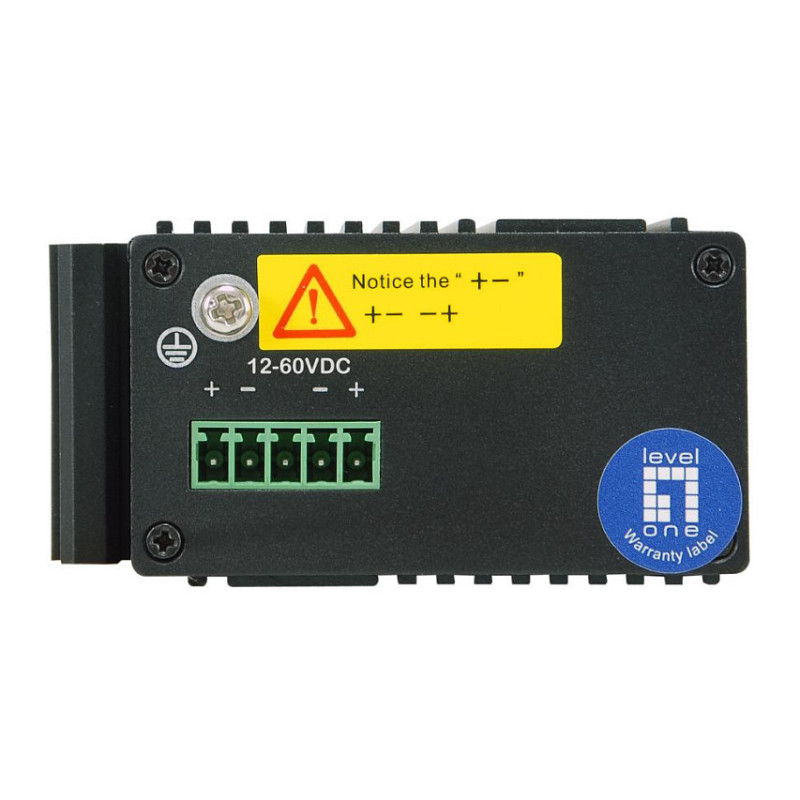

Power source: DC
Feature: Surge protection
Surge protection voltage: 6 kV

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 65 mm
Depth: 50 mm
Height: 99 mm
Weight: 350 g

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 110 mm
Package depth: 62 mm
Package height: 130 mm
Package weight: 400 g

Technical details

Pallet net height: 150 cm
Pallet net length: 80 cm
Pallet net width: 120 cm

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
