„LevelOne IGP-0501“ tinklo komutatorius

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Wall mountable

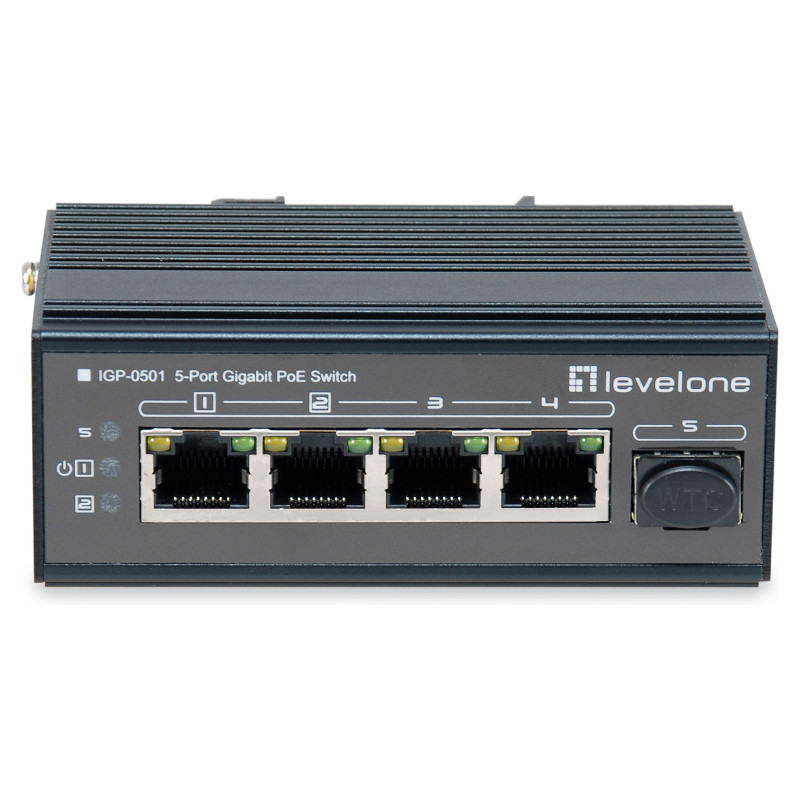

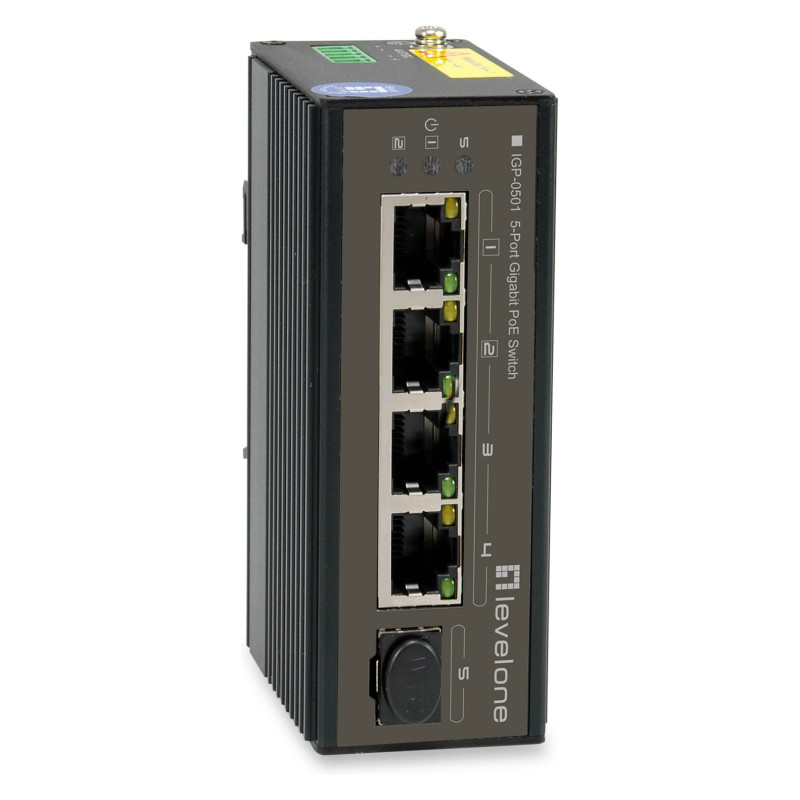

LevelOne IGP-0501 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 1 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Power
International Protection (IP) code: IP30
Feature: Wall mountable

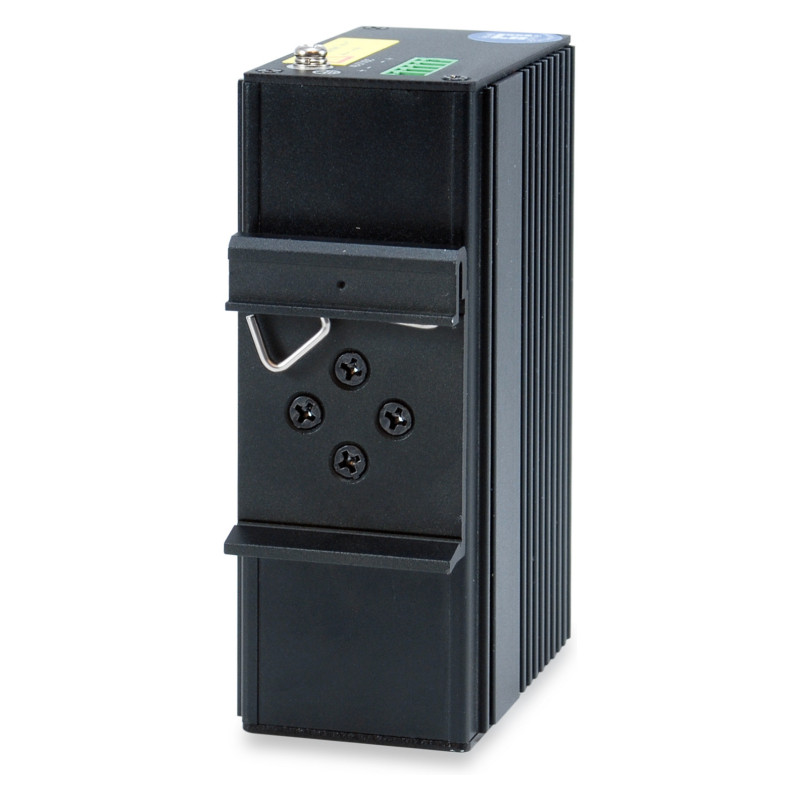

Feature: DIN rail mounting

Power

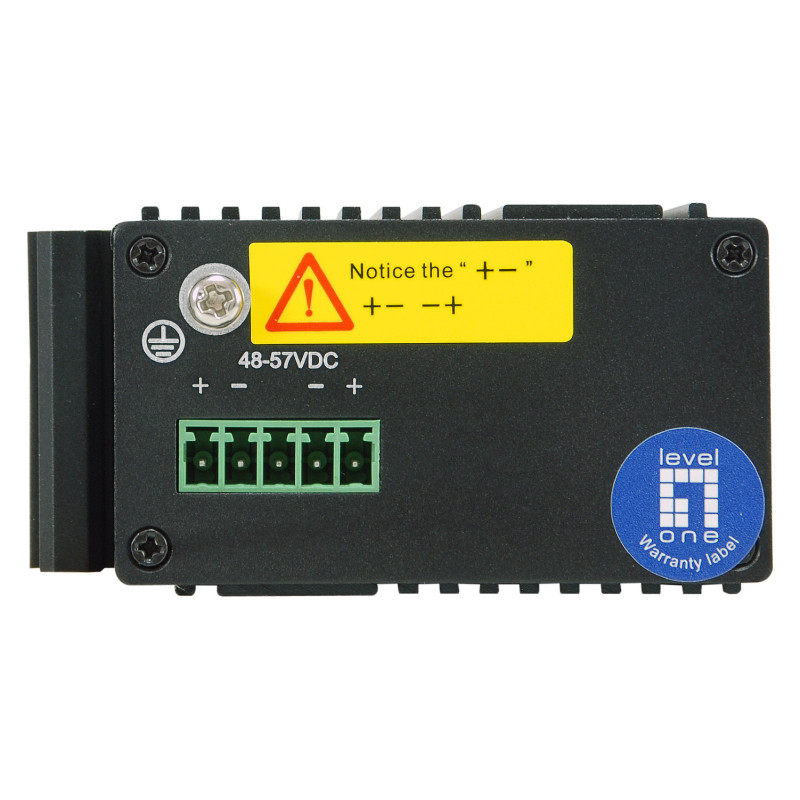

DC input voltage: 48 - 57 V
Feature: Surge protection
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W

Operational conditions

Operating temperature (T-T): -30 - 65 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 65 mm
Depth: 36 mm
Height: 101 mm
Weight: 350 g

Packaging content

Feature: Quick start guide

Packaging data

Feature: Terminal block included
Package type: Box
Package width: 70 mm
Package depth: 60 mm
Package height: 110 mm
Package weight: 400 g

Technical details

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 159 cm

Logistics data

Products per pallet: 24 pc(s)
Country of origin: China
Master (outer) case width: 422 mm
Master (outer) case length: 566 mm
Master (outer) case height: 360 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 13 kg
Products per master (outer) case: 28 pc(s)
