„LevelOne IGP-0101 PoE“ adapteris

LevelOne Industrial Gigabit PoE Injector, 36W, 802.3at/af PoE. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, LED indicators: PoE, Power, Safety: EN60950-1Ç EN55022/24, EN50155, EN55011, EN50121-3-2 EN60068-2-7, EN60068-2-27, EN60068-2-32. Power over Ethernet (PoE) voltage: 56 V, Output power: 36 W. Certification: CE, FCC, RoHS, VCCI. Width: 81.5 mm, Depth: 32 mm, Height: 103.5 mm

The LevelOne IGP-0101 is rugged designed 30 Watts, high power Single port industrial POE Injector is equipped with our high efficiency ColdDesign technology to provide 30 Watts power to your security equipment. The ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48~56 VDC to deliver 30Watts power to meet IEEE802.3af/at standard. It is being rigorously tested for your Security, Transportation and Telco application.

Key Features
- PoE ports can support the IEEE 802.3at standard and power up 30W devices
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 40°C to 75°C operating temperature range
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case

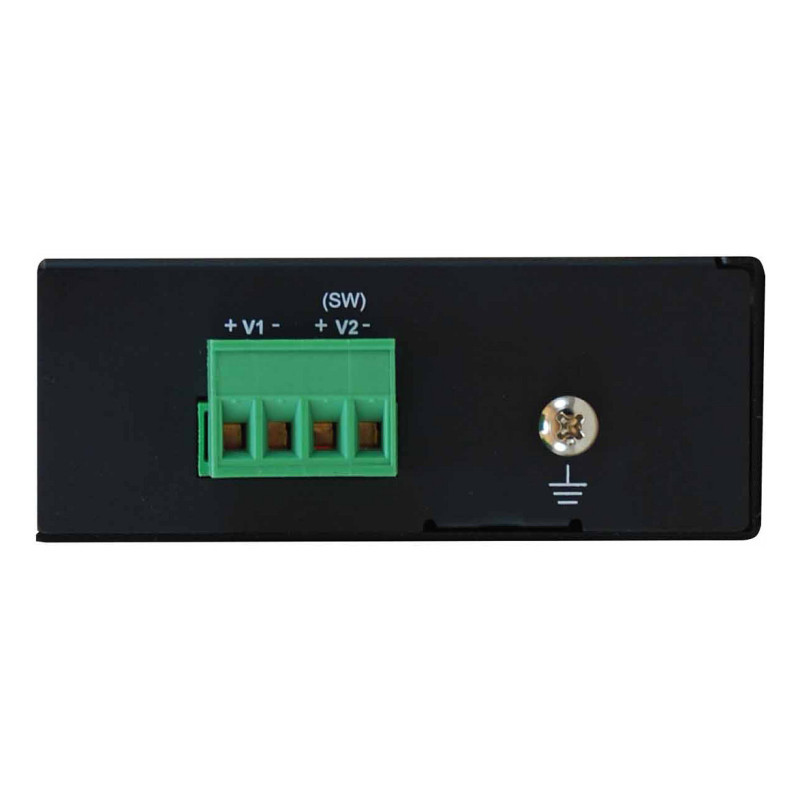

- Redundant power inputs with Terminal Block

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Duplex system: Full

Features

Product colour: Black
Feature: Wall mountable
LED indicators: PoE, Power
Safety: EN60950-1Ç EN55022/24, EN50155, EN55011, EN50121-3-2 EN60068-2-7, EN60068-2-27, EN60068-2-32

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 56 V
Output power: 36 W

Certificates

Certification: CE, FCC, RoHS, VCCI

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 81.5 mm
Depth: 32 mm
Height: 103.5 mm
Weight: 140 g

Packaging content

Feature: Manual

Packaging data

Package width: 165 mm
Package depth: 65 mm
Package height: 215 mm
Package weight: 370 g

Logistics data

Harmonized System (HS) code: 85044095
