„LevelOne IES-0600“ tinklo komutatorius

LevelOne 6-Port Gigabit Industrial Switch, 1 x SFP, 1 x SFP/RJ45 Combo, -40°C to 75°C, DIN-Rail. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 1024 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Wall mountable

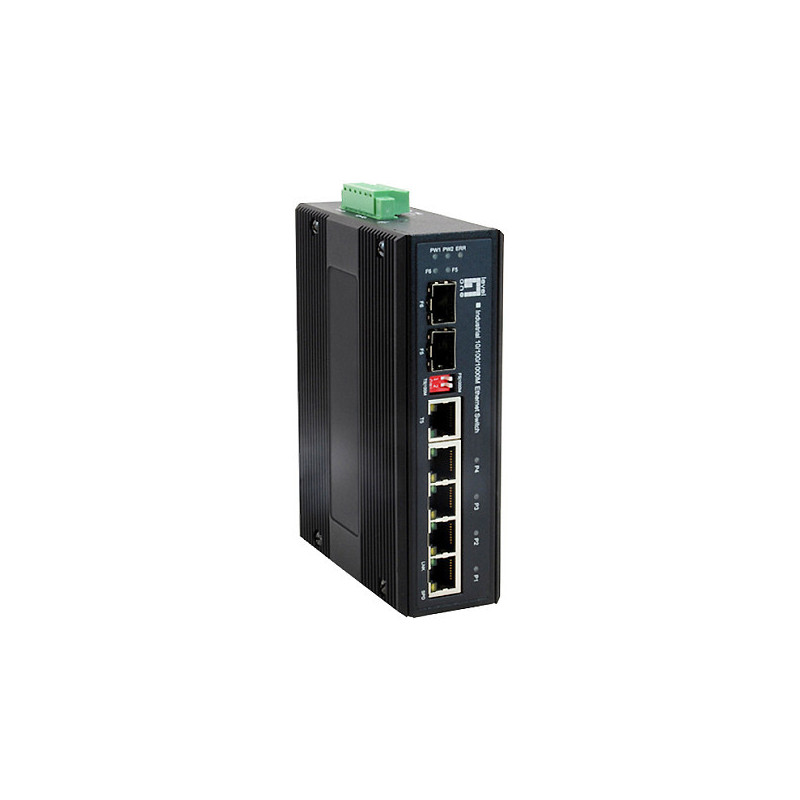

LevelOne IES-0600 Industry Ethernet Switch provides 4 ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers.

- 4 10/100/1000Base-T ports
- 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot
- 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex,
- Auto-Negotiation, Auto-MDI/MDIX
- 40°C to 75°C (-40°F to 167°F) operating temperature range
- DIN-Rail mount installation
- Metal case design and compliant with IP30 standard

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 12 Gbit/s
MAC address table: 1024 entries
Feature: Store-and-forward
Jumbo frames: 10000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 1 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting

Power

Input voltage: 5 - 56 V
Power protection features: Overload, Reverse polarity

Other features

Feature: Terminal block port

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

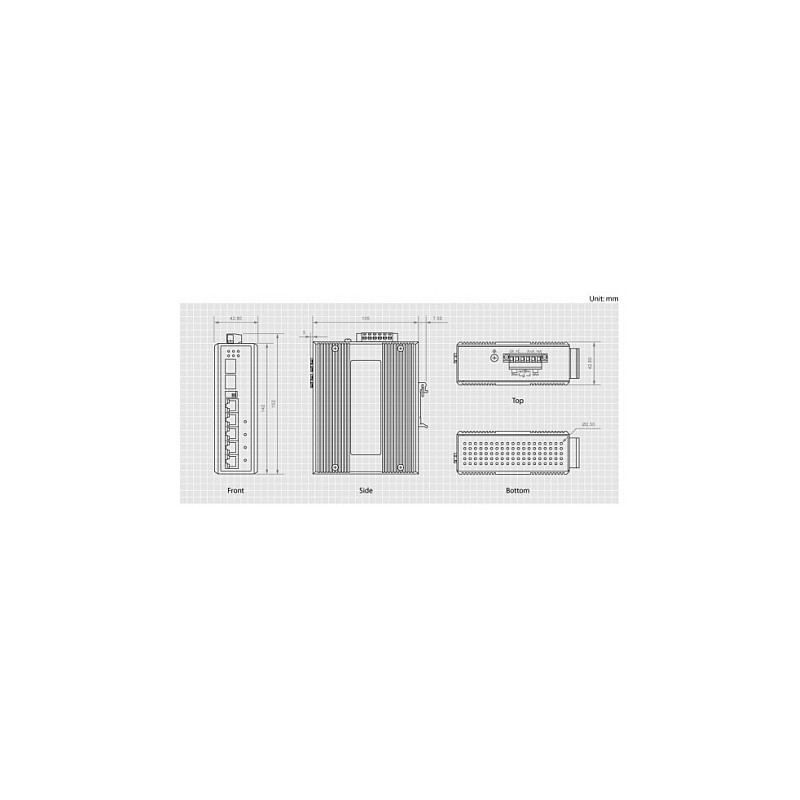

Weight & dimensions

Width: 40 mm
Depth: 105 mm
Height: 38 mm
Weight: 720 g

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 215 mm
Package depth: 165 mm
Package height: 65 mm
Package weight: 120 g

Logistics data

Country of origin: Taiwan
Harmonized System (HS) code: 85176990
