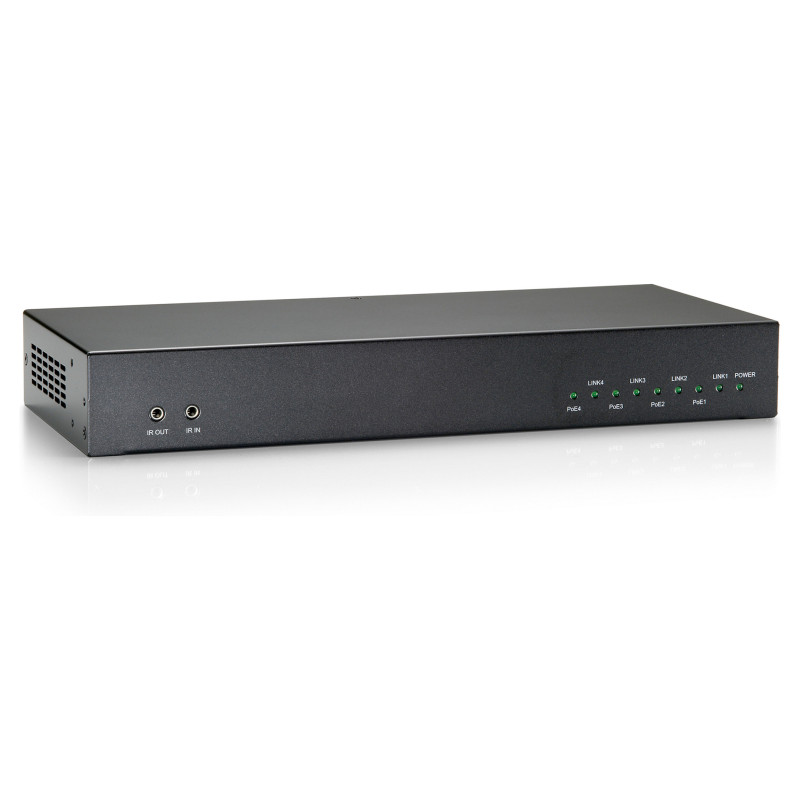

LevelOne HVE-9214PT AV ilgintuvas

LevelOne HDMI over Cat.5 Transmitter, HDBaseT, 100m, 4 Channel Outputs, 802.3af PoE. Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Operating voltage: 12 V, Power consumption (transmitter) (max): 5000 mA, Current: 6.6 A. Width: 300 mm, Depth: 160 mm, Height: 44 mm. Package dimensions (WxDxH): 280 x 160 x 120 mm, Package width: 280 mm, Package depth: 160 mm. Cables included: AC

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.

Key Features
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety

Features

Type: AV transmitter
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 100 m
Audio system: Multichannel
Audio output channels: 7.1 channels
LED indicators: Link, PoE, Power
Supported video modes: 1080p
Bandwidth: 10.2 Gbit/s
Feature: HDCP
Material: Metal
Colour depth: 36 bit
Feature: 3D
Feature: HDCP & EDID bypass
Feature: Consumer Electronics Control (CEC) support
Carrier frequency: 38 kHz
Baud rate: 115.2 Kbit/s
Feature: Plug and Play
Networking standards: IEEE 802.3af

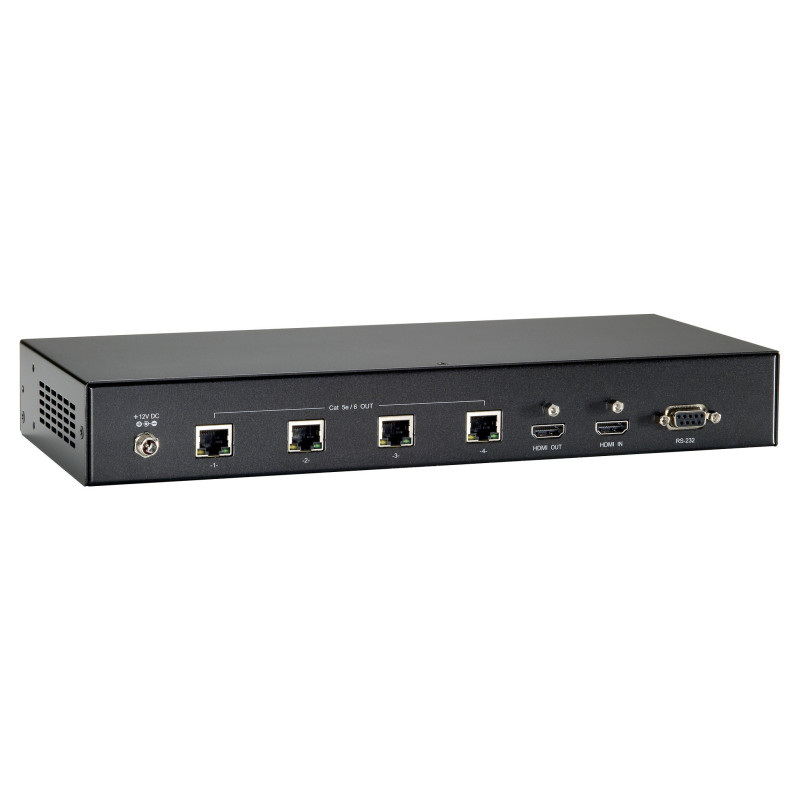

Ports & interfaces

RJ-45 output ports: 4
HDMI in: 1
Number of HDMI outputs: 1
RS-232 input ports: 1
Feature: 3.5 mm (1/8-inch) in
Feature: 3.5 mm (1/8-inch) out
Feature: DC-in jack

Power

Operating voltage: 12 V
Power consumption (transmitter) (max): 5000 mA
Current: 6.6 A
Feature: Power over Ethernet (PoE)

Weight & dimensions

Width: 300 mm
Depth: 160 mm
Height: 44 mm
Weight: 380 g
Transmitter dimensions (WxDxH): 300 x 160 x 44 mm
Transmitter weight: 1.27 kg

Packaging data

Package dimensions (WxDxH): 280 x 160 x 120 mm
Package width: 280 mm
Package depth: 160 mm
Package height: 120 mm
Package weight: 2.25 kg
Package type: Box

Packaging content

Feature: AC adapter included
Cables included: AC
Feature: Manual
Feature: Remote control included

Technical details

Country of origin: Taiwan
