LevelOne HVE-9211PR AV ilgintuvas

LevelOne HDMI over Cat.5 Receiver, HDBaseT, 100m, 802.3af PoE. Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Power consumption (receiver) (max): 1110 mA. Dimensions (WxDxH): 125 x 85 x 40 mm, Width: 125 mm, Depth: 85 mm. Package width: 190 mm, Package depth: 150 mm, Package height: 120 mm

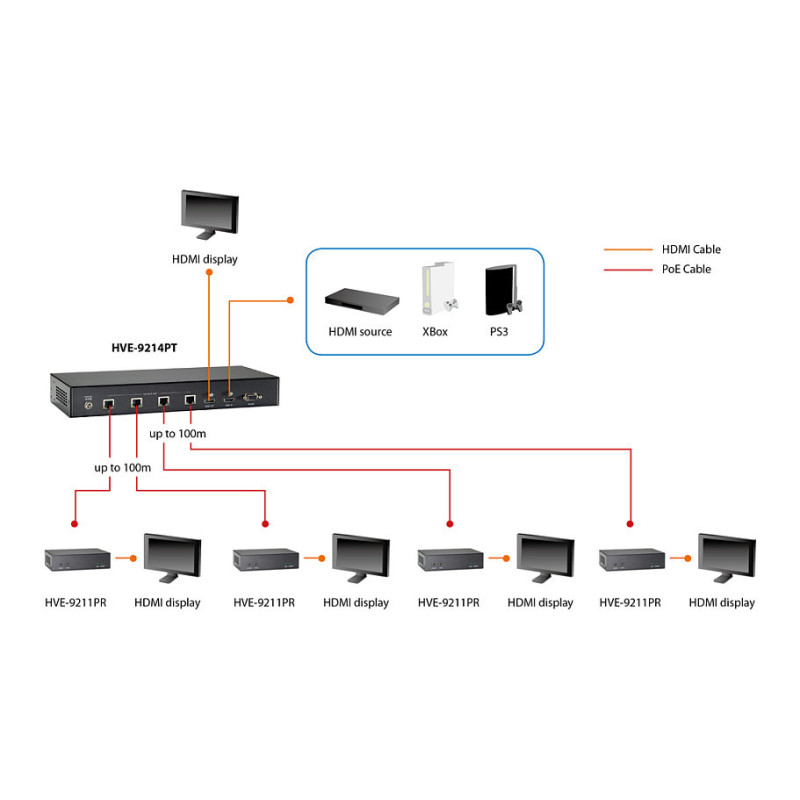

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.

Key Features
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through

Features

Type: AV receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 100 m

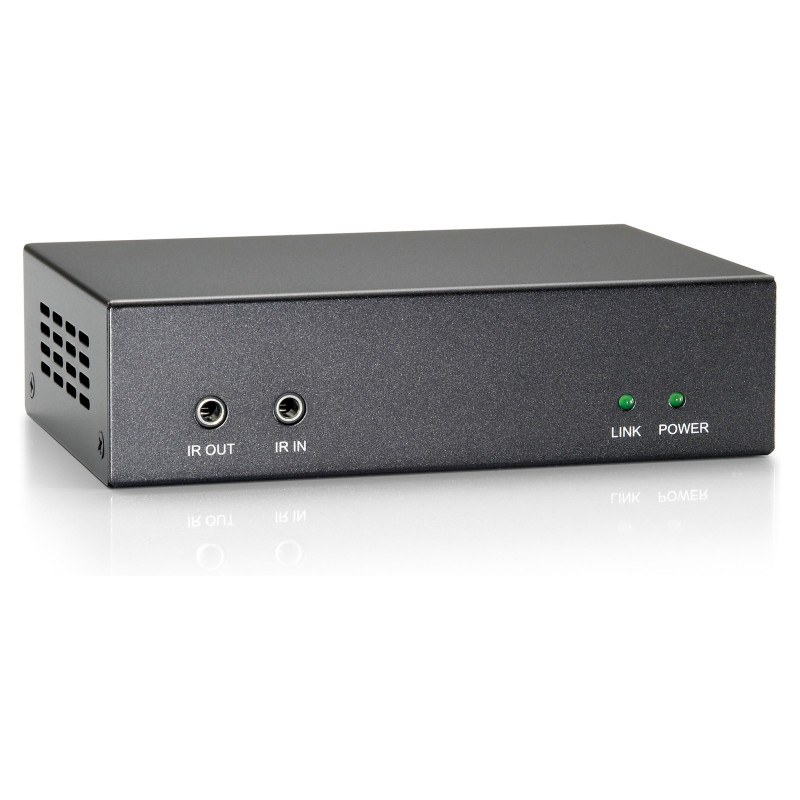

LED indicators: Activity, Power
Supported video modes: 720p, 1080p
Bandwidth: 10.2 Gbit/s
Bandwidth: 0.038 MHz
Feature: HDCP
Material: Metal
Colour depth: 48 bit
Feature: 3D
Feature: HDCP & EDID bypass
Baud rate: 115 Kbit/s
Feature: Plug and Play
Networking standards: IEEE 802.3af
Product colour: Black

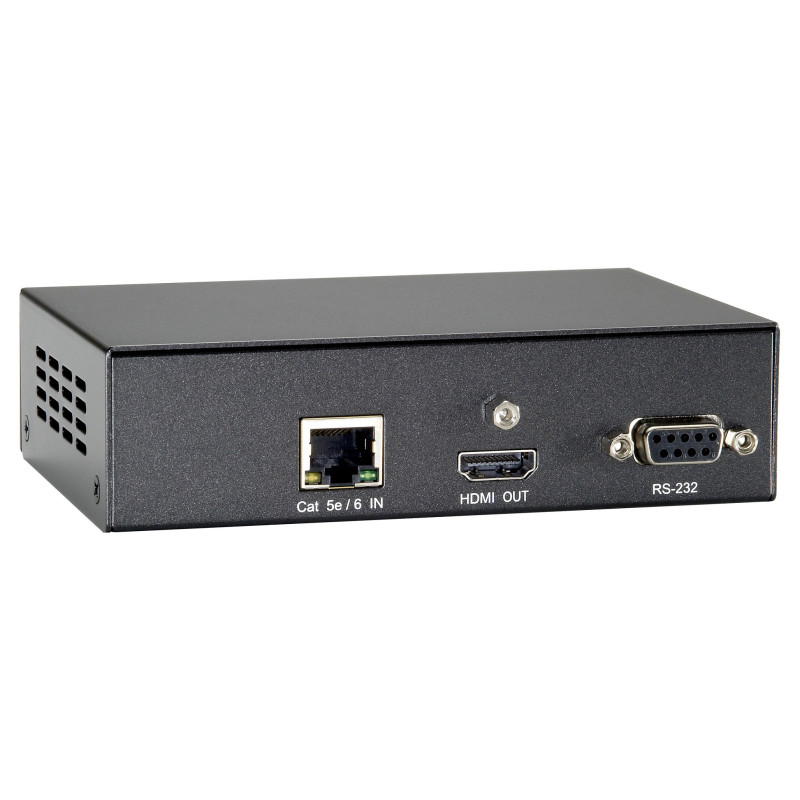

Ports & interfaces

Feature: Ethernet LAN
RJ-45 input ports: 1
RS-232 input ports: 1
Feature: 3.5 mm (1/8-inch) in
Feature: 3.5 mm (1/8-inch) out

Power

Power consumption (receiver) (max): 1110 mA
Feature: Power over Ethernet (PoE)

Weight & dimensions

Dimensions (WxDxH): 125 x 85 x 40 mm
Width: 125 mm
Depth: 85 mm
Height: 40 mm

Packaging data

Package width: 190 mm
Package depth: 150 mm
Package height: 120 mm
Package weight: 814 g

Packaging content

Feature: Manual
