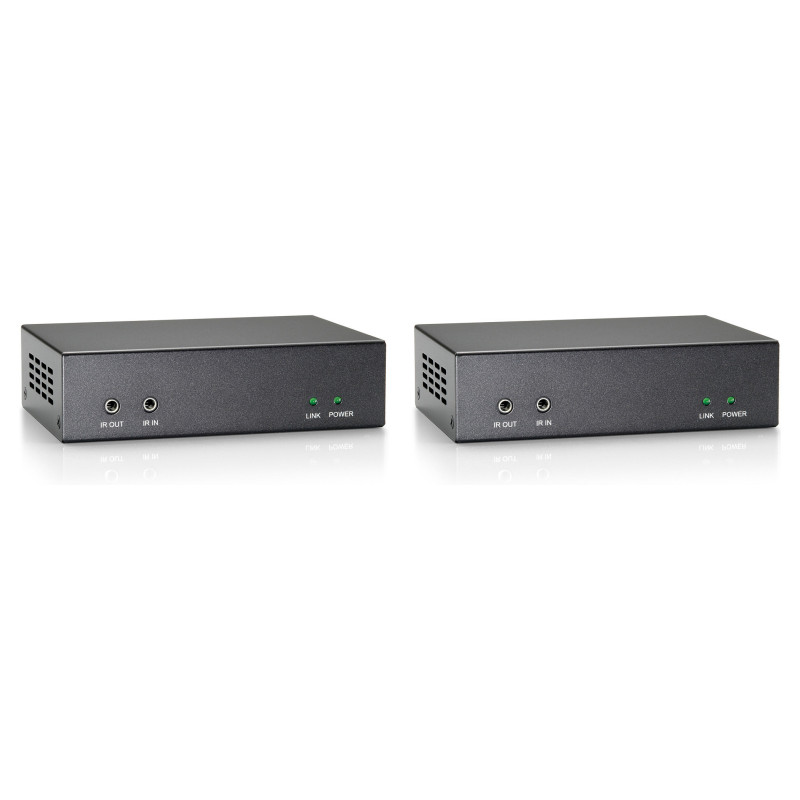

LevelOne HVE-9200P AV plėtiklis

LevelOne HDMI over Cat.5 Extender Kit, HDBaseT, 100m, 802.3af PoE. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5, Cat5e, Cat6. Operating voltage: 12 V, Current: 2 A. Width: 125 mm, Depth: 85 mm, Height: 40 mm. Package dimensions (WxDxH): 300 x 170 x 120 mm, Package width: 300 mm, Package depth: 170 mm. Cables included: AC

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5, Cat5e, Cat6
Maximum transfer distance: 100 m
LED indicators: Yes
Supported video modes: 1080p
Bandwidth: 10.2 Gbit/s
Material: Metal
Colour depth: 48 bit
Product colour: Grey

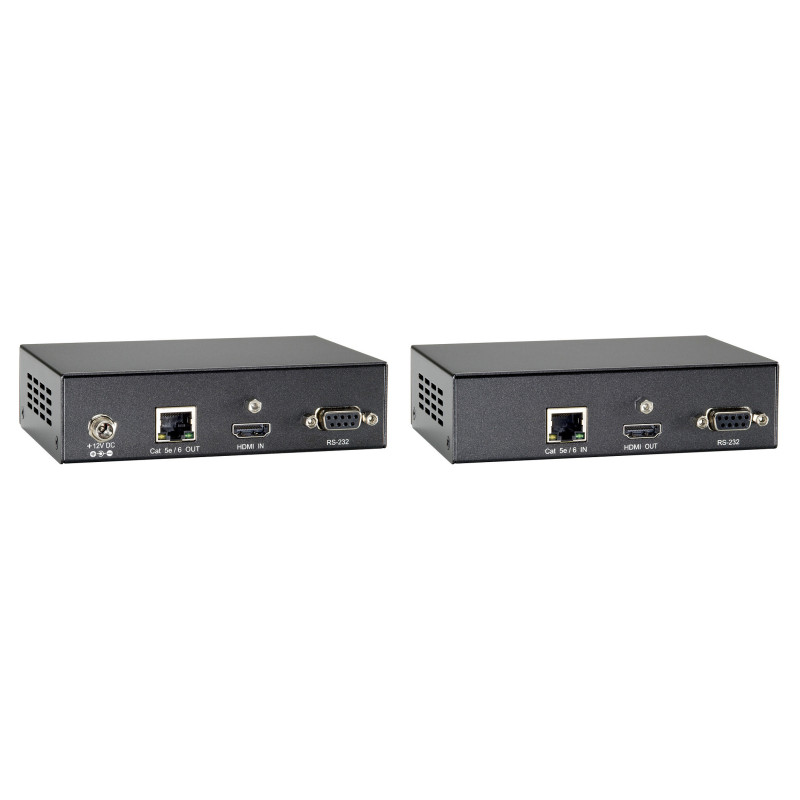

Ports & interfaces

RJ-45 input ports: 1
HDMI in: 1
Number of HDMI outputs: 1
RS-232 input ports: 2
Feature: DC-in jack

Power

Operating voltage: 12 V
Current: 2 A
Feature: Power over Ethernet (PoE)

Weight & dimensions

Width: 125 mm
Depth: 85 mm
Height: 40 mm
Receiver dimensions (WxDxH): 85 x 125 x 40 mm
Transmitter dimensions (WxDxH): 85 x 125 x 40 mm

Packaging data

Package dimensions (WxDxH): 300 x 170 x 120 mm
Package width: 300 mm
Package depth: 170 mm
Package height: 120 mm
Package weight: 1.45 kg

Packaging content

Feature: AC adapter included
Cables included: AC
Feature: Manual
