„LevelOne GTL-2881“ tinklo komutatorius

LevelOne KILBY 28-Port Stackable L3 Lite Managed Gigabit Switch, 2 x 10GbE SFP+, 1 x 10GbE Module Slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting

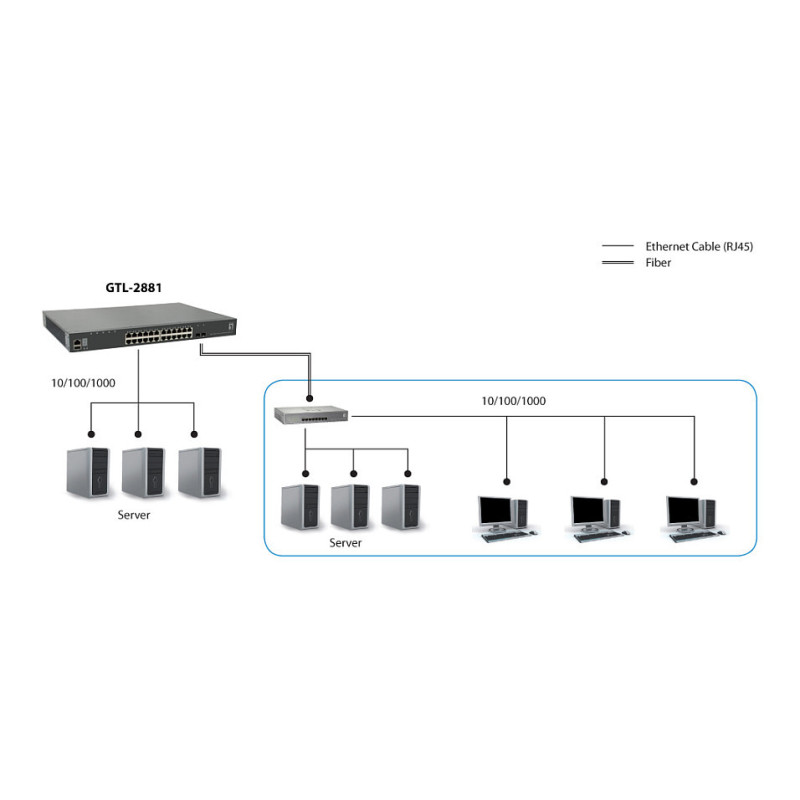

The GTL-2881 series includes high-performance Gigabit Ethernet Layer3 Lite switches featuring 28 ports; 24 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual-port module. The switch is ideal for high-performance server aggregations, such as enterprise data centers, where it can connect high-end or network-attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit-to-the-desktop for power users. This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 2
Fiber optic connector: SFP+
Console port: RJ-45

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet-based VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.23 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP snooping
Security algorithms: HTTPS
Feature: Static port security
Feature: SSH/SSL support
Feature: DoS attack prevention

Protocols

Management protocols: BOOTP/DHCP, SNTP, DNS, LLDP, RMON I, SNMP v1/v2/v3,
Feature: GARP VLAN Registration Protocol (GVRP)

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Grey
LED indicators: Diagnostic, System, Uplink
Safety: CB, UL

Performance

Physical stacking (units): 8
Virtual stacking (units): 36
Memory type: DRAM
Internal memory: 256 MB
Flash memory: 128 MB
Feature: Firmware upgradeable
Feature: Telnet
Mean time between failures (MTBF): 904213 h

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1.5 A
Power consumption (typical): 35 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 440 mm
Depth: 315 mm
Height: 44 mm
Weight: 3.7 kg

Packaging content

Cables included: AC, LAN (RJ-45)
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Feature: Rubber feet
Feature: Resource CD
Package width: 590 mm
Package depth: 390 mm
Package height: 133 mm
Package weight: 5.3 kg

Certificates

Certification: FCC Class A, CE, VCCI, WEEE, RoHS

Logistics data

Country of origin: China
Master (outer) case width: 590 mm
Master (outer) case length: 390 mm
Master (outer) case height: 133 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 5.3 kg
Products per master (outer) case: 1 pc(s)
