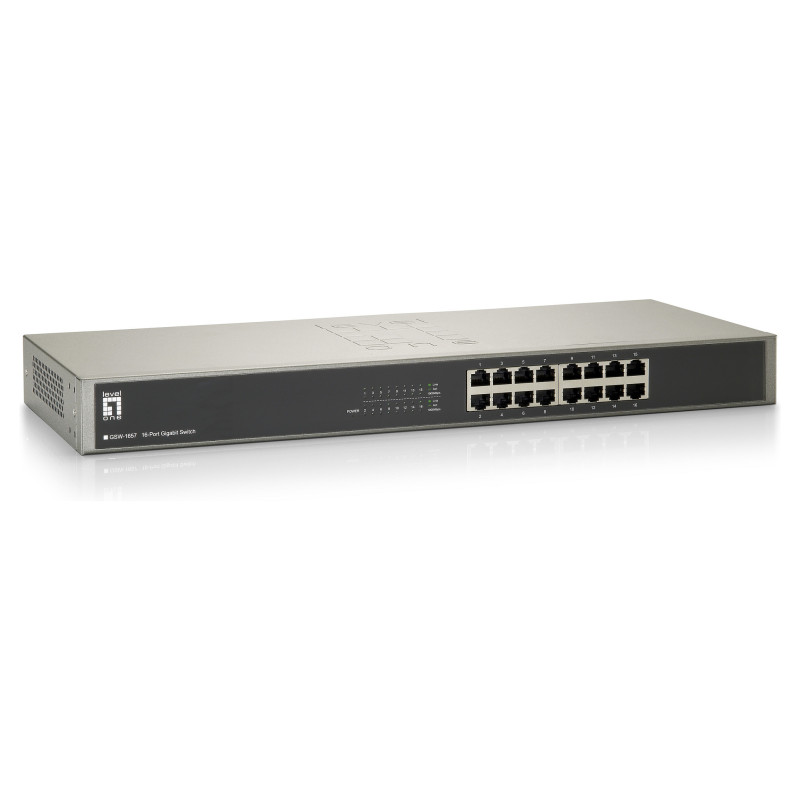

„LevelOne GSW-1657“ tinklo komutatorius

LevelOne 16-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Rack mounting

Gigabit Speeds: Take Your Data to the Next Level
GSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers.

Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Standards-based
GSW-1657 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.

Plug and Play, Flexible and Easy
GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat6, Cat7
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X

Data transmission

Switching capacity: 32 Gbit/s
MAC address table: 8192 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 0.5 MB

Design

Feature: Rack mounting
Product colour: Black, Grey
LED indicators: Activity, Link

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 0.6 A
Power consumption (typical): 13.3 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 140 mm
Depth: 440 mm
Height: 44 mm
Weight: 1.48 kg

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Feature: Mounting brackets included
Package width: 224 mm
Package depth: 486 mm
Package height: 77 mm
Package weight: 2.15 kg

Certificates

Certification: FCC, CE

Logistics data

Master (outer) case width: 405 mm
Master (outer) case length: 500 mm
Master (outer) case height: 240 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 11.8 kg
