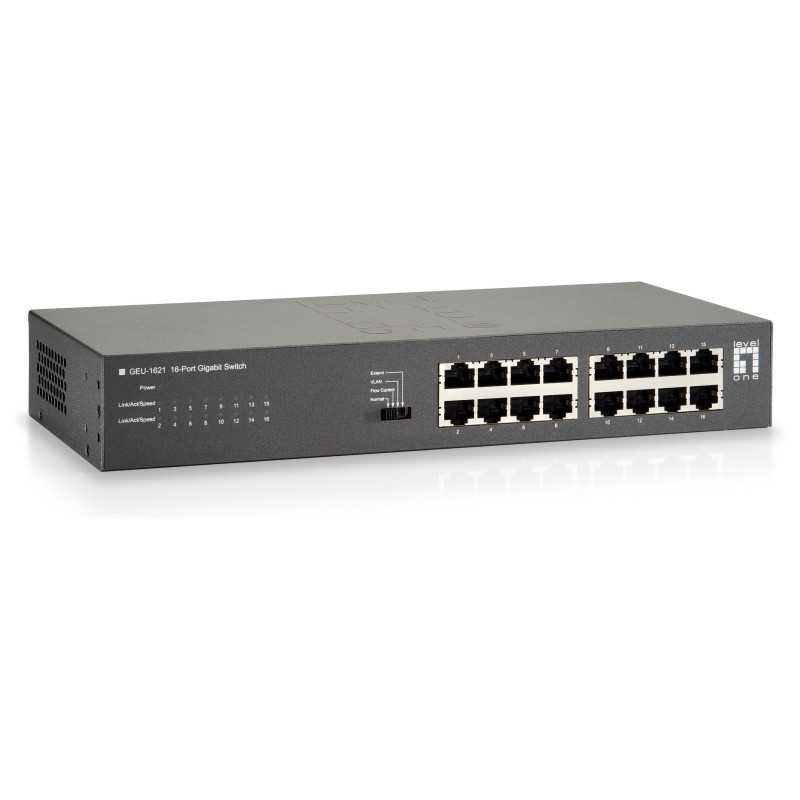

„LevelOne GEU-1621“ tinklo komutatorius

LevelOne 16-Port Gigabit Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting

The GEU-1621 is equipped with 16 Gigabit ports that lead you to a real Gigabit connections. Users are able to transfer large and high bandwidth-needed files faster, and hence get a real improvement of efficiency.Offers a fast and reliable networkThe store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow control ensures the correctness of data transmitting. The IEEE 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes.Power Saving FeaturesThe GEU-1621 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising the performance. The switch automatically enters the sleep mode, if there is no link activity detected, using less energy than idling at full power.Easy Installation and MaintenanceThe switch supports Nway auto-negotiation protocol to detect the networking speed (10/100/1000 Mbps) and the duplex modes (Full/Half) automatically. Auto-MDI/MDI-X function eliminates the effort to use crossover cables. Diagnostic LEDs are provided to get real-time information of the connection status and network.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16

Network

Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 1.488 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000

Design

Feature: Rack mounting
Product colour: Grey

Performance

Feature: Built-in processor
Processor model: Realtek RTL8382L
Flash memory: 4 MB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 10.1 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 280 mm
Depth: 180 mm
Height: 44 mm
Weight: 2.6 kg

Packaging content

Feature: Manual
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 258 mm
Package depth: 340 mm
Package height: 66 mm
Package weight: 1.7 kg

Technical details

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 155.5 cm

Logistics data

Products per pallet: 22 pc(s)
Country of origin: China
Master (outer) case width: 353 mm
Master (outer) case length: 355 mm
Master (outer) case height: 280 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 10.4 kg
Products per master (outer) case: 5 pc(s)
