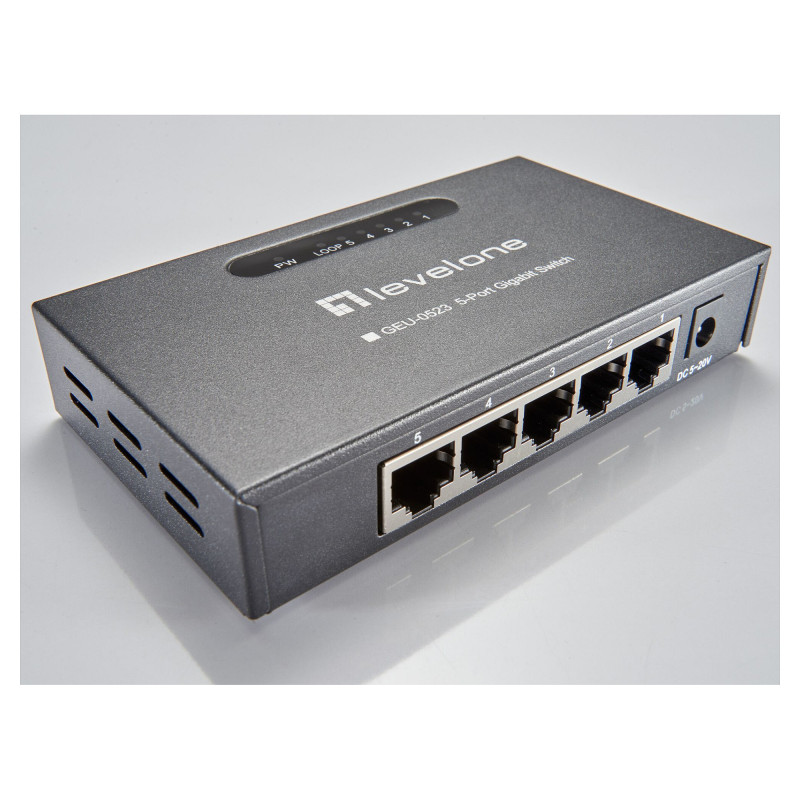

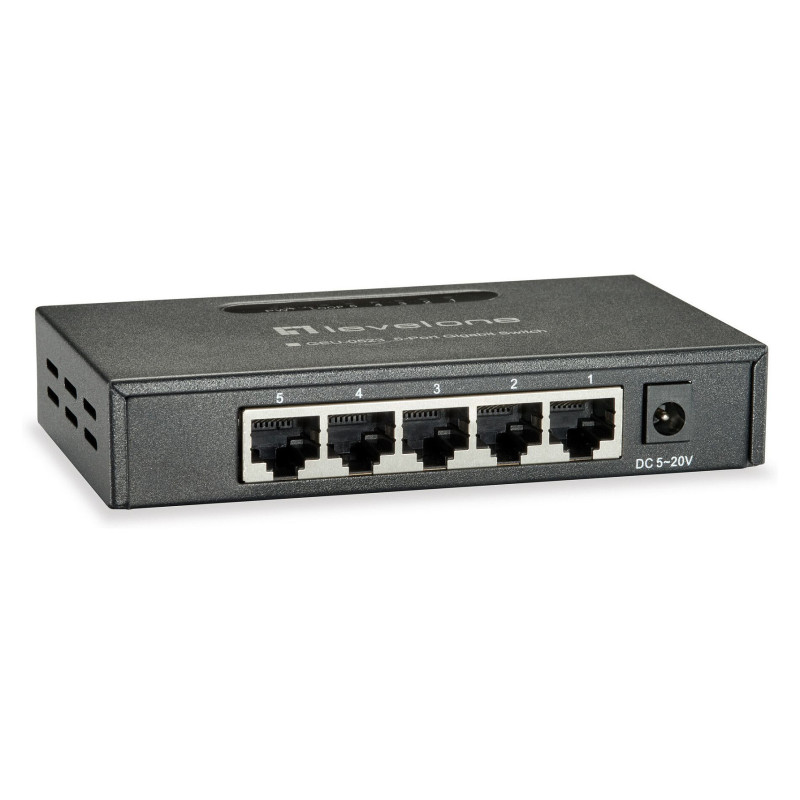

„LevelOne GEU-0523“ tinklo komutatorius

LevelOne GEU-0523. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3az. DC input voltage: 5 V. Wall mountable

The LevelOne GEU-0523 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch. The GEU-0523 is the ideal and cost-effective choice for expanding your network.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3az
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Transmission method: Store- froward
Packet forwarding rate (1 Gbps): 1488000 pps

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes

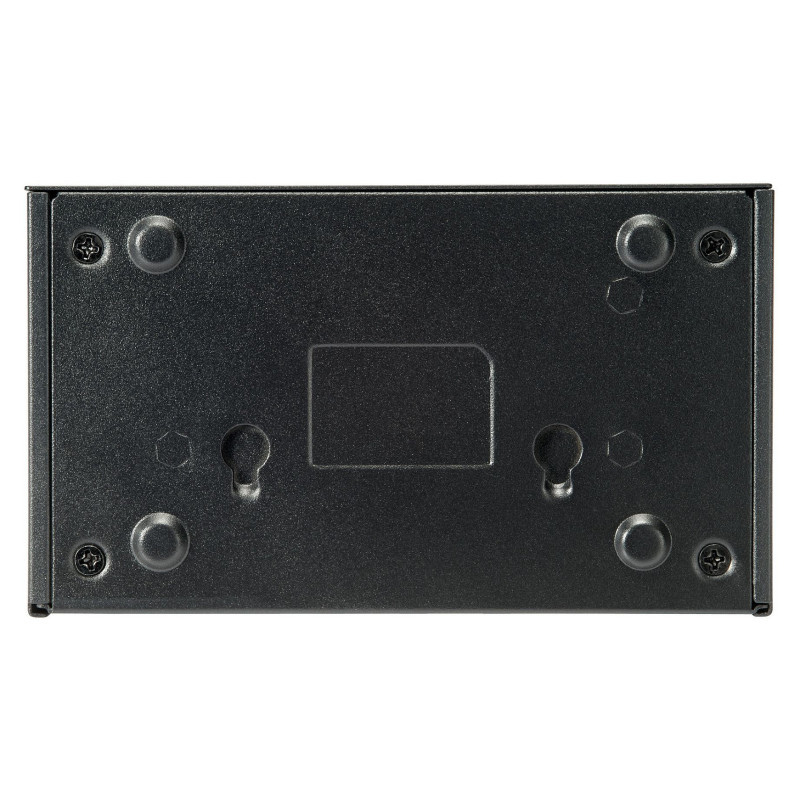

Feature: Wall mountable

Performance

Feature: Built-in processor
Processor model: MT7530D
Flash memory: 1024 MB

Power

DC input voltage: 5 V
Input current: 0.5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 124 mm
Depth: 72 mm
Height: 24 mm
Weight: 174 g

Packaging content

Feature: Quick start guide
Feature: Manual

Packaging data

Feature: AC adapter included
Package width: 138 mm
Package depth: 80 mm
Package height: 80 mm
Package weight: 290 g

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
