„LevelOne GEU-0522“ tinklo komutatorius

LevelOne 5-Port Gigabit Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

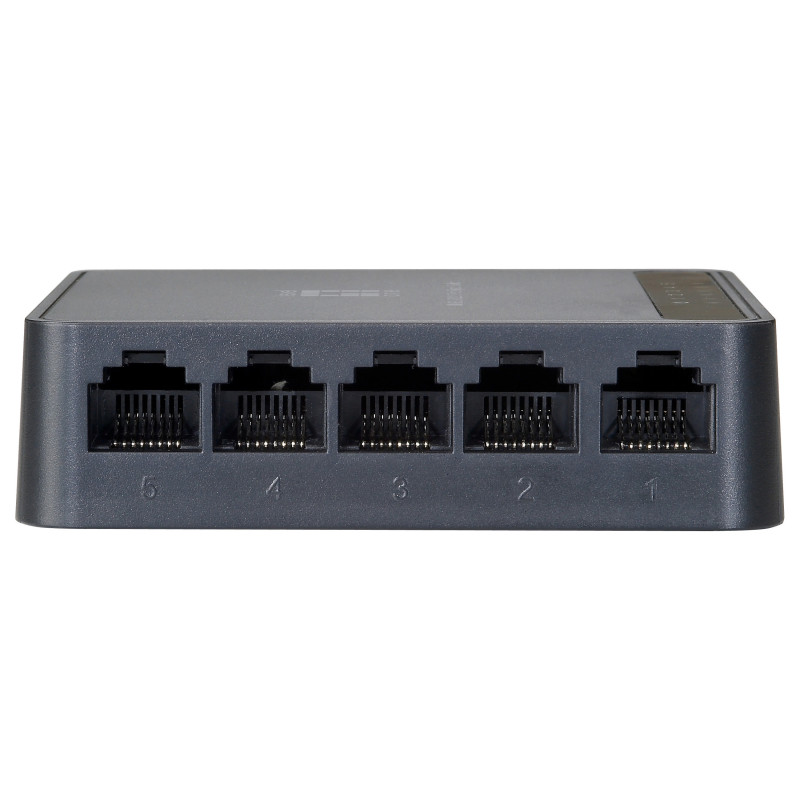

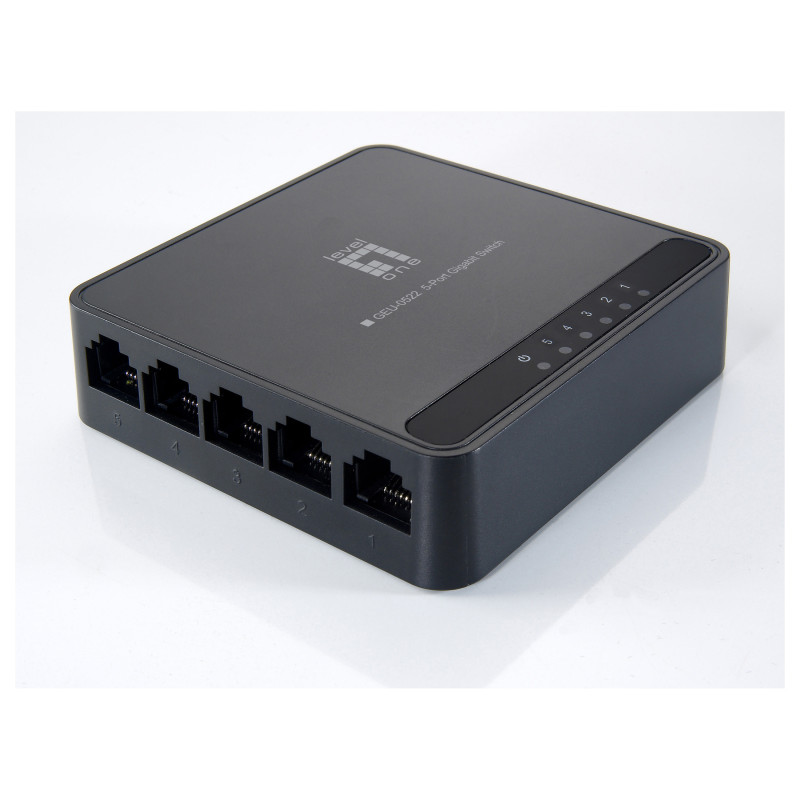

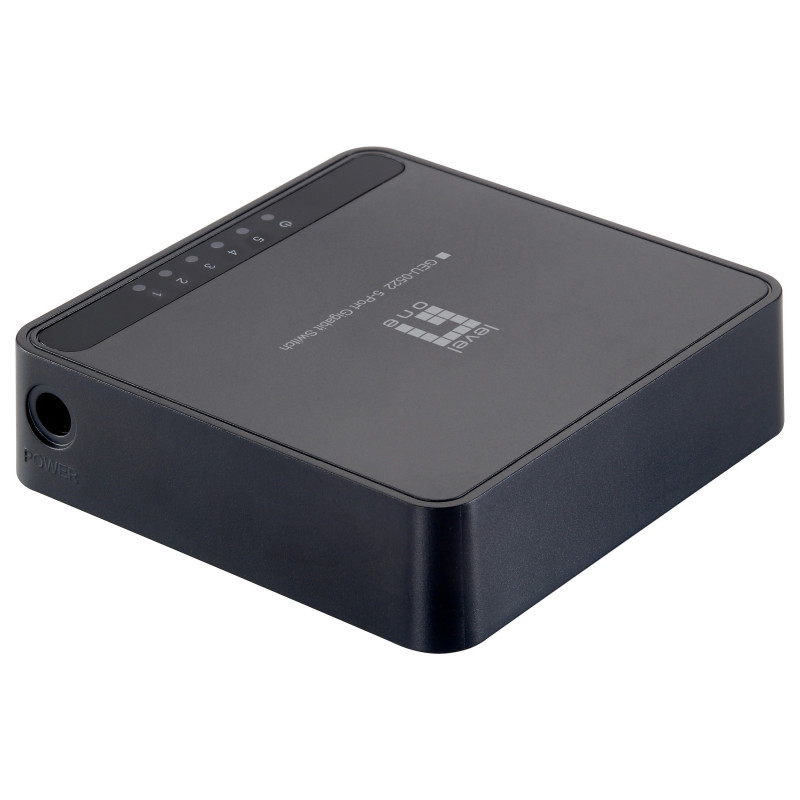

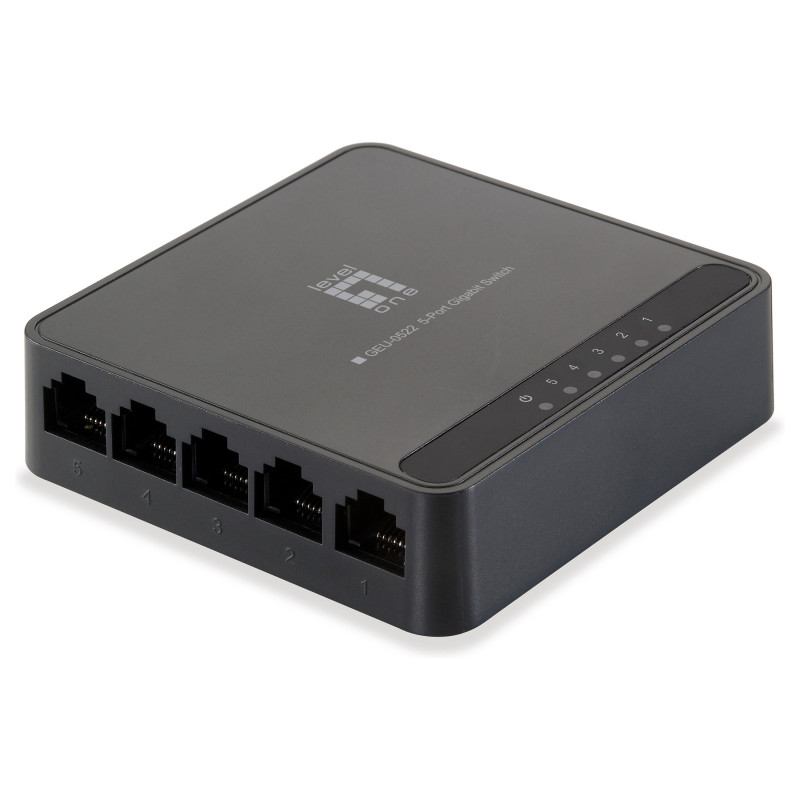

The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Full duplex
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 1000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet forwarding rate (1 Gbps): 1488100 pps
Packet forwarding rate (100 Mbps): 148810 pps
Packet forwarding rate (10 Mbps): 14880 pps

Design

Product colour: Black
LED indicators: Activity, Link, Power

Performance

Buffer size: 64 KB

Power

Input current: 0.6 A
Input voltage: 5 V

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 86 mm
Depth: 23 mm
Height: 89 mm
Weight: 71.4 g

Packaging content

Feature: Quick start guide

Packaging data

Feature: AC adapter included
Package type: Box
Package width: 95 mm
Package depth: 82 mm
Package height: 98 mm
Package weight: 184 g

Certificates

Certification: CE, FCC

Logistics data

Country of origin: China
Master (outer) case width: 495 mm
Master (outer) case length: 191 mm
Master (outer) case height: 516 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 10.2 kg
Products per master (outer) case: 50 pc(s)
