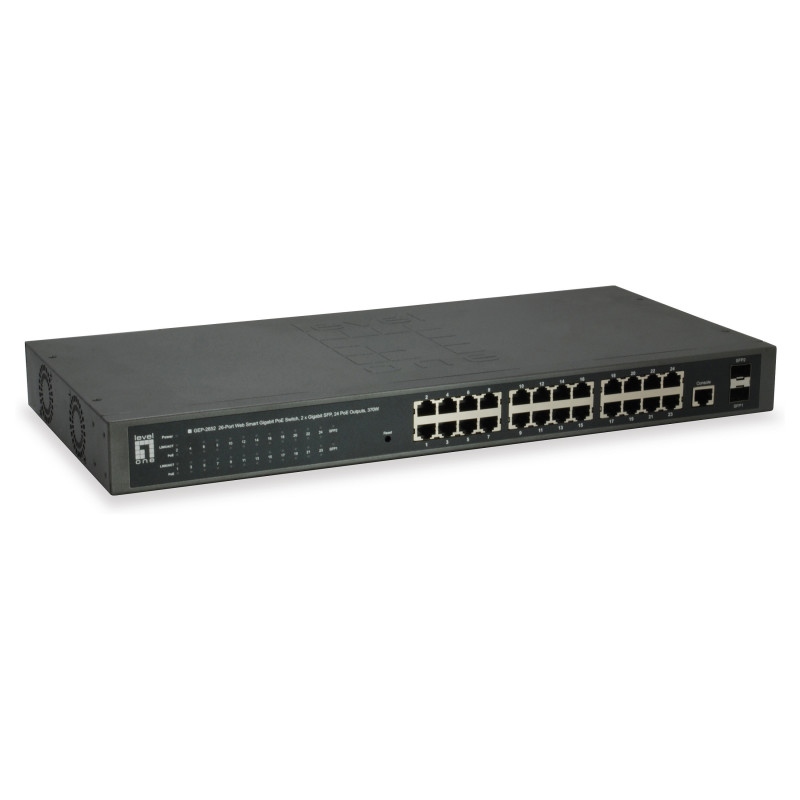

„LevelOne GEP-2652“ tinklo komutatorius

LevelOne GEP-2652. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

The LevelOne GEP-2652, the latest web smart generation, is equipped with 24 PoE ports and 2 Gigabit SFP ports. It offers powerful Layer2 capabilities, enhanced PoE functionality and a total PoE budget of 370W. The switch also supports advanced IPv6 management, IPv6 security and IPv6 multicast control to accommodate the growth of IPv6 deployment. Moreover, at an exceptional price/performance ratio.

The PoE-enabled GEP-2652 has IEEE 802.3af/at certification, eliminating the challenges associated with standardized devices. It is therefore ideal for companies that want to operate VoIP telephones, wireless access points or network cameras. The GEP-2652 supports up to 30W output power per PoE port, giving you power distribution flexibility for a wide range of PoE PD devices. Adjust your network infrastructure as your business grows and save operating costs with easier management.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24

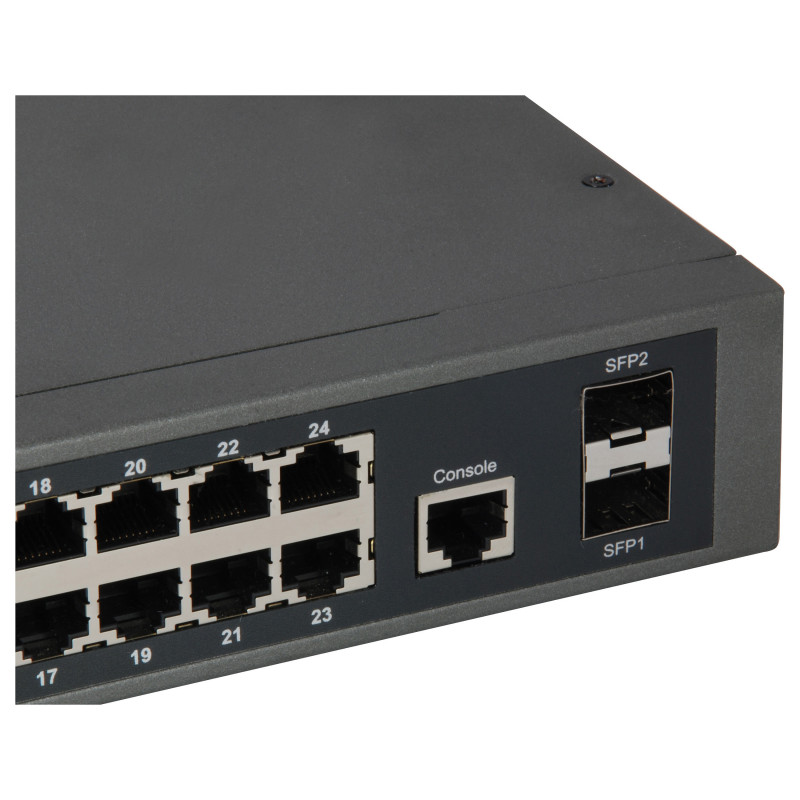

SFP module slots quantity: 2
Console port: RJ-45

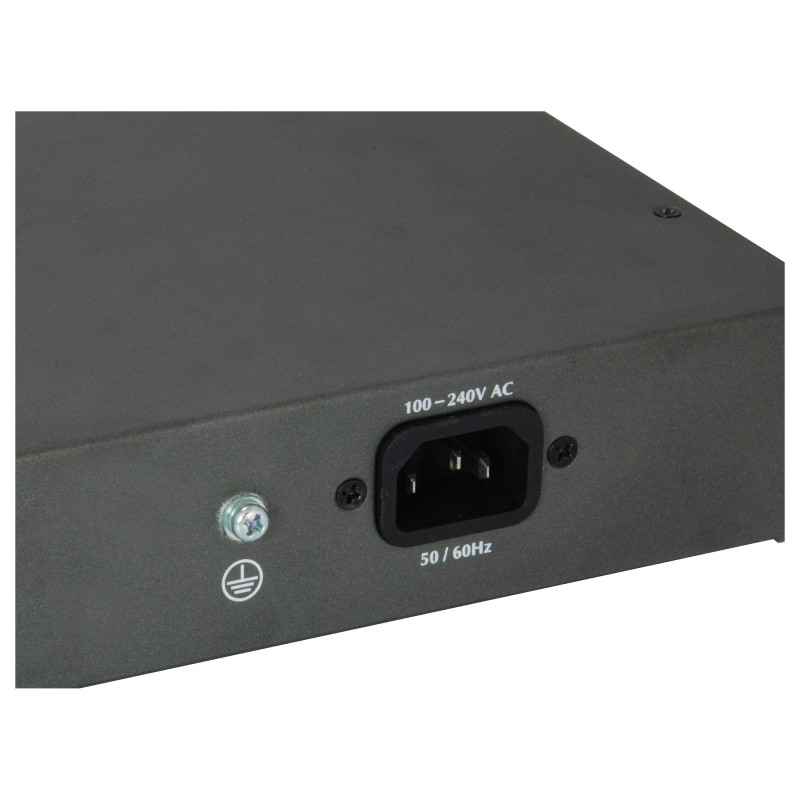

Power connector: AC-in jack

Network

Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Network virtualization technologies: Q-in-Q tunneling
QinQ implementation: Selective QinQ
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Number of VLANs: 4000

Data transmission

Forwarding rate: 38.69 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 128 MB

Security

DHCP features: DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IGMP proxy
Security algorithms: SNMPv3
Feature: SSH/SSL support
Authentication: Guest VLAN, Web-based authentication
Feature: Password protection
Feature: DoS attack prevention
Authentication type: RADIUS
Queue scheduling algorithms: Priority queuing (PQ), Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: v1/v2

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features: IPv6 Telnet

Design

Feature: Rack mounting
Product colour: Grey
Housing material: Metal
Feature: Reset button

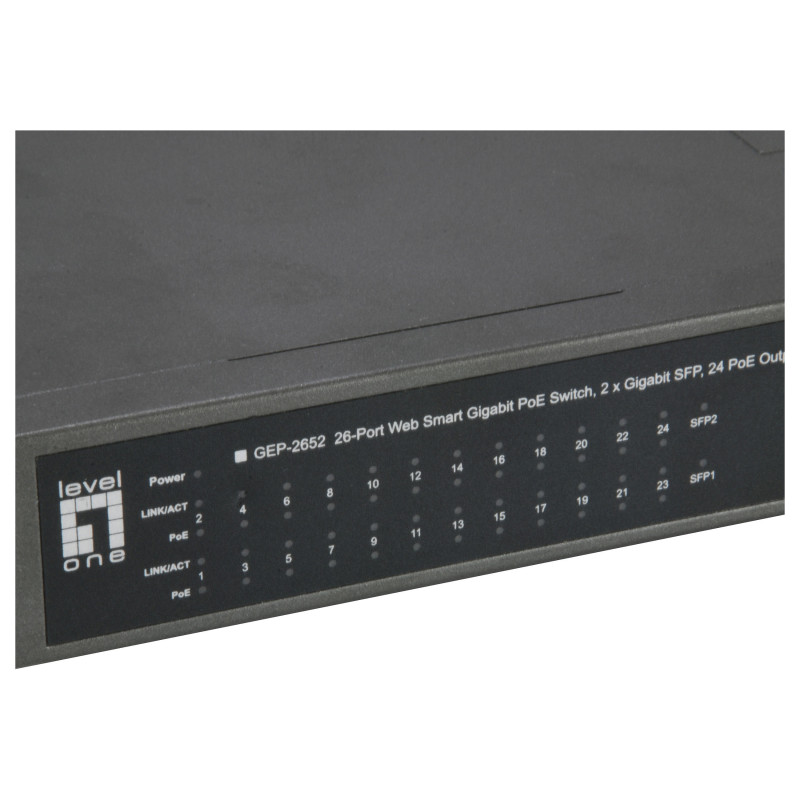

LED indicators: Link, PoE, Power

Performance

Internal memory: 8 MB
Feature: Firmware upgradeable
Feature: Telnet

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 6.5 A
Power consumption (max): 435 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 440 mm
Depth: 208 mm
Height: 44 mm
Weight: 3.87 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Feature: Rubber feet
Feature: Resource CD
Package width: 555 mm
Package depth: 295 mm
Package height: 88 mm
Package weight: 4.2 kg

Certificates

Compliance certificates: RoHS
Certification: CE

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
