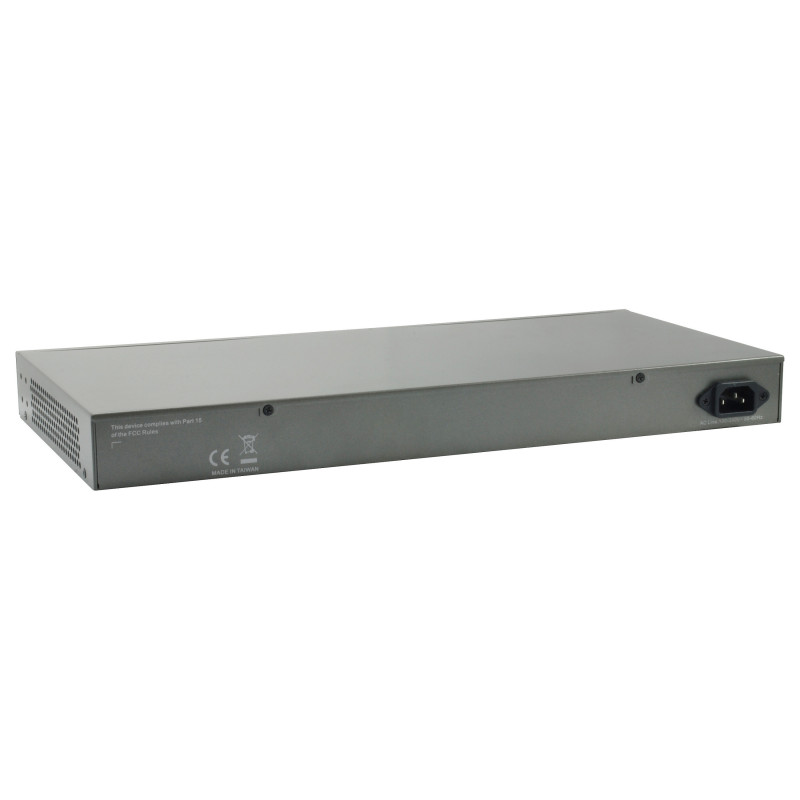

„LevelOne GEP-2651“ tinklo komutatorius

LevelOne TURING 26-Port Web Smart Gigabit PoE Switch, 24 PoE Outputs, 2 x SFP/RJ45 Combo, 185W, 802.3at/af PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

GEP-2651 Web Smart Gigabit PoE Switch is a next-generation Ethernet Switch offering powerful L2 features, Layer 3 Static Route, better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GEP-2651 delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 185W) ports and 2 Combo GbE RJ45/SFP ports. GEP-2651 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2651 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Key Features
- 24 PoE-Plus Gigabit Ethernet ports and 2 Gigabit SFP slots
- QoS control for traffic prioritization and bandwidth management
- DHCP Client/Server
- Supports IPv4/IPv6 network operation
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
- Supports port-based VLAN, IEEE 802.1Q VLAN Tagging
- IEEE 802.3ad LACP for auto port aggregation

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Combo SFP ports quantity: 2

Network

Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs: 256

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 52 Gbit/s
Forwarding rate: 38.7 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9600

Security

DHCP features: DHCP server, DHCP snooping, DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS
Feature: Static port security
Feature: Loop protection
Feature: BPDU filtering/protection

Protocols

Supported network protocols: IPv4/IPv6

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button
LED indicators: Activity, Link, PoE, Speed
Safety: UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10

Performance

Internal memory: 128 MB
Flash memory: 32 MB
Feature: Firmware upgradeable
Buffer size: 512 KB
Mean time between failures (MTBF): 211272 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 18.29 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 185 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442 mm
Depth: 211 mm
Height: 44 mm
Weight: 3.1 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Manual

Packaging data

Package width: 300 mm
Package depth: 520 mm
Package height: 90 mm
Package weight: 3.5 kg

Certificates

Certification: CE, FCC Part 15 Class A, RoHS

Logistics data

Country of origin: Taiwan
Master (outer) case width: 482 mm
Master (outer) case length: 540 mm
Master (outer) case height: 324 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 21 kg
Products per master (outer) case: 5 pc(s)
