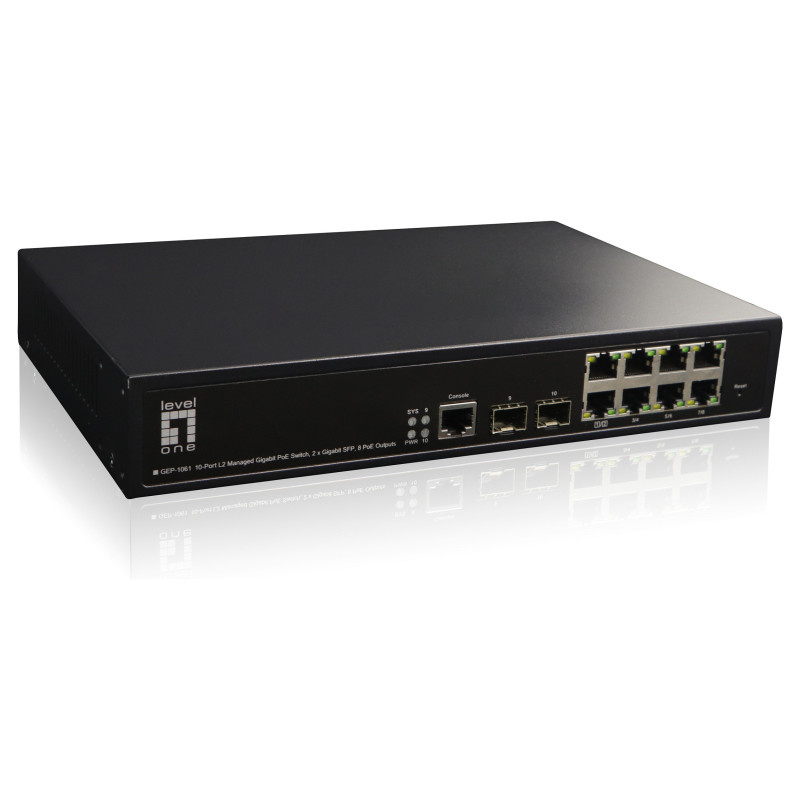

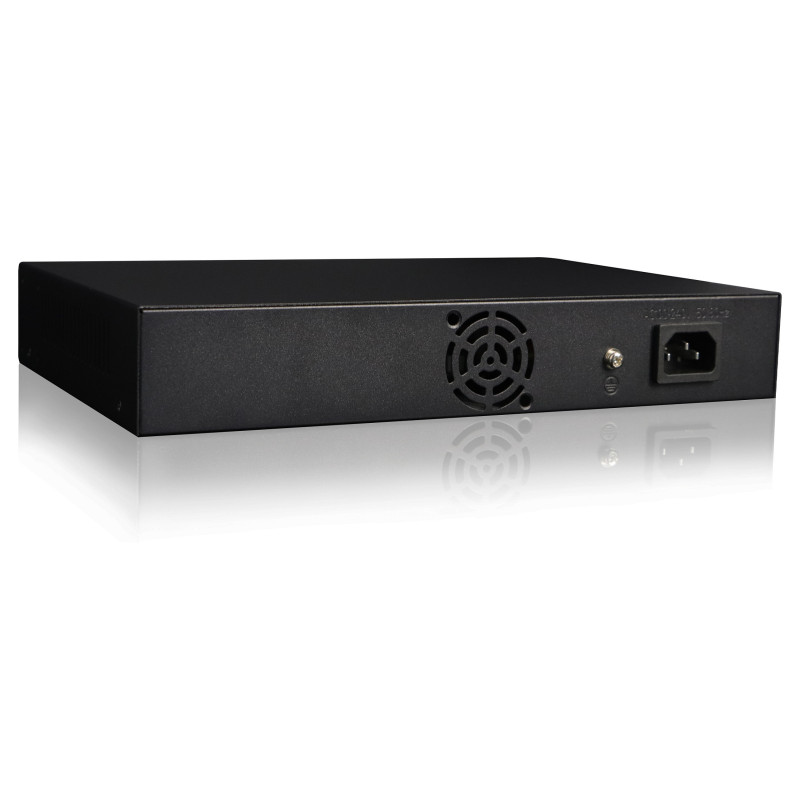

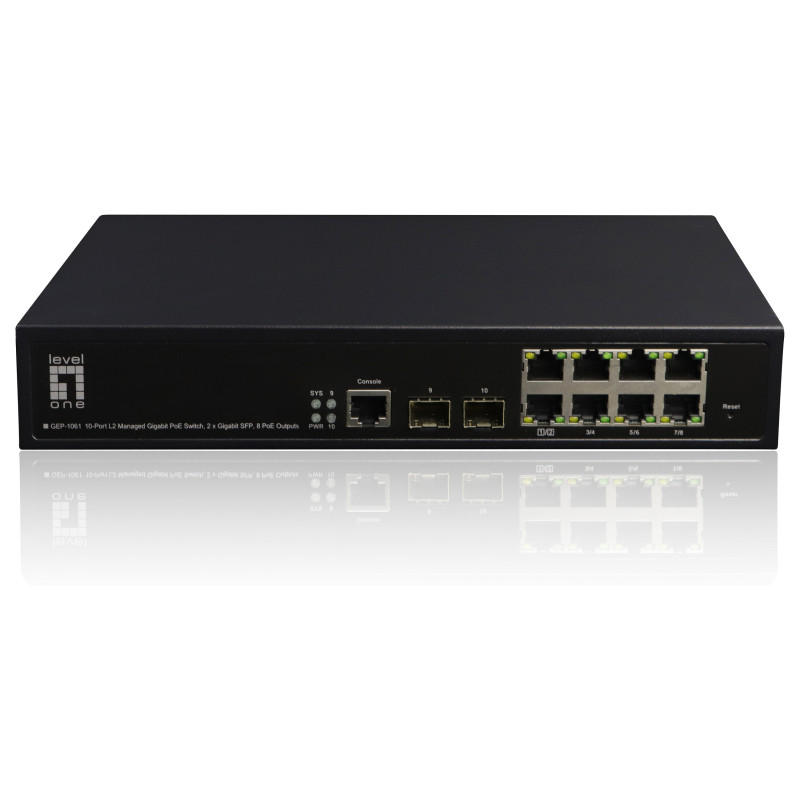

„LevelOne GEP-1061“ tinklo komutatorius

LevelOne KILBY 10-Port L2 Managed Gigabit PoE Switch, 2 x SFP, 802.3at/af PoE, 125W, 8 PoE Outputs. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

The GEP-1061 is LevelOne latest generation of 10-Port L2 Managed Gigabit PoE Switch, with 2 Gigabit SFP Uplink ports. also offers powerful Web Smart configuration for PoE management, and QoS / VLAN / MSTP / Multi-broadcast / ports management features. Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 20Gbps and bring Gigabit speeds all the way to your computers.

The GEP-1061 PoE-enabled switches features an IEEE 802.3af/at/bt standard, better PoE functionality with 180W PoE power budget and usability. supports up to 2 ports at 90W, or 6 ports at 30W or 8 ports at 15.4W to meet the increasing power demands of users. giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Traffic classification
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Fiber ports quantity: 2
Fiber optic connector: SFP
Console port: RJ-45

Network

Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN
Number of VLANs: 4000

Optical fiber

Fiber ethernet cabling technology: 100BASE-X, 1000BASE-X

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.9 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Number of trunks: 8
Number of queues: 8
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 512
Feature: IGMP snooping
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Feature: Password protection
Feature: DoS attack prevention

Multicast features

Feature: Multicast support

Protocols

IPv4 & IPv6 features: IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button
LED indicators: Activity, Link, Power

Performance

Internal memory: 32 MB
Noise level: 0 dB
Feature: Telnet

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 80 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 125 W

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 181 mm
Depth: 270 mm
Height: 44 mm
Weight: 800 g

Packaging content

Cables included: AC, LAN (RJ-45)
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Blister
Feature: Resource CD
Package width: 255 mm
Package depth: 82 mm
Package height: 345 mm
Package weight: 2 kg

Certificates

Certification: CE class A, FCC, UL, VCCI, BSMI

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
