„LevelOne GEP-0925“ tinklo komutatorius

LevelOne GEP-0925. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 15000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u,.... DC input voltage: 52 V. Power connector: DC-in jack. Power over Ethernet (PoE)

The LevelOne 2.5 Gigabit PoE Switch delivers exceptional performance with multi-gigabit PoE ports and a high-speed uplink, making it an ideal solution for businesses seeking to scale their networks with efficiency and ease. Whether for small businesses, branch offices, or home setups, this switch offers high performance and versatility for any network configuration.

Advanced PoE Capabilities:

Supporting IEEE 802.3at/af and 802.3bt (Port 1), the RJ45 ports provide speeds of up to 2500 Mbps while powering multiple devices like IP cameras, access points, and VoIP phones, eliminating the need for separate power supplies.

High-Speed Uplinks:

The 10G SFP+ port ensures ultra-fast uplinks to core switches or data centers, enabling smooth traffic flow without bottlenecks.

Management features

Switch type: Unmanaged

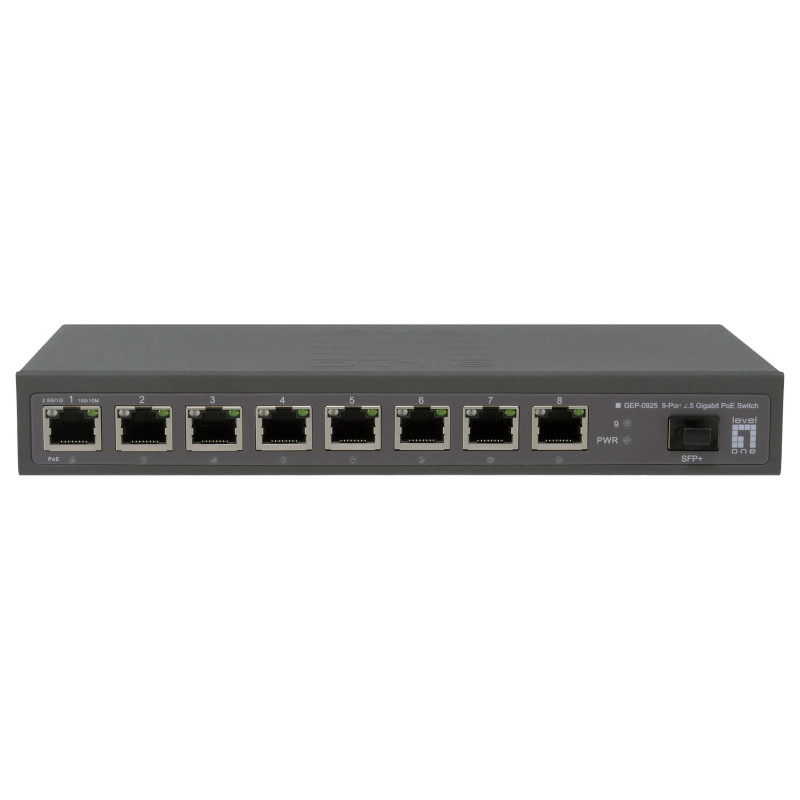

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 1

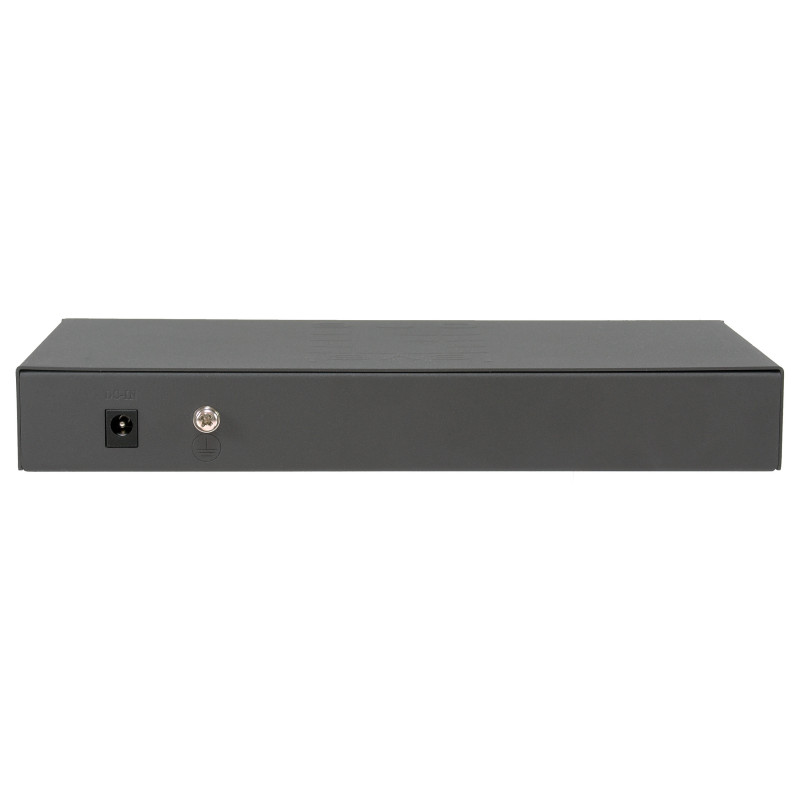

Power connector: DC-in jack

Network

Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Full duplex
Feature: Flow control support
Ethernet LAN data rates: 2500,10000 Mbit/s
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 60 Gbit/s
Forwarding rate: 44 Mpps
MAC address table: 15000 entries
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 8 MB

Design

Product colour: Black
LED indicators: Link, PoE, Power

Performance

Feature: Fanless
Mean time between failures (MTBF): 300000 h

Power

Power source: DC
Feature: Power supply included
DC input voltage: 52 V
Input current: 2.5 A
Power consumption (typical): 2 W
Power consumption (max): 127 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 170 mm
Depth: 70 mm
Height: 28 mm
Weight: 380 g

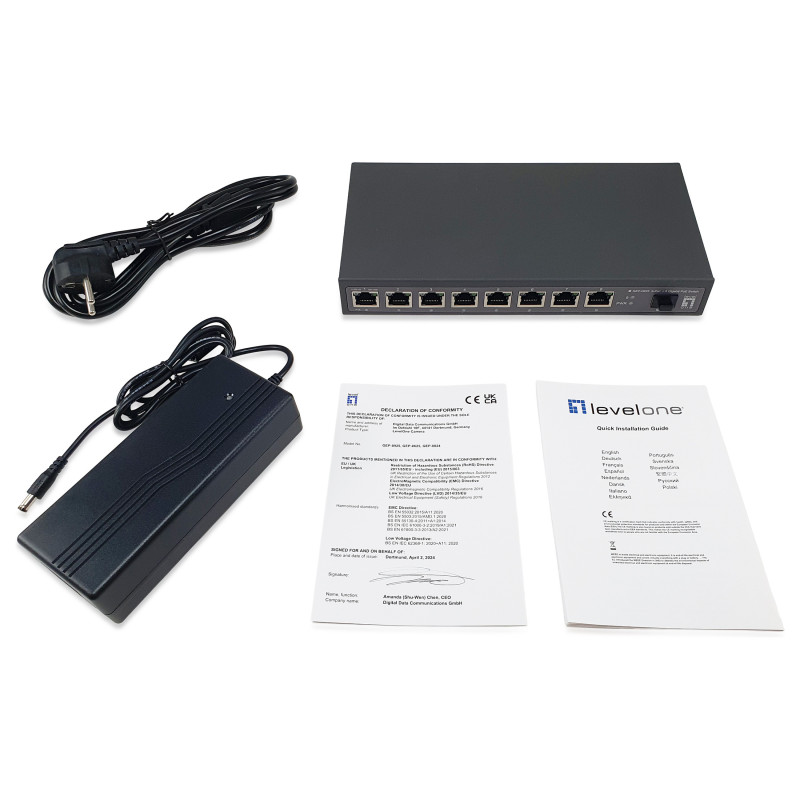

Packaging content

Cables included: AC
Feature: Manual

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)
