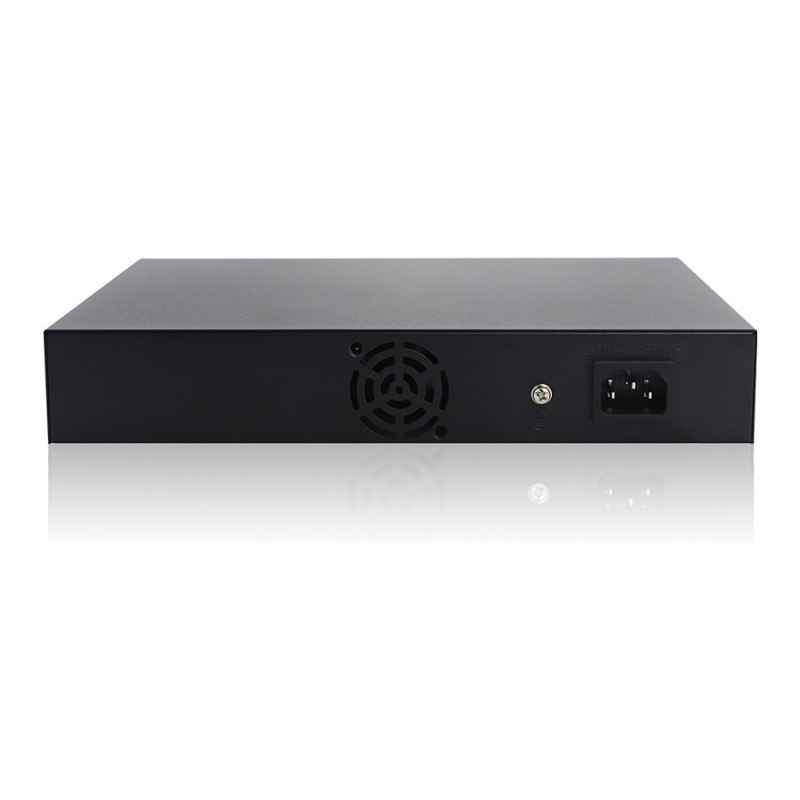

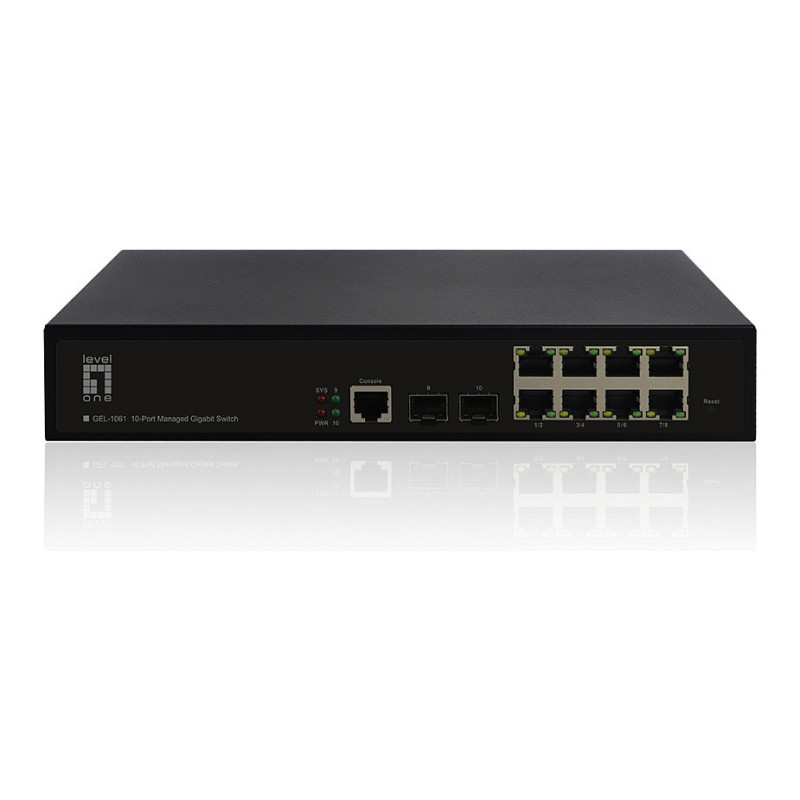

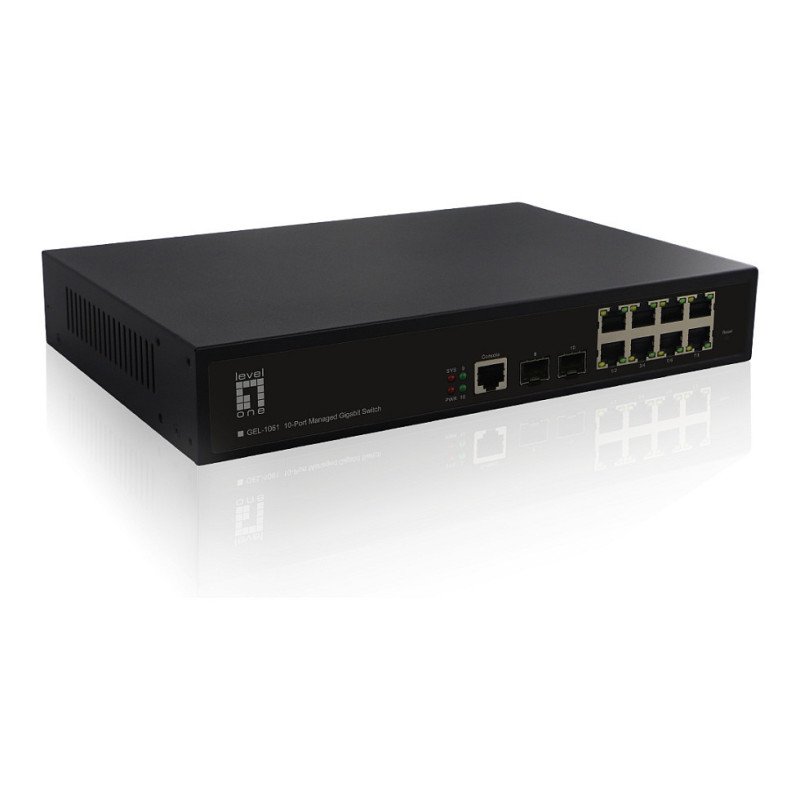

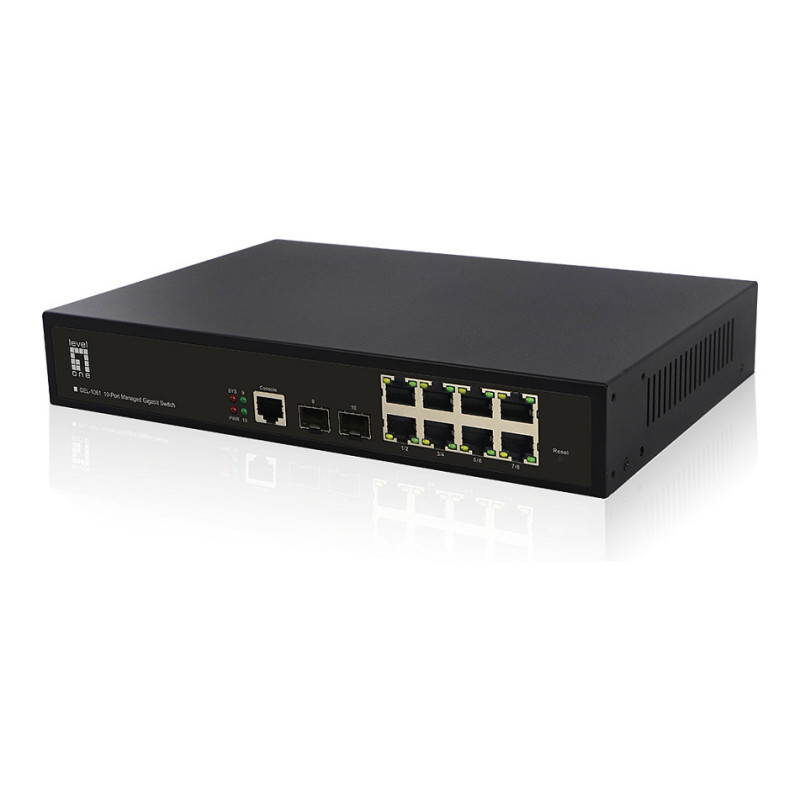

„LevelOne GEL-1061“ tinklo komutatorius

LevelOne KILBY 10-Port L2 Managed Gigabit Switch, 2 x SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power connector: AC-in jack. Rack mounting

The LevelOne GEL-1061 is an intelligent 10-Port L2 managed gigabit switch with 8 RJ45 ports and 2 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.

The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-1061 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL), Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.

An ideal network solution for anyone looking for an affordable and efficient way to expand their network.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Traffic classification

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Fiber optic connector: SFP
Console port: RJ-45
Power connector: AC-in jack

Network

Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN

Optical fiber

Fiber ethernet cabling technology: 100BASE-X, 1000BASE-X

Data transmission

Switching capacity: 20 Gbit/s
Throughput: 14.9 Mpps
MAC address table: 8000 entries
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: MAC address filtering
Feature: Static port security

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button
LED indicators: Activity, Link, Power

Performance

Internal memory: 128 MB
Flash memory: 16 MB
Minimum system requirements: CERoHS

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 15 W

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 270 mm
Depth: 181 mm
Height: 44 mm
Weight: 800 g

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Package type: Box
Package width: 345 mm
Package depth: 255 mm
Package height: 82 mm
Package weight: 2 kg

Logistics data

Harmonized System (HS) code: 85176990
