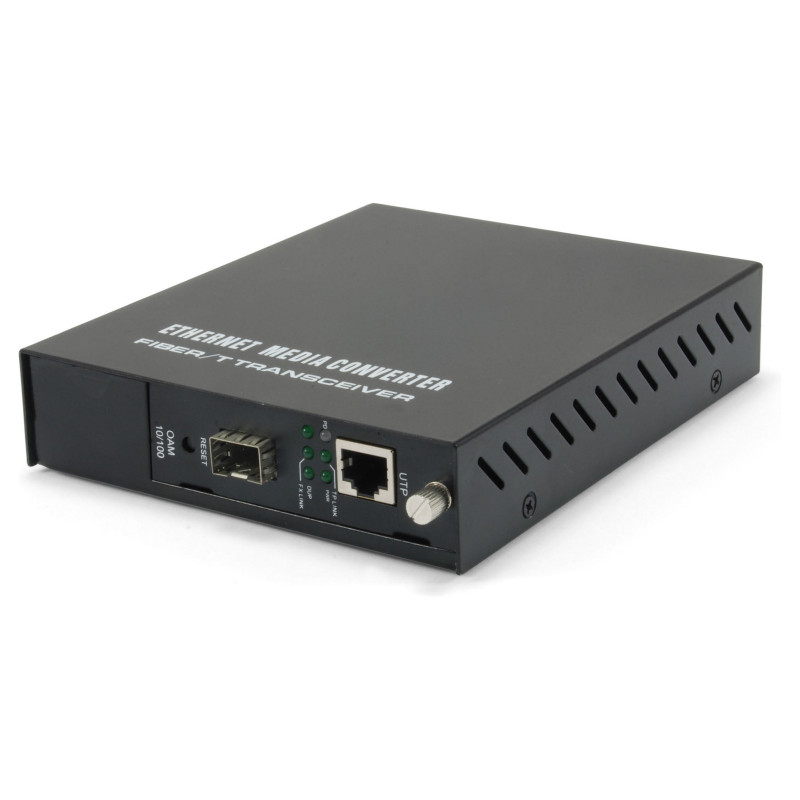

LevelOne FVM-1000 tinklo medijos keitiklis

LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Fast Ethernet. Mean time between failures (MTBF): 30000 h. LED indicators: Activity, FDX, Link, Power, Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 100 - 240 V, Output voltage: 5 V, Output current: 2 A

FVM-1000 is remote Managed Fast Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100Base-Tx and 100Base-FX, It supports both half-duplex and full-duplex operations and a variety of fiber options.

Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.

Network

Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: VLAN support
Duplex system: Full, Half

Performance

Mean time between failures (MTBF): 30000 h

Features

Feature: Web-based management
Feature: Hot-swap
LED indicators: Activity, FDX, Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP

Power

Input voltage: 100 - 240 V
Output voltage: 5 V
Output current: 2 A

Weight & dimensions

Width: 127 mm
Depth: 156 mm
Height: 32 mm
Weight: 700 g

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

Feature: Manual

Packaging data

Package width: 185 mm
Package depth: 275 mm
Package height: 62 mm
Package weight: 860 g
Package type: Box

Certificates

Compliance certificates: RoHS
Certification: FCC, CE

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
Master (outer) case width: 360 mm
Master (outer) case length: 480 mm
Master (outer) case height: 390 mm
Master (outer) case gross weight: 17.5 kg
Products per master (outer) case: 17 pc(s)
