„LevelOne FPS-1033“ spausdinimo serveris

LevelOne Print Server, 2 x USB, 1 x Parallel. Product colour: Grey, LED indicators: Activity, Link, Power, Status, Country of origin: Taiwan. Network connection type: Ethernet LAN, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Supported network protocols: TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP, RAW. USB connector type: USB Type-A. Windows operating systems supported: Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home..., Mac operating systems supported: Mac OS 8.1, Mac OS 8.5, Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Other operating systems supported: Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x

Product Overview
The LevelOne FPS-1033 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. The FPS-1033 is a multi-port Fast Ethernet Print Server and provides network printer sharing for both USB and Parallel printers.

Multi Printer Support

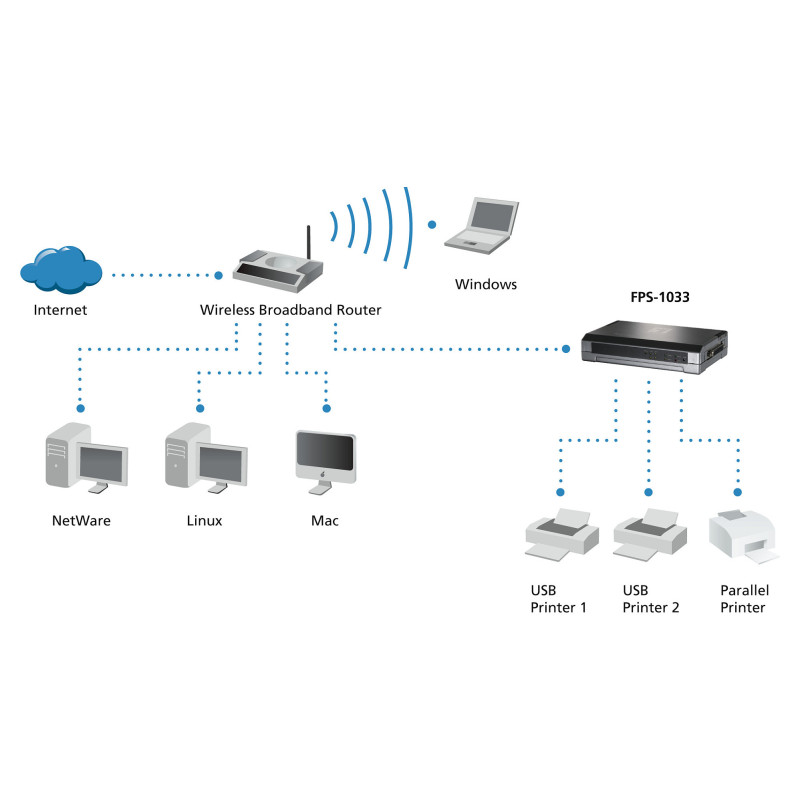

The FPS-1033 Multi Port print server provides simultaneous connectivity to two USB and one Parallel printers. It supports the USB 2.0 standard for high-speed printing.

Multi OS and Network Printing Protocol Support
The FPS-1033 Multi Port Print Server supports Windows ME, 2000,2003 and XP operating systems as well as Mac OS 8.1 and higher and UNIX/Linux and Netware (Bindery/NDS). Network Print Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP and IPP for flexible use with different network clients connected to the same office network.

Easy Installation Wizard
The LevelOne FPS-1033 is easily configurable using a Web Browser or Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the windows set-up program or the Web based user interface.

- Multi-Port print server for network print sharing
- USB 2.0 interface
- Simple setup with user-friendly interface
- Support multiple network printing protocols
- Support multiple operating systems

Features

Product colour: Grey
LED indicators: Activity, Link, Power, Status
Feature: IPP support
Feature: DHCP client
Country of origin: Taiwan

Network

Network connection type: Ethernet LAN
Networking standards: IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates: 10,100 Mbit/s

Protocols

Supported network protocols: TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP, RAW
Feature: Web-based management

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
Parallel ports quantity: 1
Feature: DC-in jack
USB connector type: USB Type-A

Software

Mac operating systems supported: Mac OS 8.1, Mac OS 8.5, Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2
Linux operating systems supported: Yes
Other operating systems supported: Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x

Certificates

Certification: CE, FCC Class B

Weight & dimensions

Width: 100 mm
Depth: 180 mm
Height: 35 mm
Weight: 255 g

Packaging data

Package width: 370 mm
Package depth: 382 mm
Package height: 41.3 mm
Package weight: 970 g

Packaging content

Feature: Manual

Operational conditions

Operating relative humidity (H-H): 0 - 50%
Storage temperature (T-T): -5 - 65 °C
Storage relative humidity (H-H): 0 - 70%
Operating altitude: 0 - 80 m
