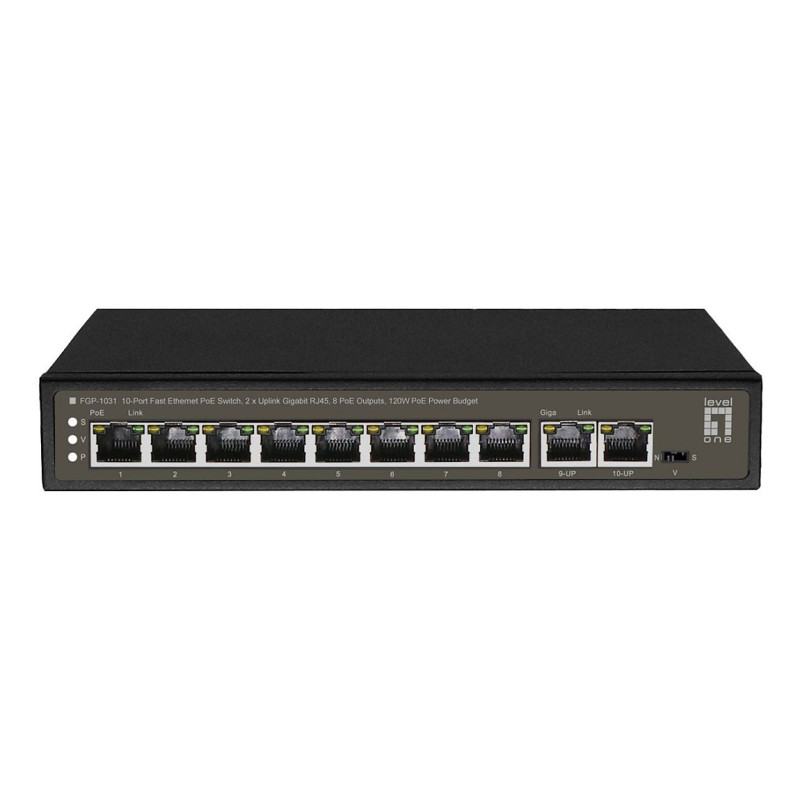

„LevelOne FGP-1031“ tinklo komutatorius

LevelOne FGP-1031. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

The FGP-1031 switch provides 10 port 10/100 ports with 2 port 1000/100/10 Mbps uplink port. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users increases continuously. The FGP-1031 provides you with 8 PSE PoE ports, the first of which can even supply up to 60W. That can solve the limitation of the power outlet location and offer the system designer a flexible solution to locate the network device everywhere.The device size is specifically designed for medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network capacity.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity: 8
Gigabit Ethernet (copper) ports quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support

Data transmission

MAC address table: 2000 entries

Design

Product colour: Black
LED indicators: Activity, Link, PoE, Power

Performance

Feature: Fanless
Mean time between failures (MTBF): 5000 h

Power

Power source: AC
AC input voltage: 100 - 240 V
Power consumption (typical): 5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 210 mm
Depth: 150 mm
Height: 35 mm
Weight: 790 g

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Package width: 264 mm
Package depth: 217 mm
Package height: 67 mm
Package weight: 1.14 kg

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
