„LevelOne FEU-0511“ tinklo komutatorius

LevelOne 5-Port Fast Ethernet Switch, 1 x SC Multi-Mode Fiber. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 1024 entries. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

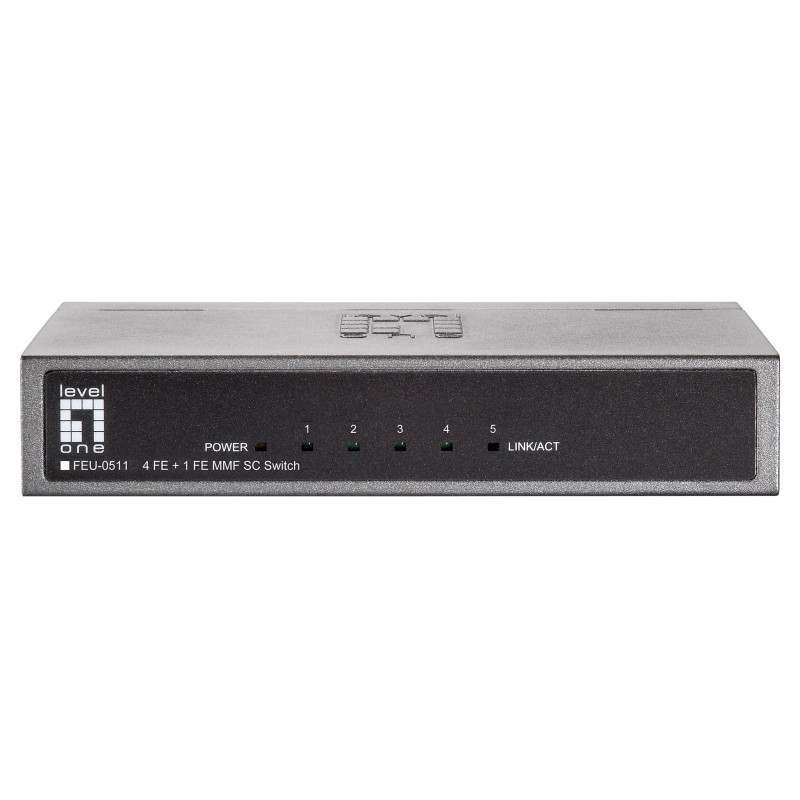

LevelOne FEU-0511 is 4-port 10/100Mbps + 1 100BaseFX Fast Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal for SMB users with limited space. It is a superb choice for expanding your network.

1-Port 100BaseFX (Multi-Mode, SC Connector)

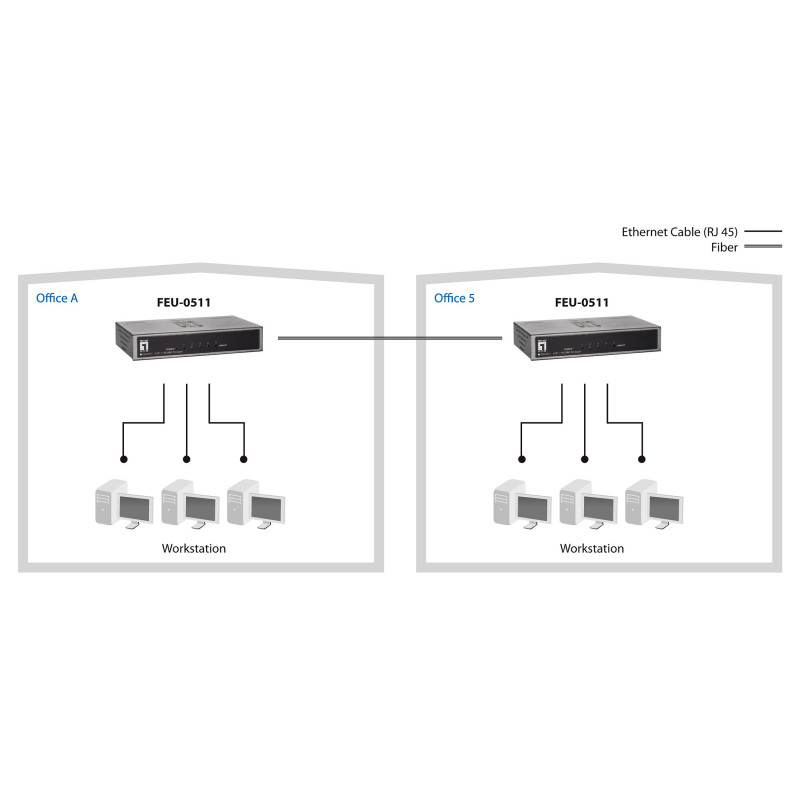

The fiber uplink can provide connectivity for a small group of users over a larger distance such as on a campus or between indoor classrooms.

Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.

Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.

Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.

Store-and-Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.

- Provides flexibility of 4 x 10/100BASE-TX ports
- 100Base-FX Multi-mode fiber for the link up to 2km
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

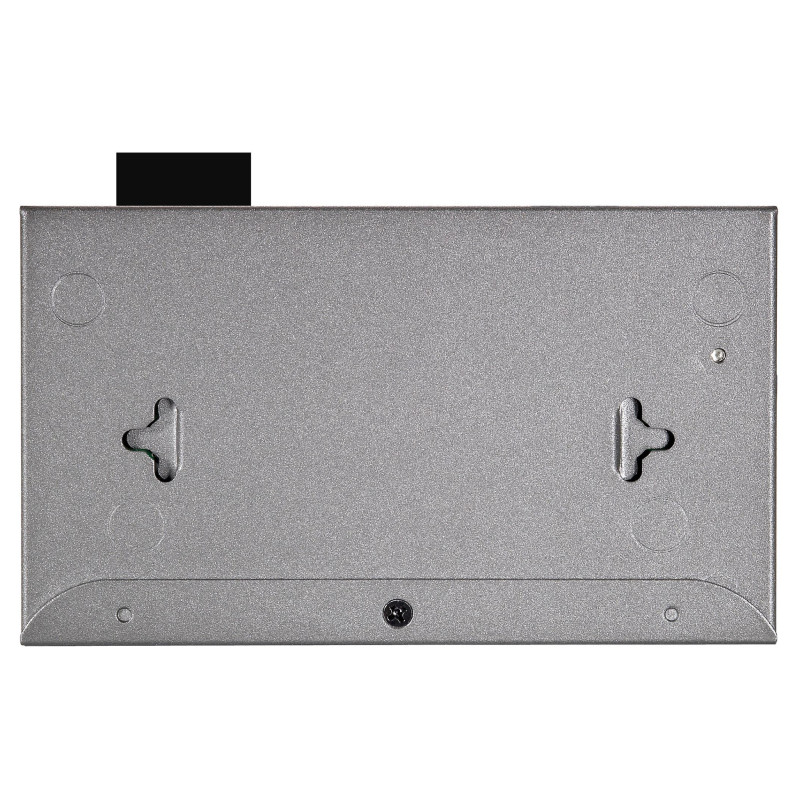

- Provides wall or desktop mounting

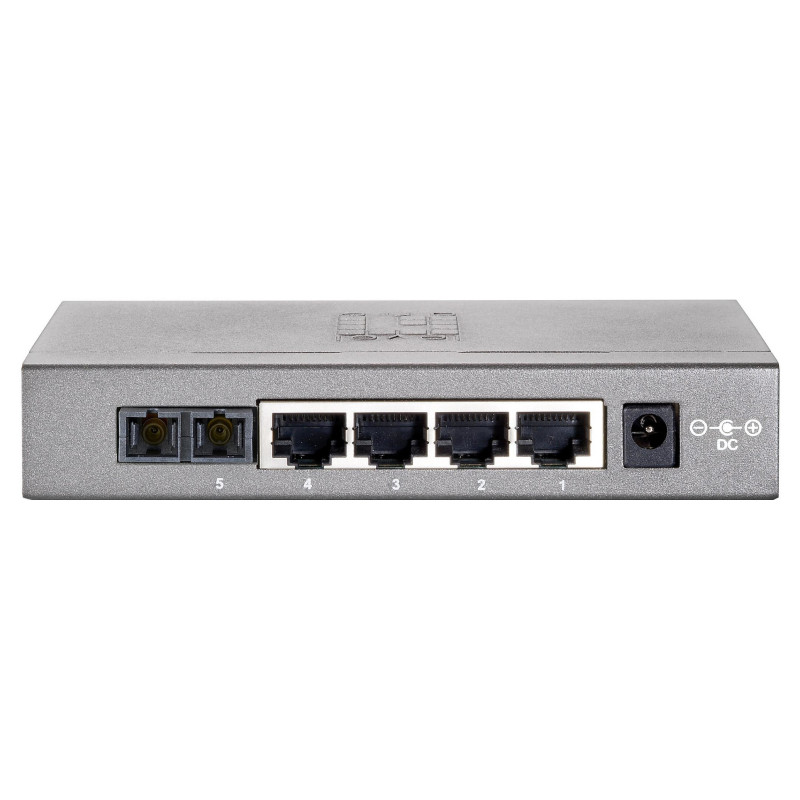

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fiber ports quantity: 1
Fiber optic connector: SC, ST
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX
Cable types supported: Cat5
Feature: Full duplex
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Optical fiber

Fiber ethernet cabling technology: 100BASE-FX
Fiber type: Multi-mode
Transmission distance (max): 2 km

Data transmission

MAC address table: 1024 entries
Feature: Store-and-forward
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps

Design

Product colour: Black, Grey
Housing material: Metal
LED indicators: Activity, Link, Power

Performance

Buffer size: 384 KB
Maximum data transfer rate: 200 Mbit/s
Feature: Plug and Play

Power

Output voltage: 5 V
Output current: 2.5 A
Power consumption (max): 6 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 90 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 96 mm
Depth: 112 mm
Height: 30 mm
Weight: 380 g

Packaging content

Feature: Quick start guide

Packaging data

Feature: AC adapter included
Feature: Rubber feet
Package width: 140 mm
Package depth: 250 mm
Package height: 55 mm
Package weight: 540 g

Certificates

Certification: FCC Class B, CE

Logistics data

Country of origin: Taiwan
Harmonized System (HS) code: 85176990
