„LevelOne FCS-3616“ apsaugos kamera

LevelOne GEMINI Zoom IP Camera, 6-MP, Zoom, H.265,INDOOR/OUTDOOR. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 35 - 106°, Lens viewing angle, vertical: 20 - 56°, Lens viewing angle, diagonal: 41 - 127°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.4 mm (1 / 2.4"). Optical zoom: 4.3x, Digital zoom: 8x, Focal length range: 2.8 - 12 mm

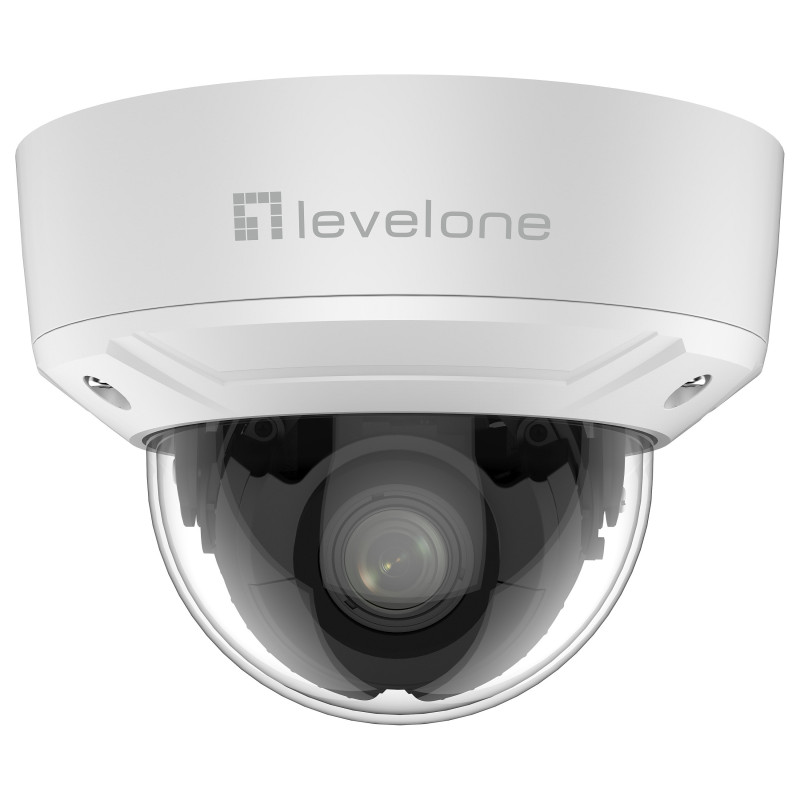

The LevelOne FCS-3616 Zoom Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3616 offers 6-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Performance

Type: CCTV security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
LED indicators: Activity, Power
Protection features: Vandal proof, Weatherproof
International Protection (IP) code: IP66
IK code: IK10
Country of origin: China

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 35 - 106°
Lens viewing angle, vertical: 20 - 56°
Lens viewing angle, diagonal: 41 - 127°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Optical zoom: 4.3x
Digital zoom: 8x
Number of lenses: 1
Focal length range: 2.8 - 12 mm

Night vision

Feature: Night vision
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3200 x 1800 pixels
Total megapixels: 6 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Back Light Compensation (BLC)

Audio

Audio system: 2-way

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols: TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark

Power

Power source type: DC, PoE
Power consumption (max): 10.5 W
Power consumption (Power over Ethernet (PoE)): 12.5 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 133.1 mm
Depth: 153.5 mm
Height: 153.5 mm
Weight: 1.1 kg

Packaging data

Package width: 244 mm
Package depth: 174 mm
Package height: 173 mm
Package weight: 1.7 kg
Package type: Box

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), UKCA

Packaging content

Number of cameras: 1

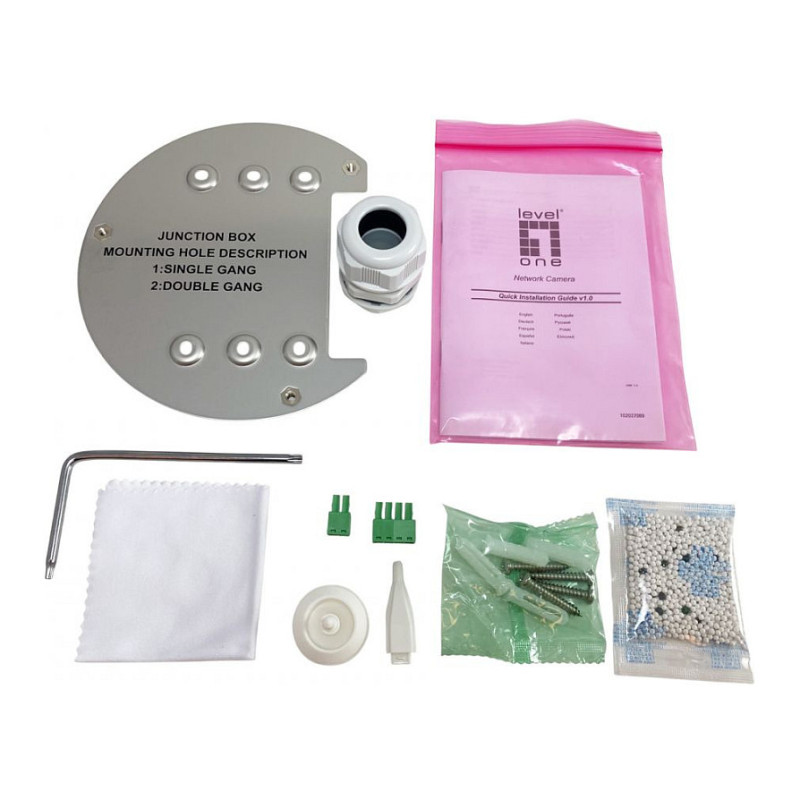

Feature: Screws included
Feature: Manual

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 143 cm
Customs product code (TARIC): 8525890000
Harmonized System (HS) code: 852589
Master (outer) case width: 610 mm
Master (outer) case length: 440 mm
Master (outer) case height: 546 mm
Master (outer) case gross weight: 13 kg
Products per master (outer) case: 8 pc(s)
