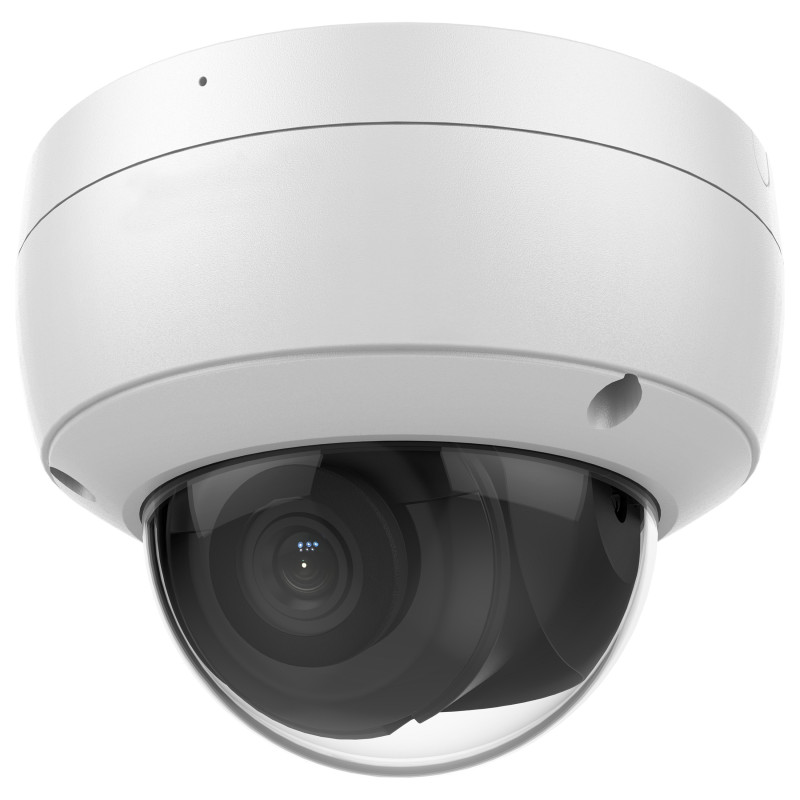

„LevelOne FCS-3096“ apsaugos kamera

LevelOne Gemini IP Camera, 8-Mp, H.265, 802.3Af, PoE, IR Leds, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 79°, Camera shutter speed: 1/3 - 1/10000 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Lens diameter: 4 mm

The LevelOne FCS-3096 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3096 offers 8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Infrared (IR) cut-off filter
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
LED indicators: Power
Protection features: Vandal proof
International Protection (IP) code: IP67
IK code: IK10
Feature: Weatherproof
Country of origin: China

Camera

Field of view (FOV) angle: 79°
Camera shutter speed: 1/3 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Lens diameter: 4 mm
Maximum aperture number: 2

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 3840 x 2160
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Digital Wide Dynamic Range (DWDR)

Audio

Audio system: 2-way
Voice codecs: G.711, G.722.1, G.726, MP2L2

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Feature: Quality of Service (QoS) support

Storage

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port

Management features

Feature: Web-based management

Power

Power source type: DC, PoE
Power consumption (typical): 6.2 W
Power consumption (max): 9 W

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): 0 - 95 °C

Weight & dimensions

Width: 111 mm
Depth: 111 mm
Height: 82 mm
Weight: 500 g

Packaging data

Package width: 134 mm
Package depth: 134 mm
Package height: 108 mm
Package type: Box

Sustainability

Feature: Sustainability compliance
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, WEEE

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Manual
Feature: Resource CD

Logistics data

Master (outer) cases per pallet (air): 20 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 162 cm
Harmonized System (HS) code: 8525890000
Master (outer) case width: 345 mm
Master (outer) case length: 590 mm
Master (outer) case height: 568 mm
Master (outer) case gross weight: 17 kg
Products per master (outer) case: 24 pc(s)
