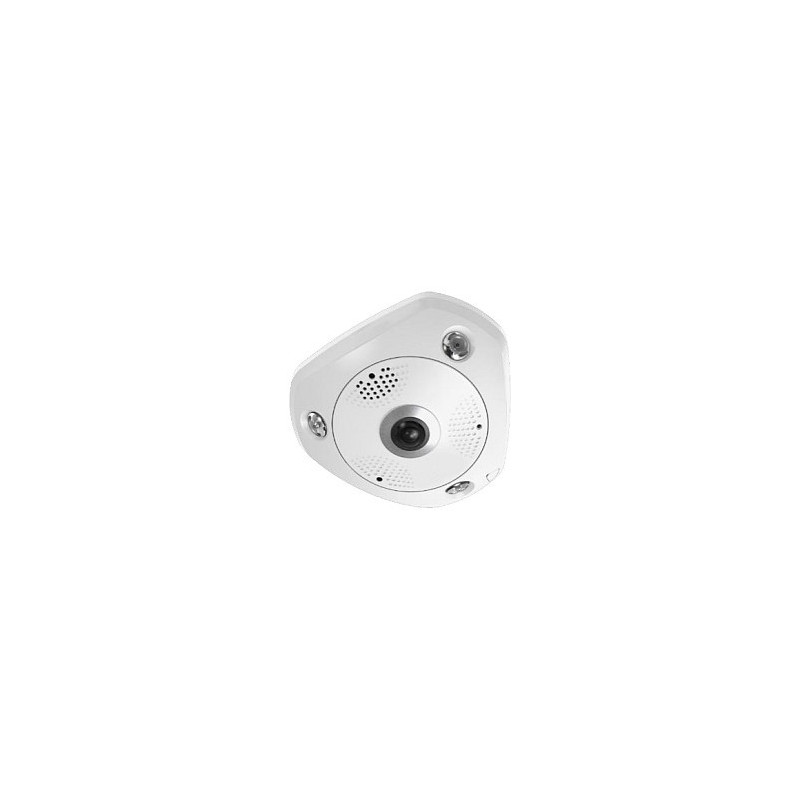

„LevelOne FCS-3095“ apsaugos kamera

LevelOne FCS-3095. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Spherical. Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°, Camera shutter speed: 1 - 1/100000 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Fixed focal length: 2 mm

FCS-3095 is a fisheye network camera capable of providing a 360-degree panoramic image of its surveillance scene.
The progressive scan CMOS sensor provides high-resolution images of up to 4000 × 3000.
Up to 18 live view display modes, designed for 3 mount types, meet various user preference.
Three independently controlled IR lights offer a range of 15 m and provide good vision in low or even zero-light environment.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Picture overlay: 128 x 128 pixels
Picture overlay: 24 bit
Feature: People counting function
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Spherical
Mounting type: Ceiling/Wall/Desk
Product colour: White
Housing material: Metal
International Protection (IP) code: IP67
IK code: IK10
Feature: Fog proof

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 180°
Lens viewing angle, vertical: 180°
Camera shutter speed: 1 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 1.7 mm (1 / 1.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 2.2
Fixed focal length: 2 mm

Night vision

Feature: Night vision
Night vision distance: 15 m
LED type: IR
Number of illumination LEDs: 3
Infra-red wavelength: 850 nm

Video

Maximum resolution: 4000 x 3000 pixels
Total megapixels: 12 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 640 x 480 (VGA), 720 x 720, 2560 x 2560, 3000 x 3000, 4000 x 3000
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate: 32 Kbps - 16 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)
Feature: Region of Interest (ROI) encoding

Audio

Feature: Built-in speaker(s)
Feature: Built-in microphone
Voice codecs: G.711, G.722.1, G.726, MP2L2, PCM
Bit rate range: 16 - 160 Kbit/s
Sample rates: 8 - 16 kHz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.3at
Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Number of users: 32 user(s)
User access level: Administrator, Operator, User
Feature: Live view
Number of simultaneous live view channels: 20 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Headphone outputs: 1

Security

Alarm input channels: 1
Alarm output channels: 1
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: 802.1x RADIUS
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Abandoned object, Abnormal sound detection, Crossing line, Heat map, Intrusion, Region entrance detection, Region exiting detection
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark
Feature: Digest authentication

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (max): 12.5 W
Power consumption (Power over Ethernet (PoE)): 15 W
DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 167 mm
Depth: 152.8 mm
Height: 55 mm
Weight: 1.4 kg

Packaging content

Number of cameras: 1
