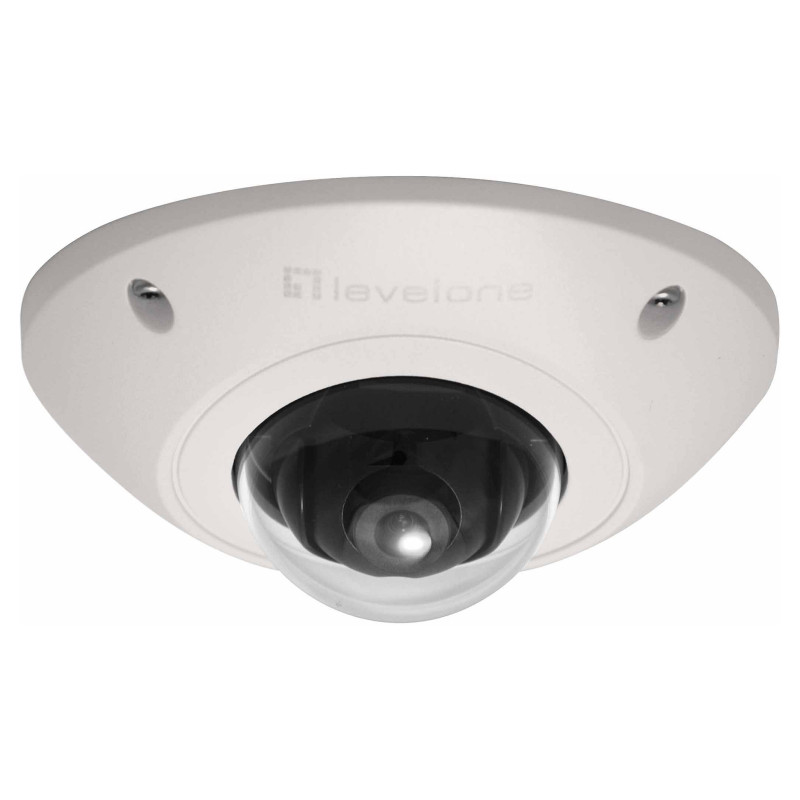

„LevelOne FCS-3073“ apsaugos kamera

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, 802.3af PoE, Vandalproof, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.001 lx, Field of view (FOV) angle: 78°, Camera shutter speed: 1 - 1/10000 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 6 mm

The LevelOne FCS-3073 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3073 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Certification: CE, FCC, ONVIF

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Protection features: Vandal proof
International Protection (IP) code: IP66
IK code: IK10
Feature: Weatherproof
Country of origin: China

Camera

Minimum illumination: 0.001 lx
Field of view (FOV) angle: 78°
Camera shutter speed: 1 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Focus adjustment: 2.0
Fixed focal length: 6 mm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: AVI
Video compression formats: H.264, M-JPEG
Supported graphics resolutions: 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Feature: Full HD
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror
Feature: Portrait mode
Feature: Privacy masking
Feature: Time stamp overlay
Feature: Text caption overlay
Feature: Back Light Compensation (BLC)

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS
Cabling technology: 10/100Base-T(X)
Number of users: 20 user(s)
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, SD
Maximum memory card size: 16 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Motion sensor

Management features

Feature: Reset button

Power

Power source type: PoE
Power consumption (typical): 3.5 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 111 mm
Depth: 111 mm
Height: 82 mm
Weight: 500 g

Packaging data

Package width: 134 mm
Package depth: 134 mm
Package height: 108 mm
Package weight: 500 g
Package type: Box

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Resource CD

Logistics data

Harmonized System (HS) code: 85258900
Master (outer) case width: 345 mm
Master (outer) case length: 288 mm
Master (outer) case height: 568 mm
Products per master (outer) case: 24 pc(s)
