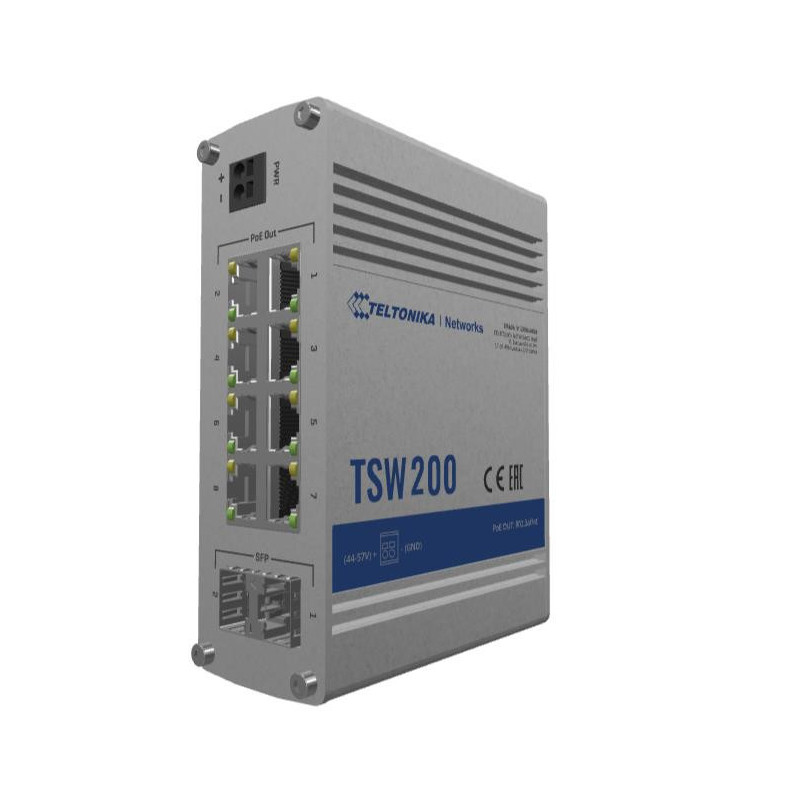

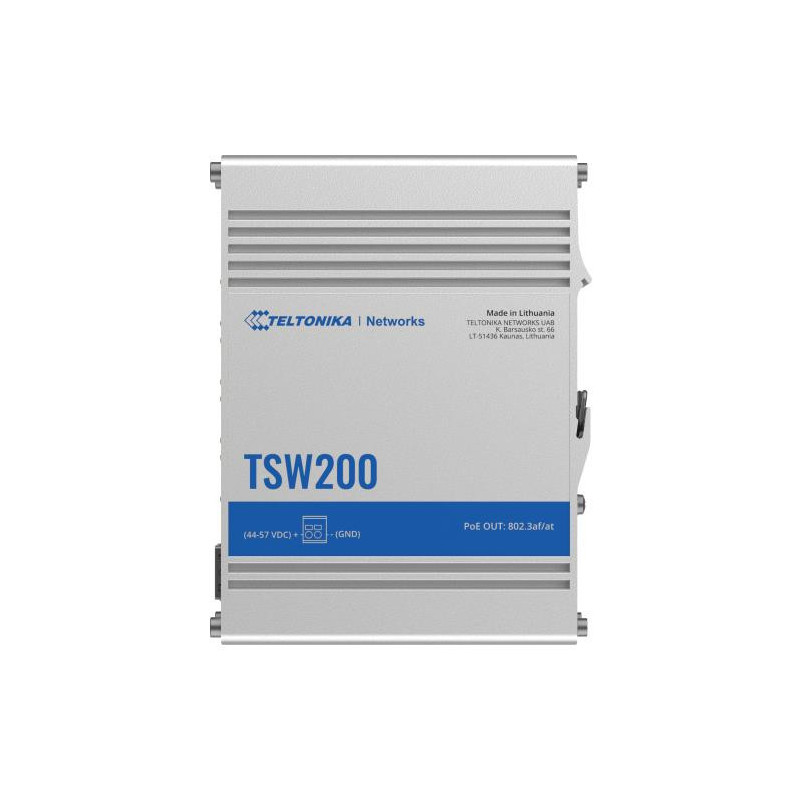

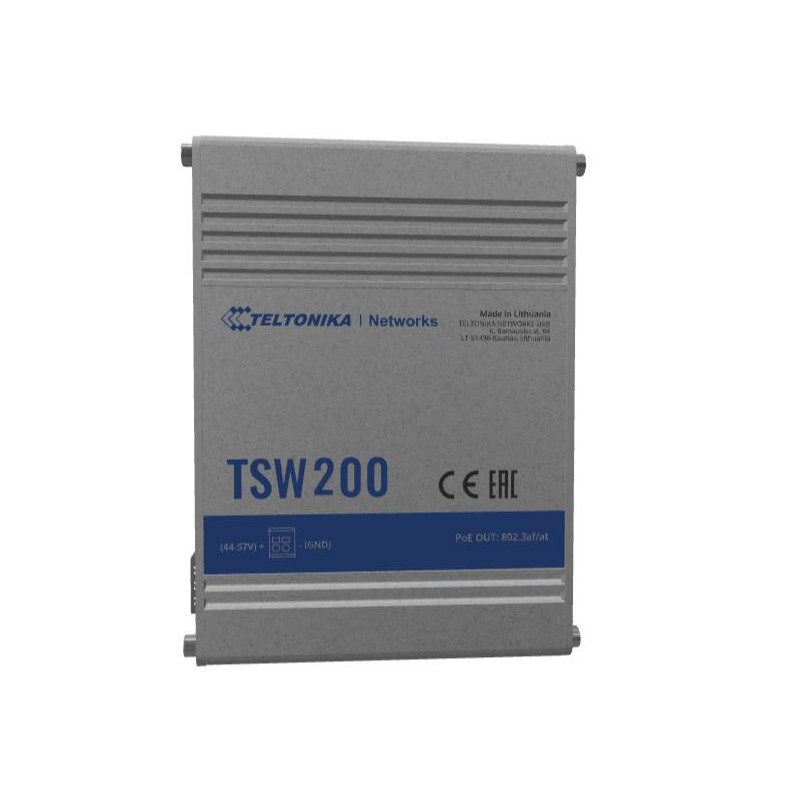

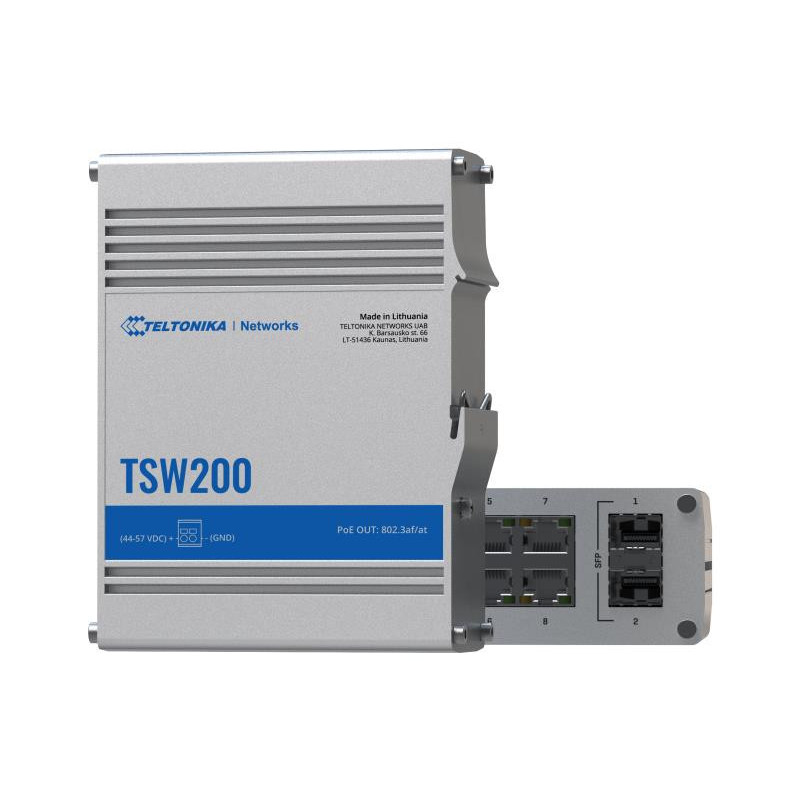

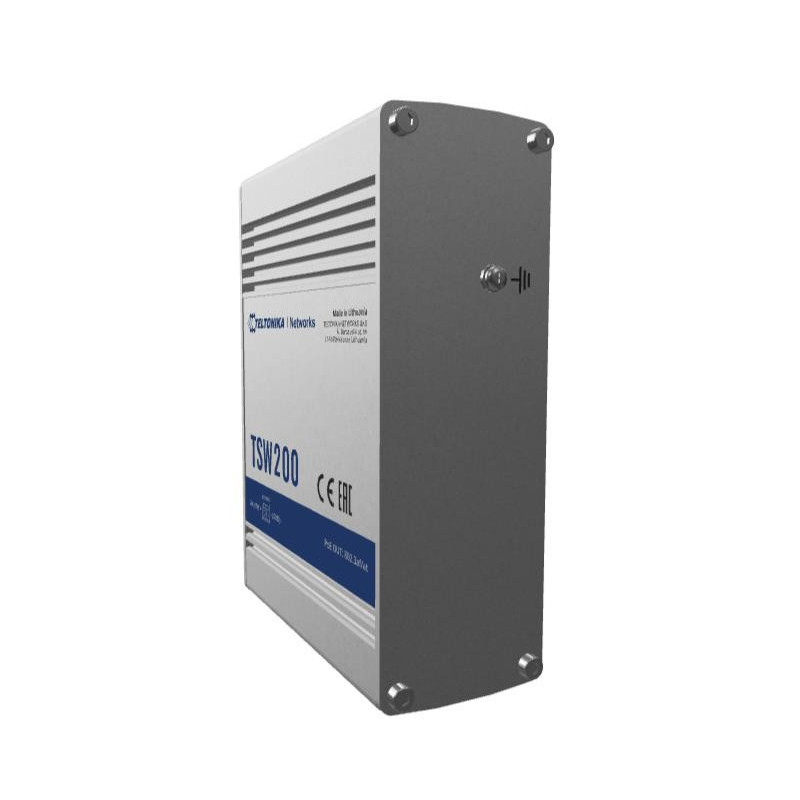

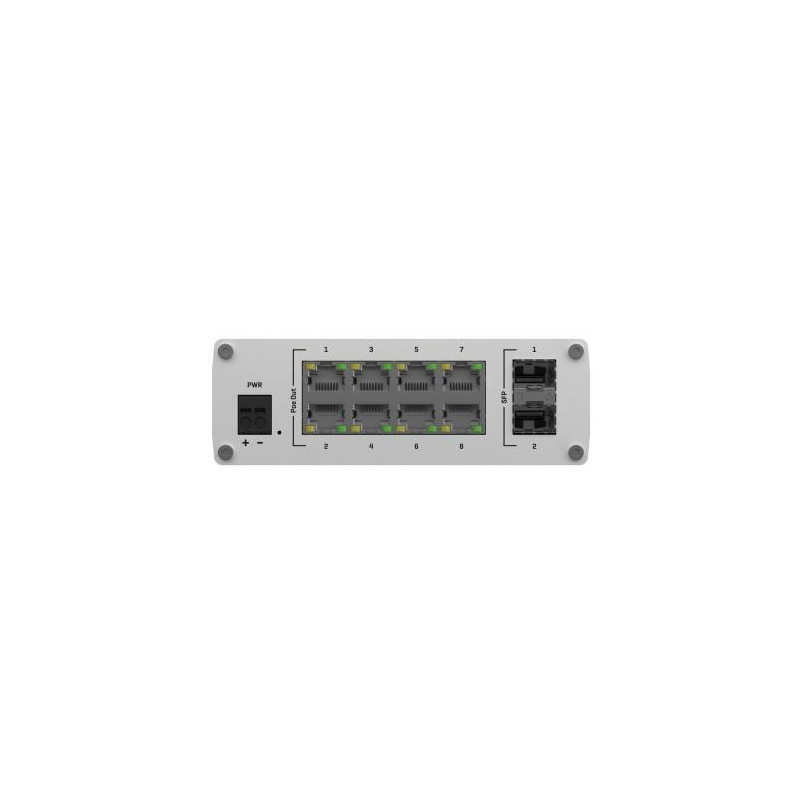

TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
- POE+
- SFP
- ETHERNET
- DURABILITY
- MOUNTING (DIN rail)
- POWER BUDGET
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| DC input voltage | 7 - 57 V |
| Depth | 44.2 mm |
| DIN rail mounting | Yes |
| Height | 132 mm |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| LED indicators | LAN/PoE/Status |
| MAC address table | 2000 entries |
| Model | TSW200 |
| Model name | TSW200 |
| Networking standards | IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u |
| Operating temperature (T-T) | -40 - 75 °C |
| Packet buffer memory | 0.128 MB |
| Power consumption (max) | 106 W |
| Power consumption (typical) | 1.8 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 57 V |
| Power source | DC |
| Power supply included | No |
| Product colour | Aluminium |
| Rack mounting | Yes |
| SFP module slots quantity | 2 |
| Summary | Teltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable, Rack mounting |
| Switch type | Unmanaged |
| Total Power over Ethernet (PoE) budget | 240 W |
| Unit Box Height | 0.146 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.07 |
| Unit Calculated Volume | 0.001737 cubm |
| Unit Calculated Weight | 0.6 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://teltonika-networks.com/product/tsw200/ |
| Wall mountable | Yes |
| Weight | 456 g |
| Width | 95.1 mm |
