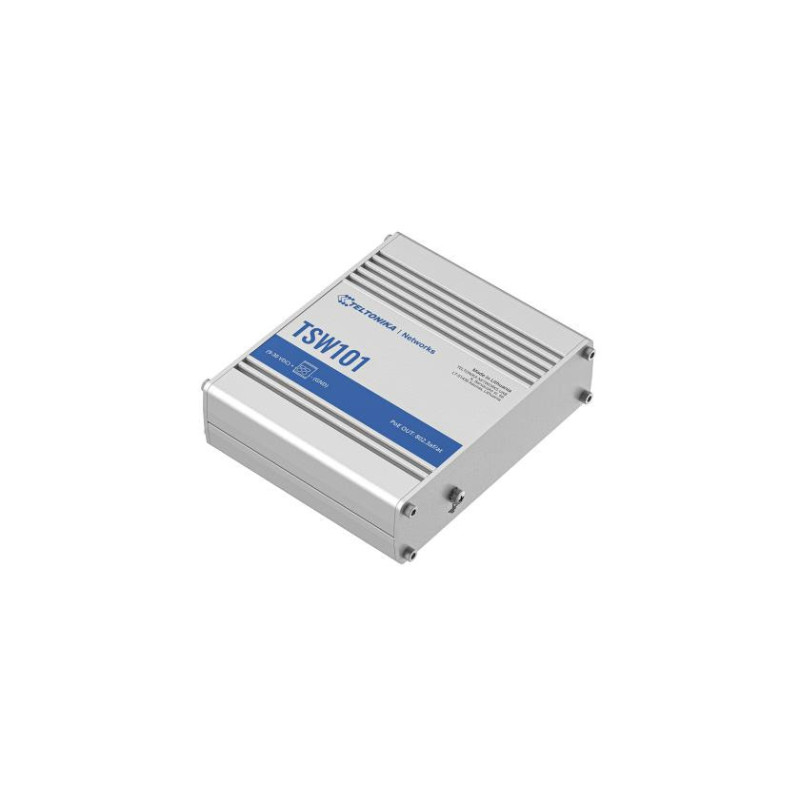

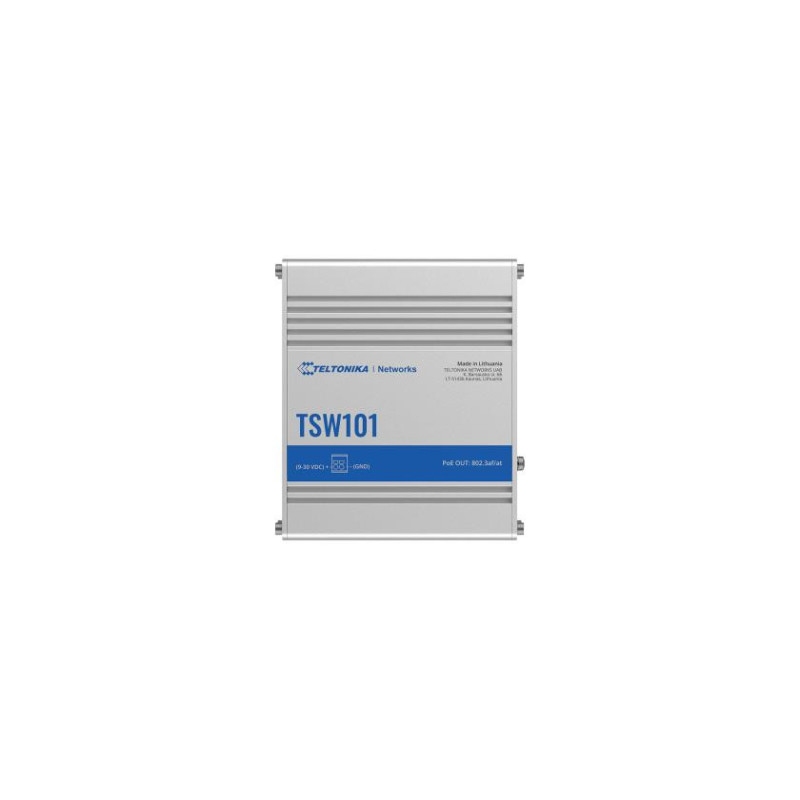

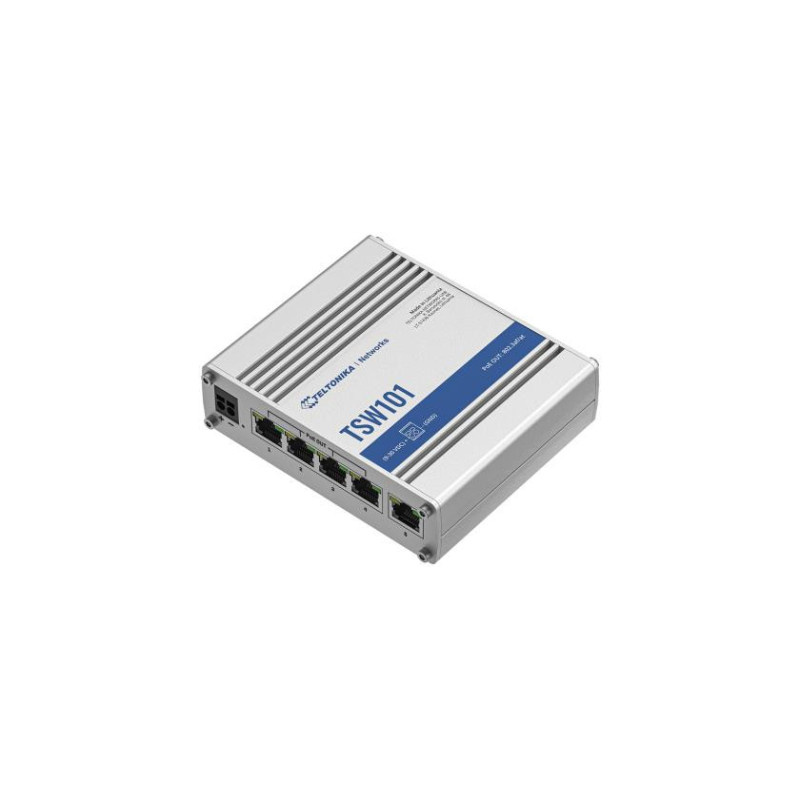

Komutatorius, TELTONIKA, TSW101000000, 4 PoE prievadai, 60 vatų, TSW101
Prekės kodas:
2-4779051840113
Komutatorius, TELTONIKA, TSW101000000, 4 PoE prievadai, 60 vatų, TSW101
Prekės kodas:
2-4779051840113
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 3 - 5*
d. d.
AUTOMOTIVE POE+ SWITCH
Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
| 10G support | No |
| Auto MDI/MDI-X | Yes |

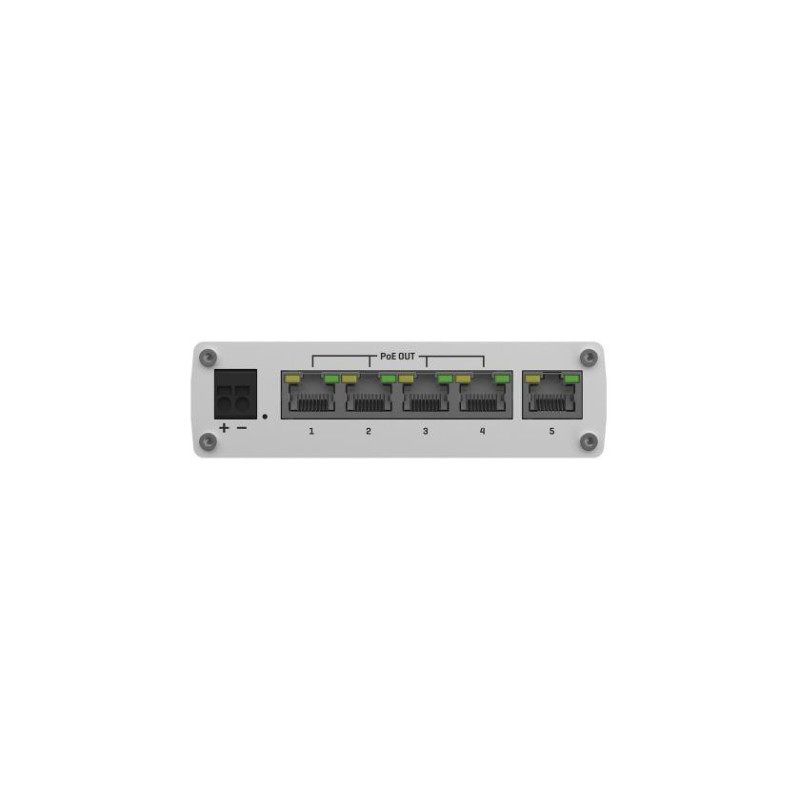

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark |
| Depth | 32 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Harmonized System (HS) code | 851762 |
| Height | 95 mm |
| Housing material | Aluminium |
| Input voltage | 9 - 30 V |
| International Protection (IP) code | IP30 |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| LED indicators | Power/Status |
| MAC address table | 2000 entries |
| Model | TSW101 |
| Model name | TSW101000000 |
| Networking standards | IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Power connector | Terminal block (2-pin) |
| Power consumption (max) | 2.31 W |
| Power consumption (typical) | 0.64 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power source | DC |
| Product colour | Metallic |
| Summary | Teltonika TSW101. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Power connector: Terminal block (2-pin). Power over Ethernet (PoE) |
| Switching capacity | 10 Gbit/s |
| Total Power over Ethernet (PoE) budget | 120 W |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.035 |
| Unit Calculated Volume | 0.0008925 cubm |
| Unit Calculated Weight | 0.44 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://teltonika-networks.com/products/switches/tsw101 |
| Weight | 354 g |
| Width | 115 mm |
