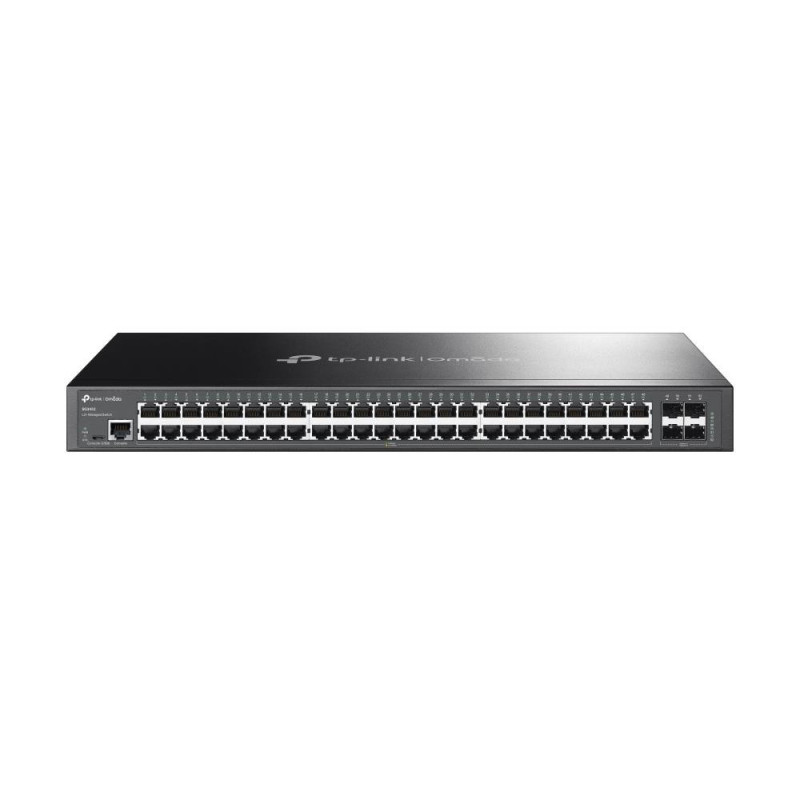

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication | MAC-based authentication,Port-based authentication |
| Authentication type | AAA,RADIUS,TACACS+ |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Yes |
| Broadcast storm control | Yes |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Console port | RJ-45/Micro-USB |
| Depth | 220 mm |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 snooping |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fanless | Yes |
| Flash memory | 32 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 77.38 Mpps |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 118.94 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| Internal memory | 256 MB |
| IP routing | Yes |
| IP-MAC-Port binding | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | Yes |
| Model name | Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Power consumption (max) | 34.86 W |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 4 kg |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Series | Omada |
| SFP module slots quantity | 4 |
| Shipping Box Depth | 55 cm |
| Shipping Box Height | 42.5 cm |
| Shipping Box Weight | 18.1 kg |
| Shipping Box Width | 36 cm |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Static route | Yes |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Summary | TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE.... Rack mounting, Form factor: 1U |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 104 Gbit/s |
| System event log | Yes |
| Unit Box Height | 0.335 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.1 |
| Unit Calculated Volume | 0.02104 cubm |
| Unit Calculated Weight | 4.53 kg |
| Units per Shipping Box | 4 |
| Vendor Homepage | https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3452/ |
| Virtual LAN features | Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 440 mm |
