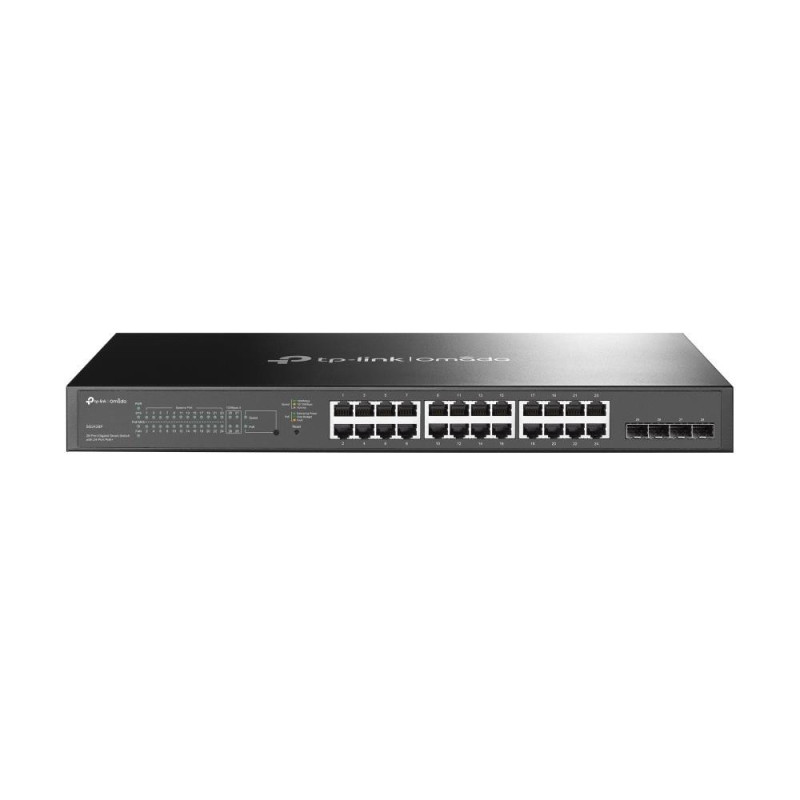

Jungiklis, TP-LINK, Omada, TL-SG2428P, tipas L2+, 24x10Base-T / 100Base-TX / 1000Base-T, 4xSFP, PoE+ prievadai 24, 250 v
Prekės kodas:
2-6935364030650
Jungiklis, TP-LINK, Omada, TL-SG2428P, tipas L2+, 24x10Base-T / 100Base-TX / 1000Base-T, 4xSFP, PoE+ prievadai 24, 250 v
Prekės kodas:
2-6935364030650
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
36 mėn.
Pristatymas iš Lietuvos
per 3 - 5*
d. d.
TP-Link's brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
- 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
- 250 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and rackmountable design
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Authentication type | RADIUS |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Yes |
| Broadcast storm control | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Copper ethernet cabling technology | 1000BASE-T/10BASE-T |
| Depth | 220 mm |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client |
| Fiber ethernet cabling technology | 1000BASE-X |
| Firmware upgradeable | Yes |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 41.66 Mpps |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Heat dissipation | 1052.94 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | Y |
| Model name | Omada 28-Port Gigabit Smart Switch with 24-Port PoE+ |
| Multicast support | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Number of fans | 2 fan(s) |
| Number of queues | 8 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 4.1 MB |
| Port mirroring | Yes |
| Power consumption (max) | 301.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Queue scheduling algorithms | SP/Weighted Round Robin (WRR)/WRR+SP |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Security algorithms | HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSH-2/SSL/TLS |
| Series | Omada |
| SFP module slots quantity | 4 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Summary | TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Yes |
| Total Power over Ethernet (PoE) budget | 250 W |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.335 |
| Unit Calculated Volume | 0.02104 cubm |
| Unit Calculated Weight | 4.22 kg |
| Units per Shipping Box | 4 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/en/business-networking/omada-switch-poe/sg2428p/#overview |
| Virtual LAN features | MAC address-based VLAN/Protocol-based VLAN/Voice VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 440 mm |
