Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
Multiple Application Scenarios

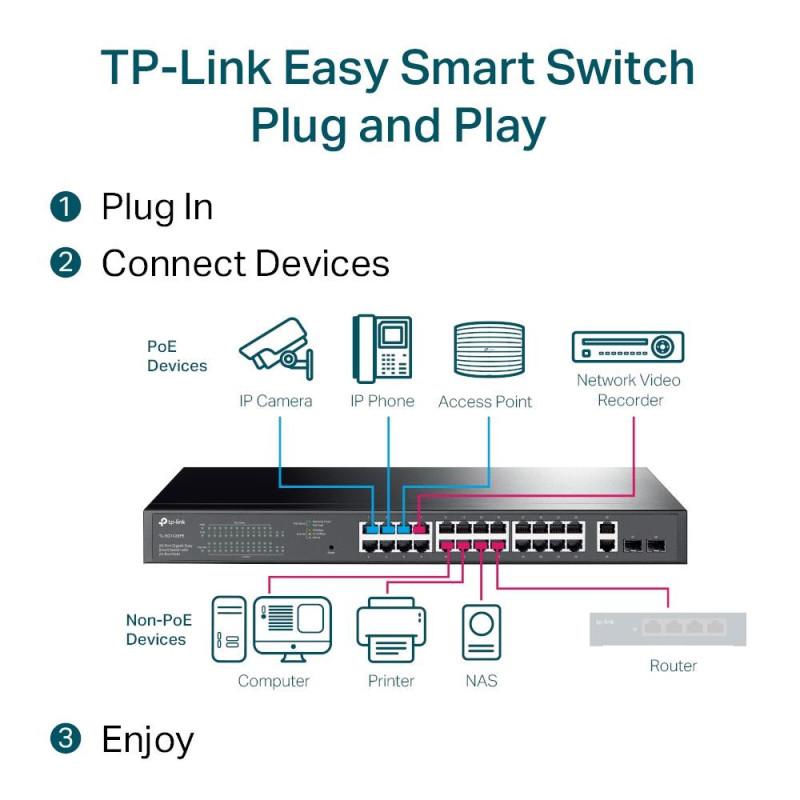

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

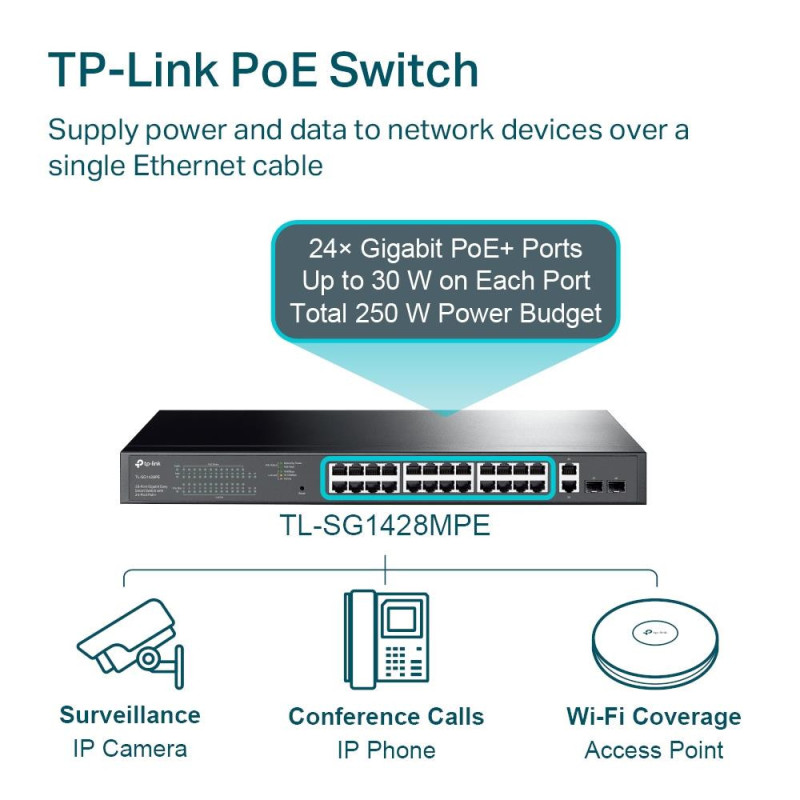

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Easy to Use
Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.
Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Factors Guarantee Stable Operation
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports' power to ensure high-priority ports' power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

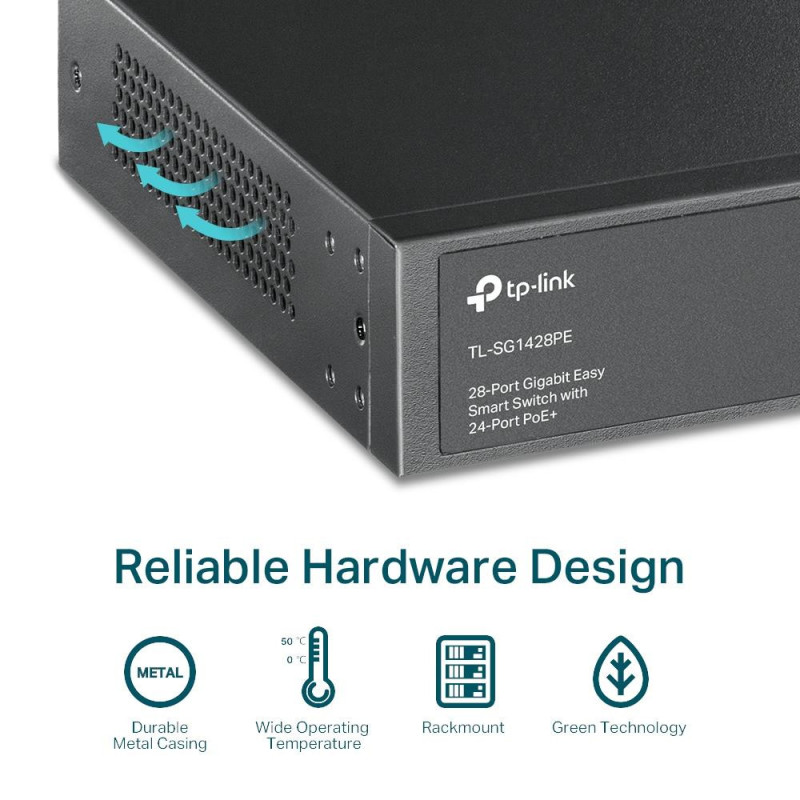

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50 ) with reliability.
| 10G support | No |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Depth | 220 mm |
| Fiber ethernet cabling technology | 1000BASE-X |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 41.7 Mpps |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Harmonized System (HS) code | 85176990 |
| Height | 44 mm |
| IGMP snooping | Yes |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Model | TL-SG1428PE |
| Model name | 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ |
| Multicast support | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x |
| Number of fans | 2 fan(s) |
| Number of queues | 4 |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 2287 g |
| Package width | 336 mm |
| Packet buffer memory | 4.1 MB |
| Port mirroring | Yes |
| Power consumption (max) | 1039.03 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 3.4 kg |
| Quality of Service (QoS) support | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Security algorithms | SNMP/SNMPv2/SNMPv3 |
| SFP module slots quantity | 2 |
| Shipping Box Depth | 55.5 cm |
| Shipping Box Height | 42.5 cm |
| Shipping Box Weight | 15.9200000762939 kg |
| Shipping Box Width | 36 cm |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Summary | TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| Total Power over Ethernet (PoE) budget | 250 W |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.34 |
| Unit Calculated Volume | 0.02123 cubm |
| Unit Calculated Weight | 3.98 kg |
| Units per Shipping Box | 4 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1428pe/ |
| Virtual LAN features | Port-based VLAN/Tagged VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 440 mm |
