„Intellinet 561808“ tinklo komutatorius

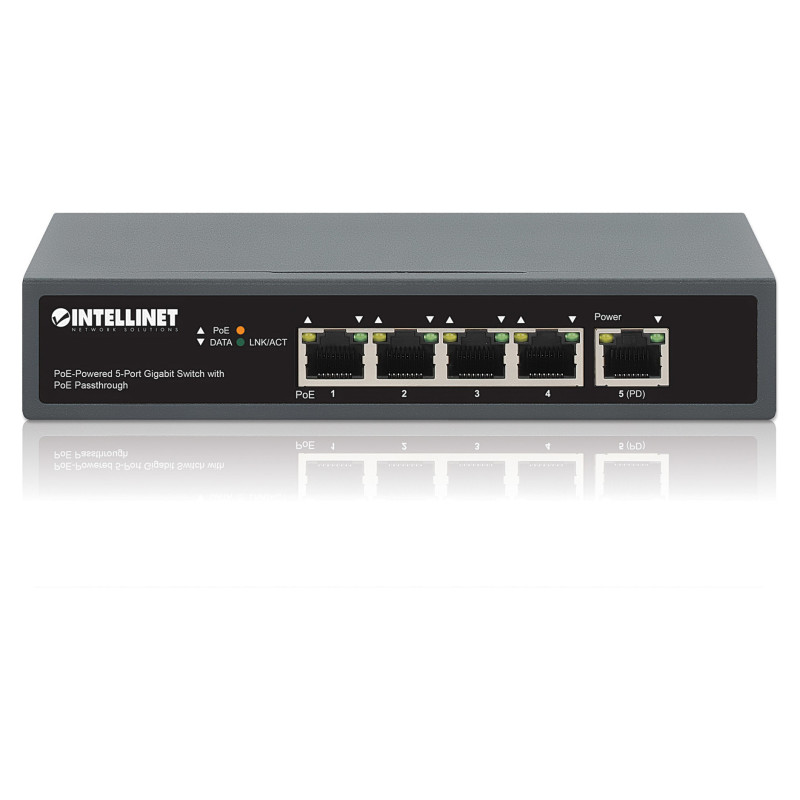

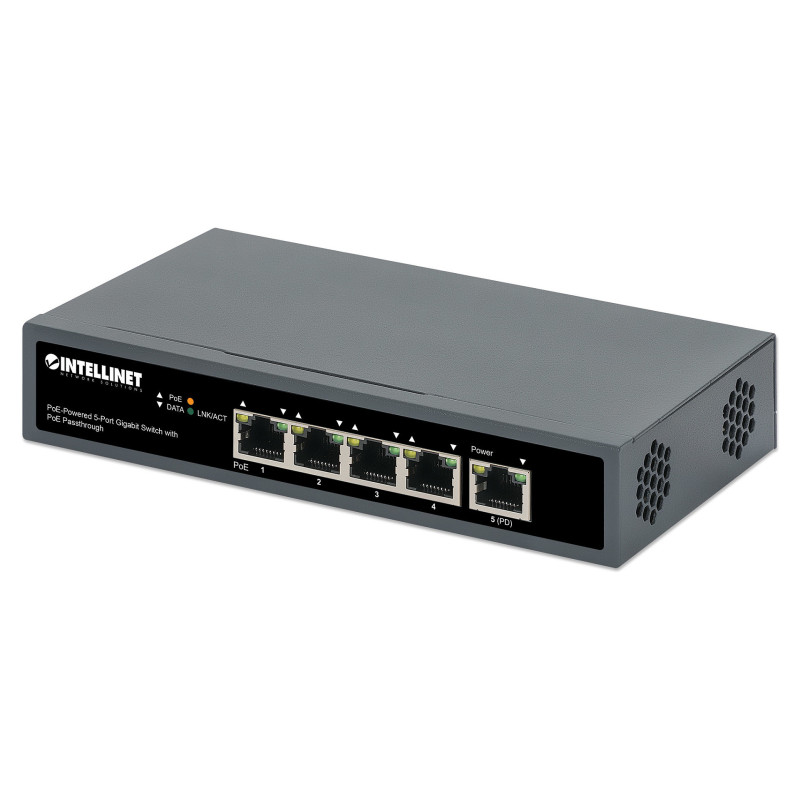

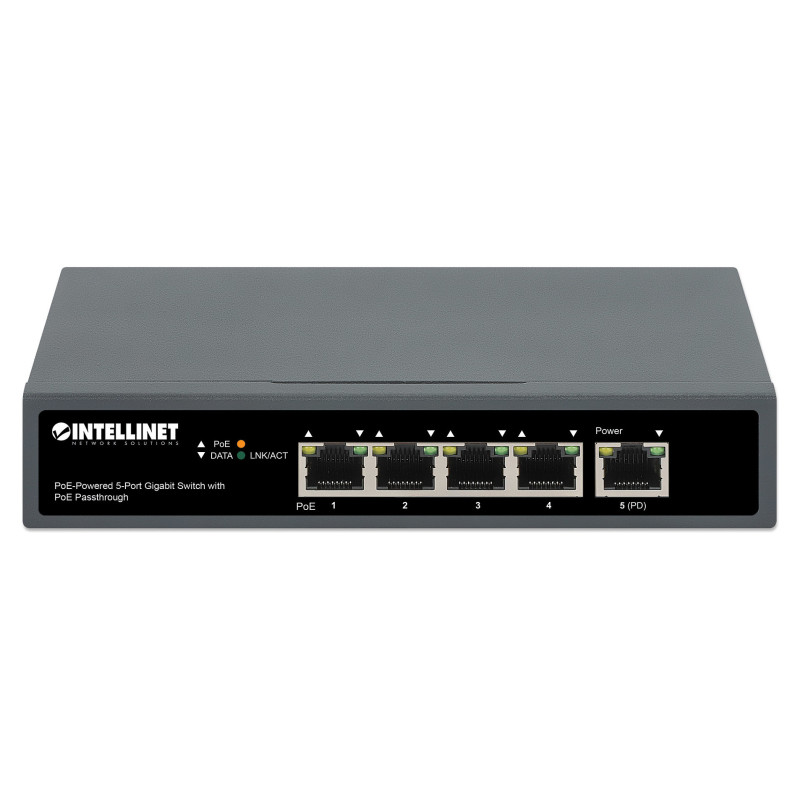

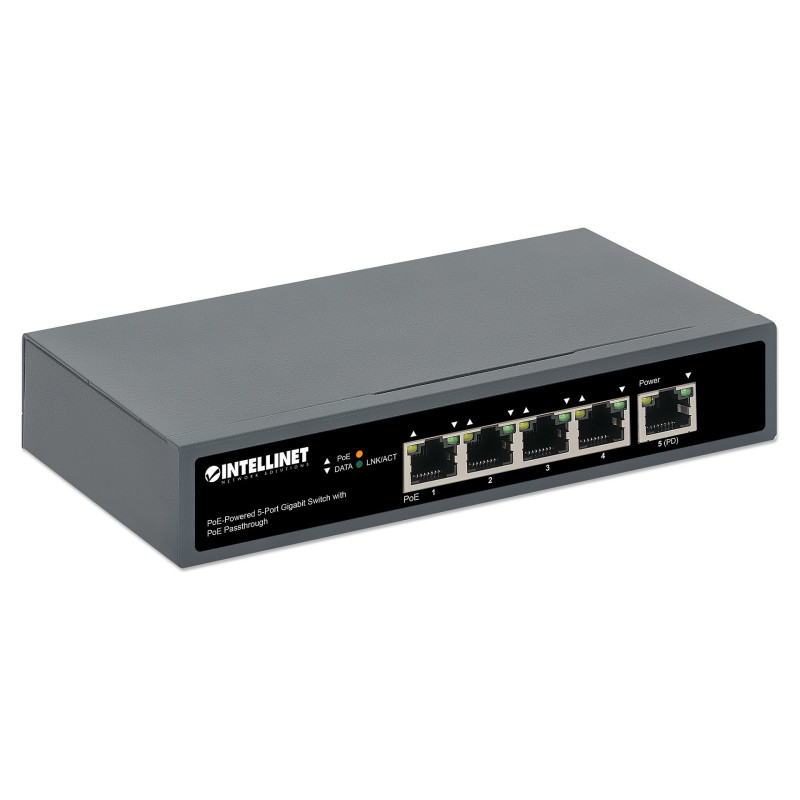

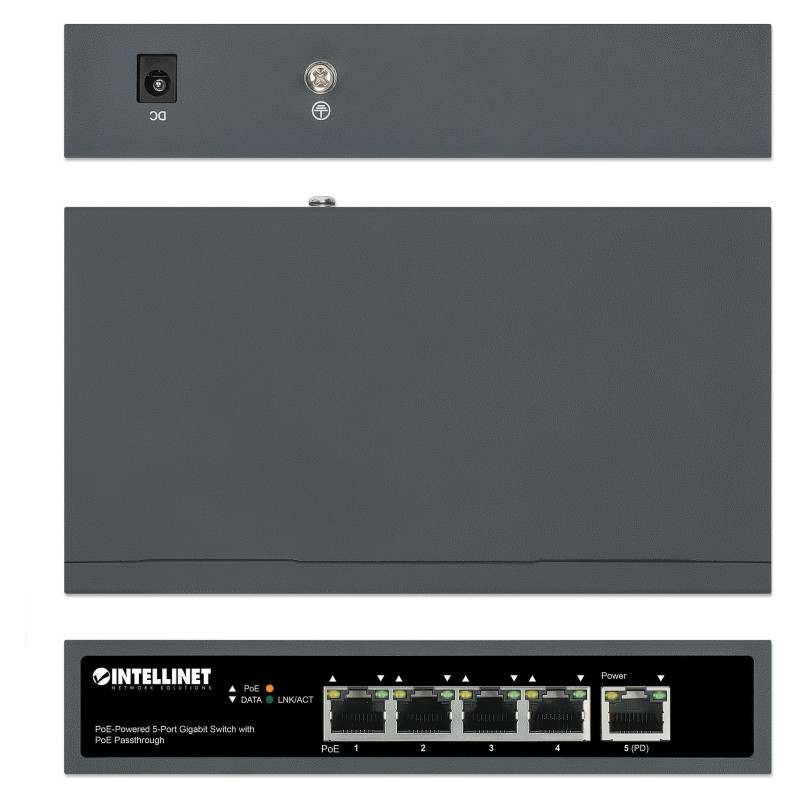

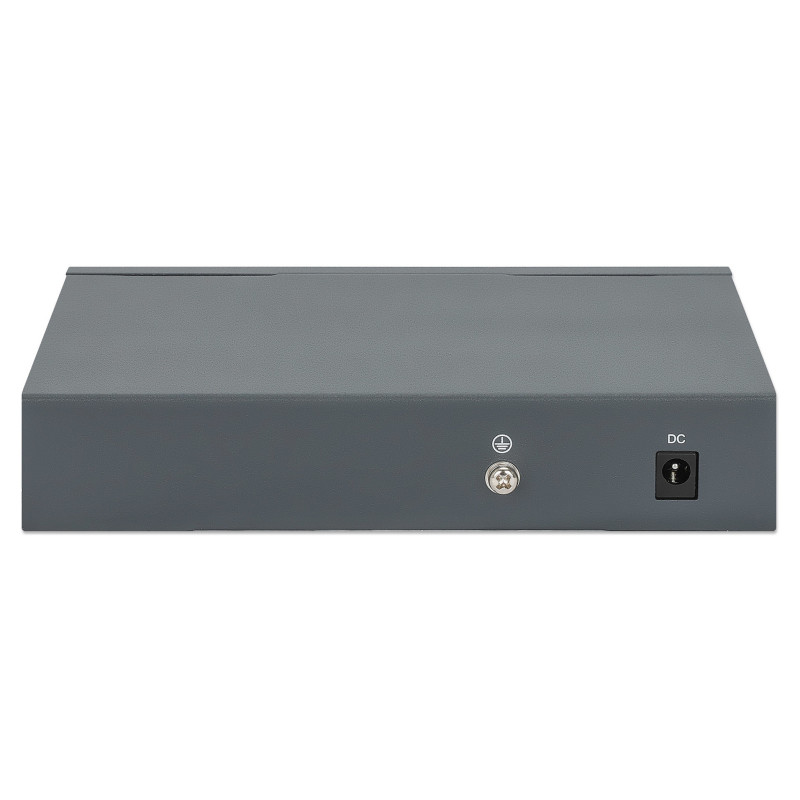

Intellinet 5-Port Gigabit Switch with PoE Passthrough, One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, Four PSE PoE ports, PoE Power Budget up to 65 W, IEEE 802.3at/af Compliant Output, Desktop, Wall-mount Option. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

Get the most out each Power over Ethernet connection with this PoE passthrough switch
The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps.

Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.

Power over Ethernet 802.3bt Compliant
This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device.

The Perfect Workgroup Switch
When you connect the PD port (port 5) to a PoE injector or switch, this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.

Eliminate Bottlenecks with Gigabit Speeds
Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.

Wall-mount option
For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Full duplex
Feature: Flow control support

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 2048 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 1 MB

Design

Housing material: Metal
LED indicators: Activity, Link, PoE, Power
Feature: Wall mountable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 72 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 65 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 168 mm
Depth: 93 mm
Height: 32 mm
Weight: 400 g

Packaging content

Cables included: AC
Feature: Manual

Packaging data

Package weight: 900 g

Certificates

Compliance certificates: CE, RoHS, Federal Communications Commission (FCC)
Certification: FCC Class A, CE, RoHS, UKCA, NDAA
