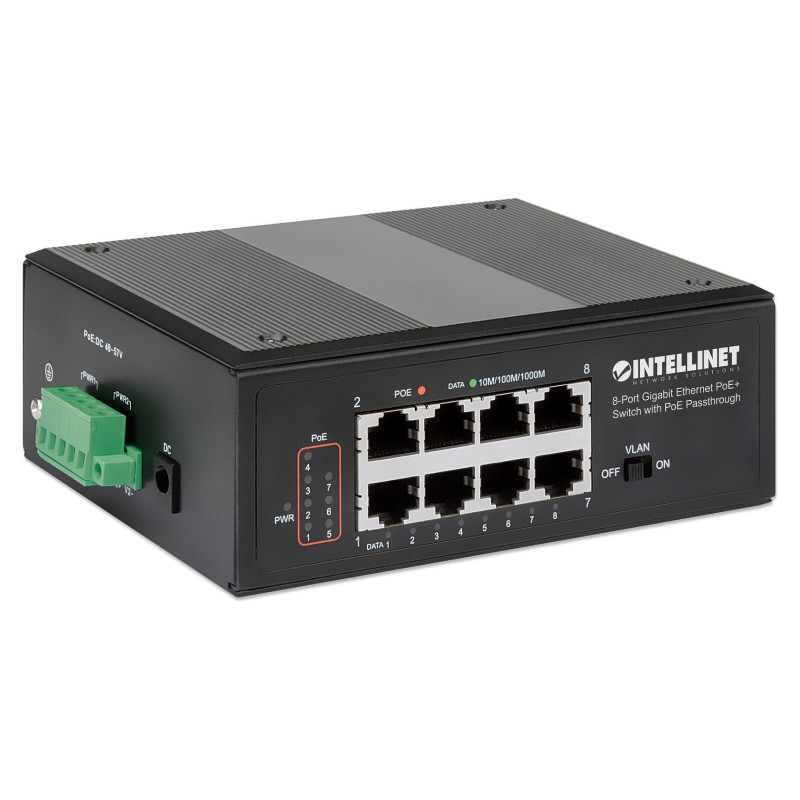

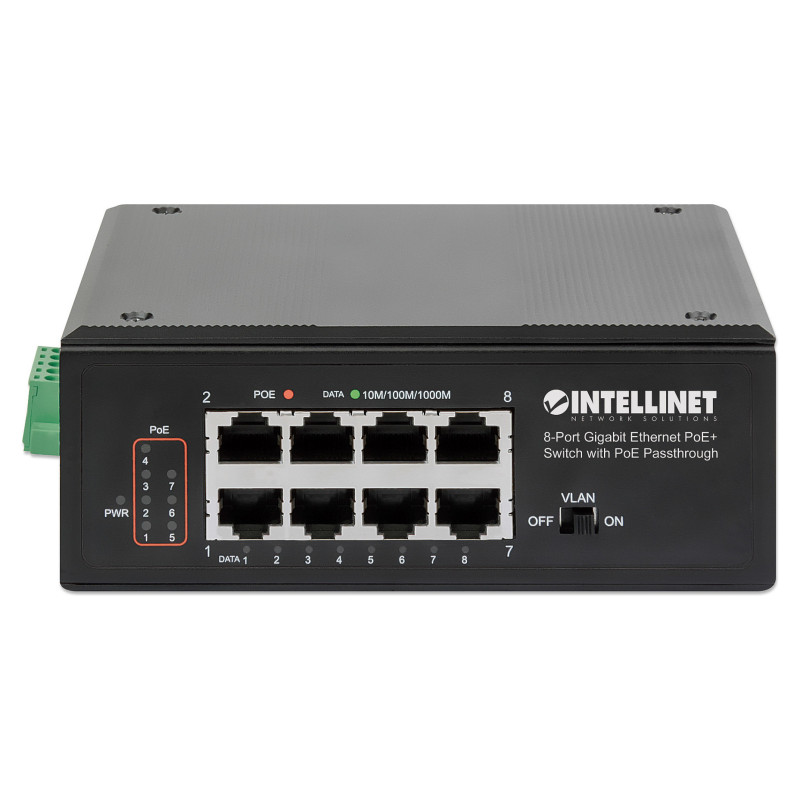

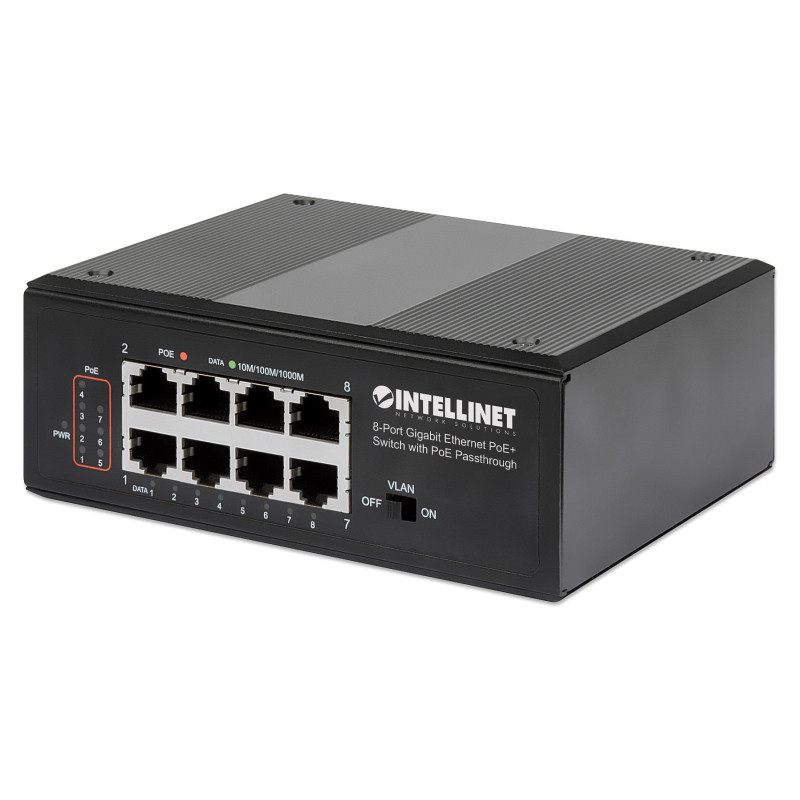

„Intellinet 561624“ tinklo komutatorius

Intellinet 8-Port Gigabit Ethernet PoE+ Industrial Switch with PoE Passthrough, One PD PoE Port with 95 W Power Input, Seven PSE PoE Ports, PoE Power Budget up to 120 W, IEEE 802.3at/af Compliant, DIN-Rail Mount. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)

The PoE Passthrough Industrial Switch — Save installation costs with PoE and get the most out each PoE connection
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to PoE-compatible devices via network cables. Its PD port even supports power input from the latest Ultra PoE sources, easily handling up to 95 W. Equipped with eight Gigabit Ethernet ports, this switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter.

Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls. This Switch can also accept power through a DC power adapter or an industrial power supply, providing up to 120 W to compatible devices.

Ideal for harsh industrial environments
With its rugged, protective metal housing, the switch operates reliably and quietly, even in extreme temperatures from -20 to 75 (-4 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5e
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-sensing
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9200
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps

Design

Product colour: Black
LED indicators: Activity, Link, PoE, Power

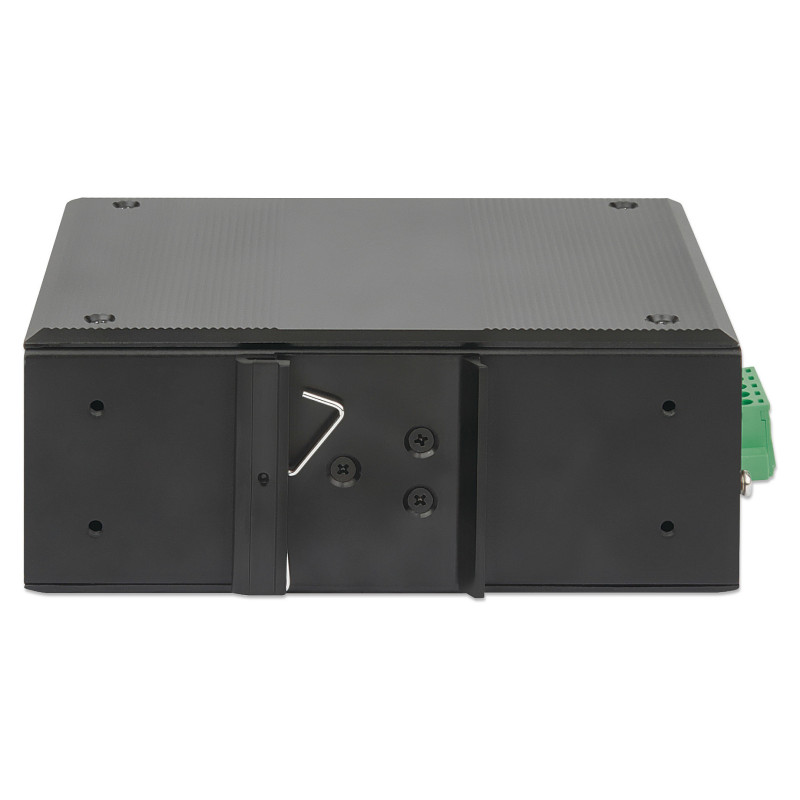

Feature: DIN rail mounting

Performance

Feature: Fanless

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 48 - 57 V

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -20 - 75 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

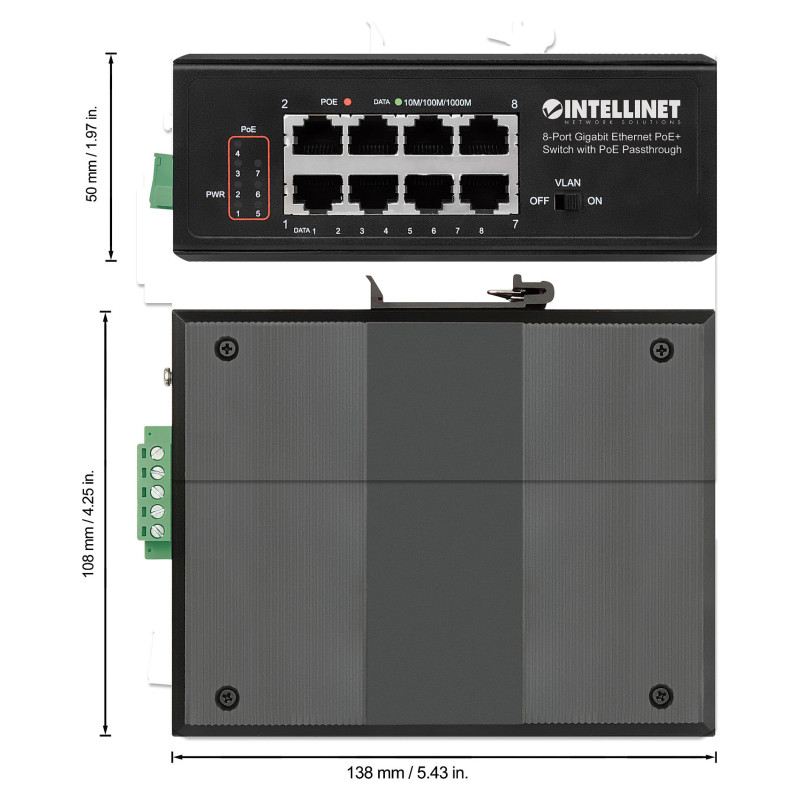

Weight & dimensions

Width: 138 mm
Depth: 108 mm
Height: 50 mm
Weight: 673 g

Packaging content

Feature: User guide

Certificates

Compliance certificates: CE, RoHS, Federal Communications Commission (FCC), UL
Certification: FCC B, CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
